S-type Algorithm - Location Mode (Vector)

4. Force No Search

S-type Algorithm - Location Mode (Vector)

5. Extra Reducer

● Extra reducer omits corners of the search area from inspection that may

be brighter than the leads and results in the leads locating incorrectly.

● This is useful for components with leads on 4 sides, where there are bright

via holes, text or components at the corner of the inspected search area,

which are causing the component to locate incorrectly.

● Units: microns

● Recommended value: 0

S-type Algorithm - Location Mode (Vector)

100

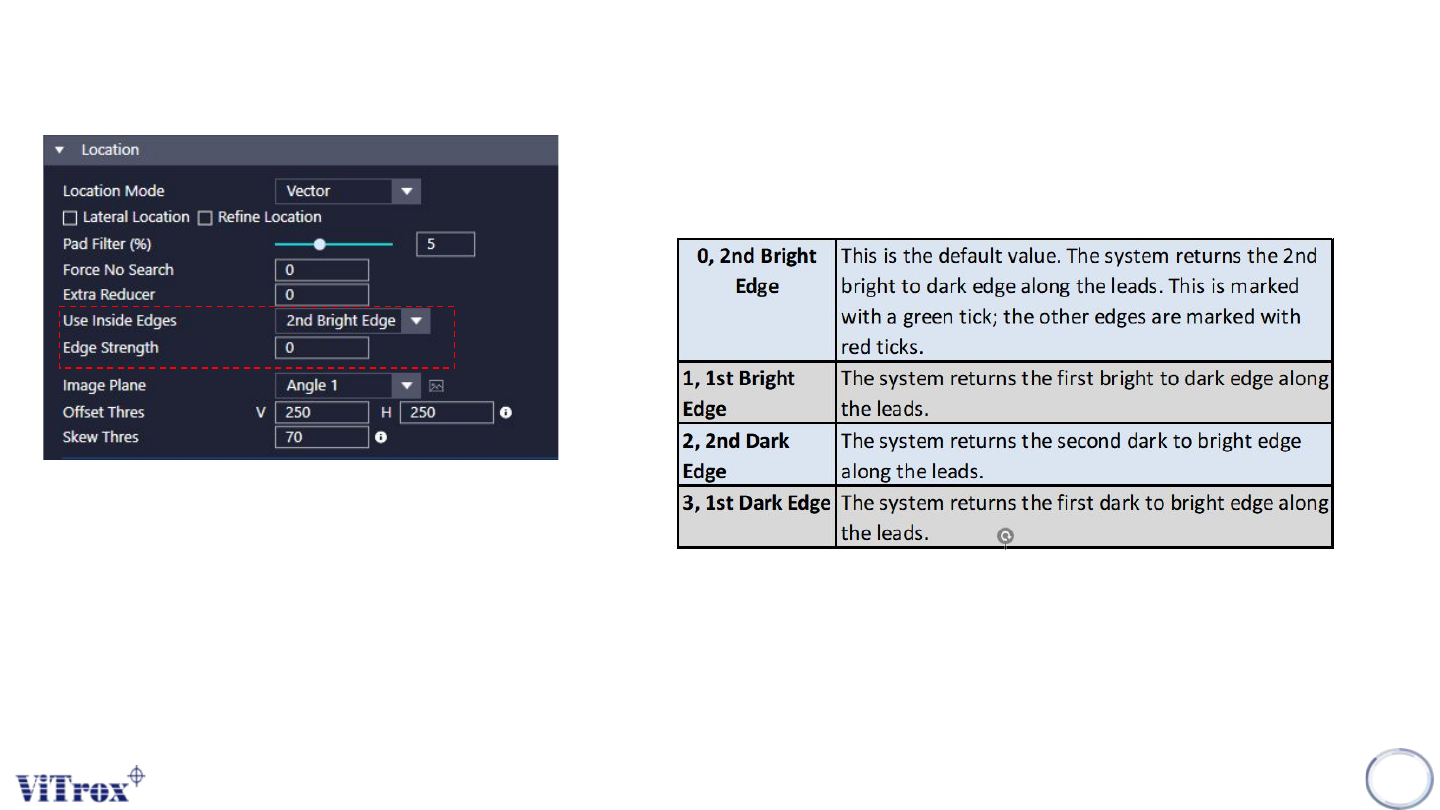

8. Edge Strength

● Parameter changes the strength of transition from bright to dark required

for it to be called an edge. It searches out from the center of a component

for the leads, picking up on the edges. Default value is 0

7. Used Inside Edges

● It searches out from the center of a component for the leads, picking up

on the edges.
