Copyright © ViT rox All Rights Reserved . 86 B-type Algorithm - Foreign Material 4. Size Thres (um) ● Minimum length and width to detect the foreign material. 5. Mask Width Expand (um) & Mask Length Expand (um) ● T o…

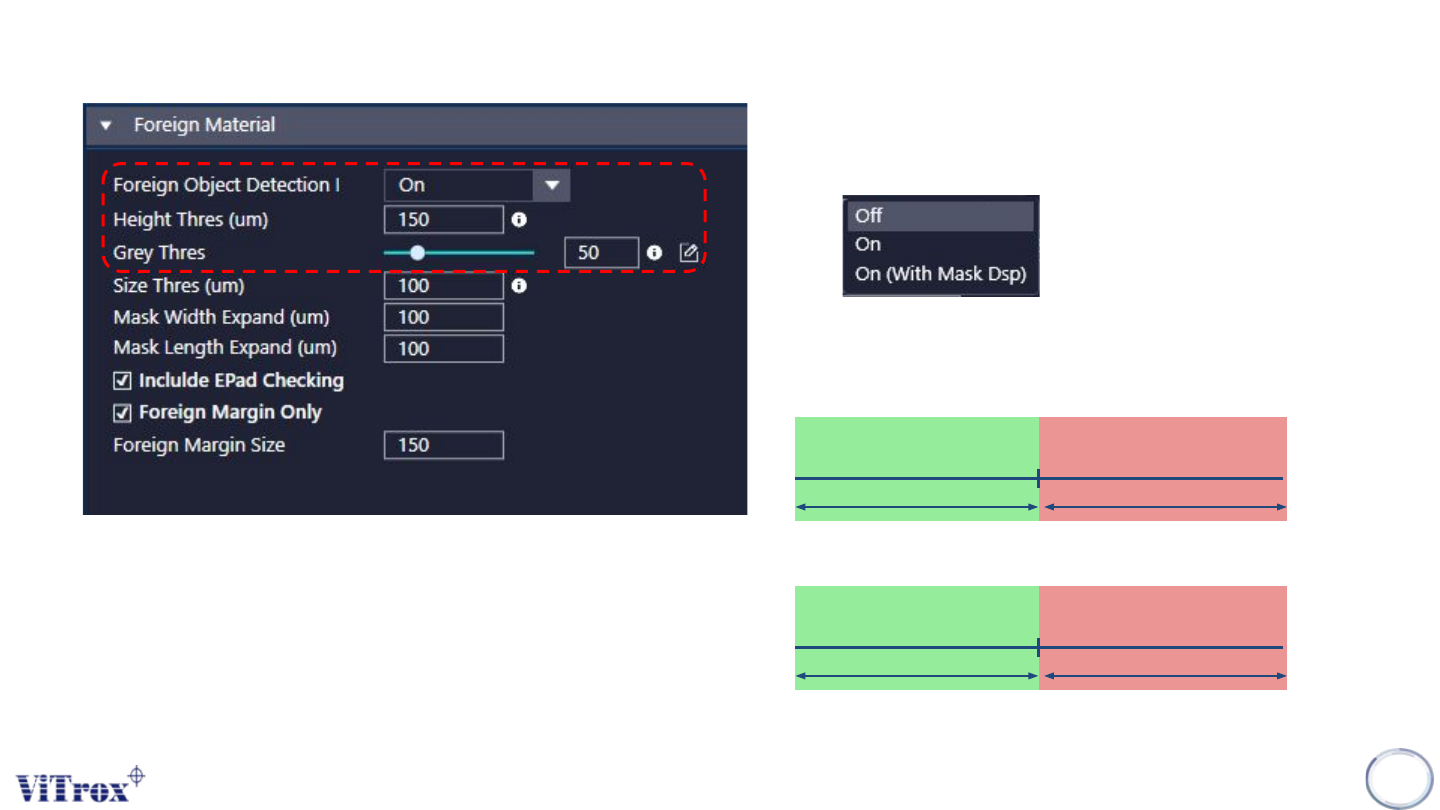

B-type Algorithm - Foreign Material

1. Foreign Object Detection

● 3 modes as follows:

● On & On (with mask Display) having the same inspection results.

2. Height Thres (um)

3. Grey Thres

3D Height Thres

Pass Fail

Grey Thres

Pass Fail

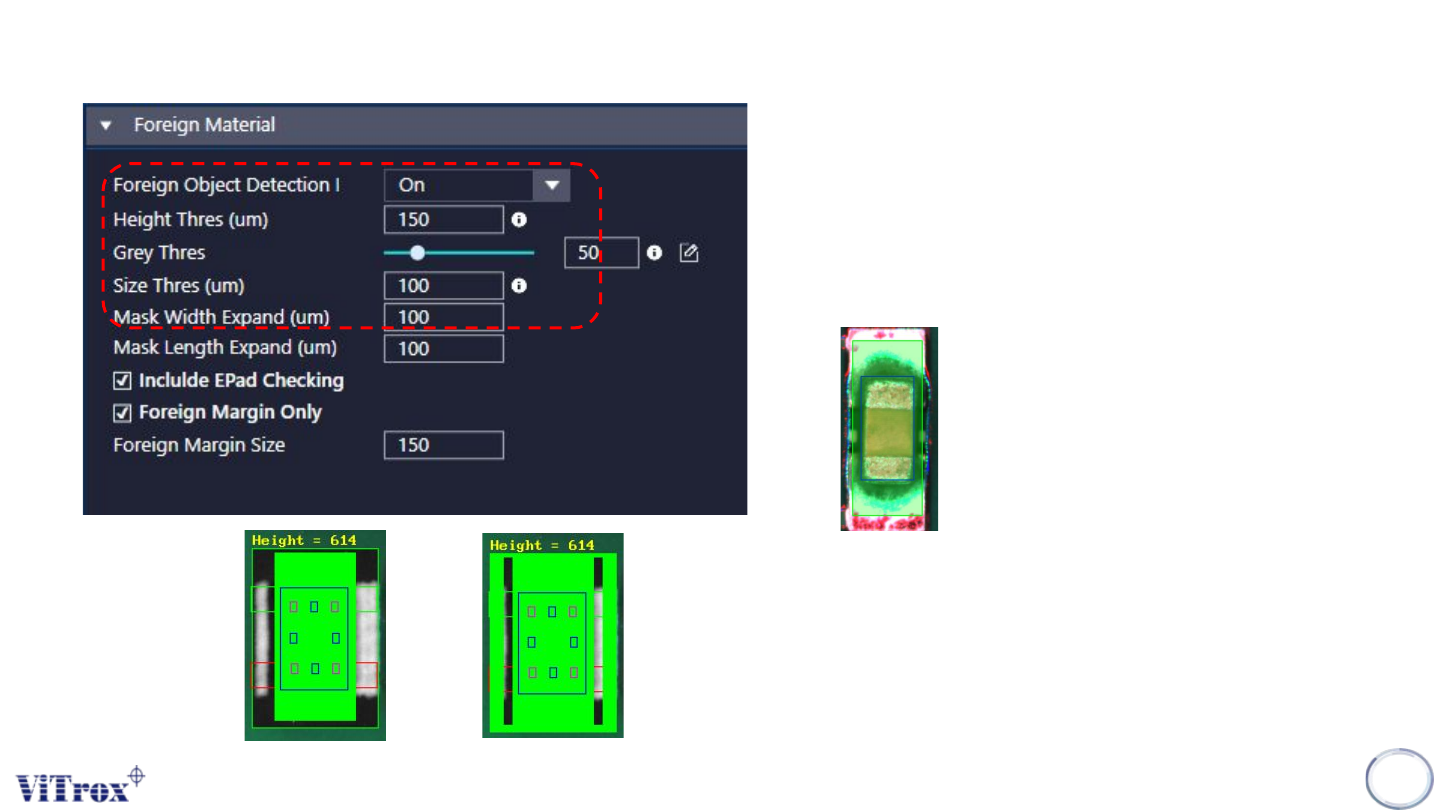

B-type Algorithm - Foreign Material

4. Size Thres (um)

● Minimum length and width to detect the foreign material.

5. Mask Width Expand (um) & Mask Length Expand (um)

● To adjust the mask area size.

● Mask area = Area without inspection

● The green box is the masking area.

6. Include EPad Checking

● Tick this if you have the *.epad file in C:\cpi\cad

7. Foreign Margin Only & Foreign Margin Size

● Mask component body at CAD position & actual position (with

offset x, y and skew)

● Mask pads with slightly extension

● Dilate the masking to another buffer. Mask all the pixels that are

not in dilated masking.

● To cater nearby component which included in search area

Without Foreign Margin Enable Foreign Margin

Polarity Inspection

*Refer Common Algorithm in CR, B, S, U Algorithm
