U-type Joint- Diff Joint

181

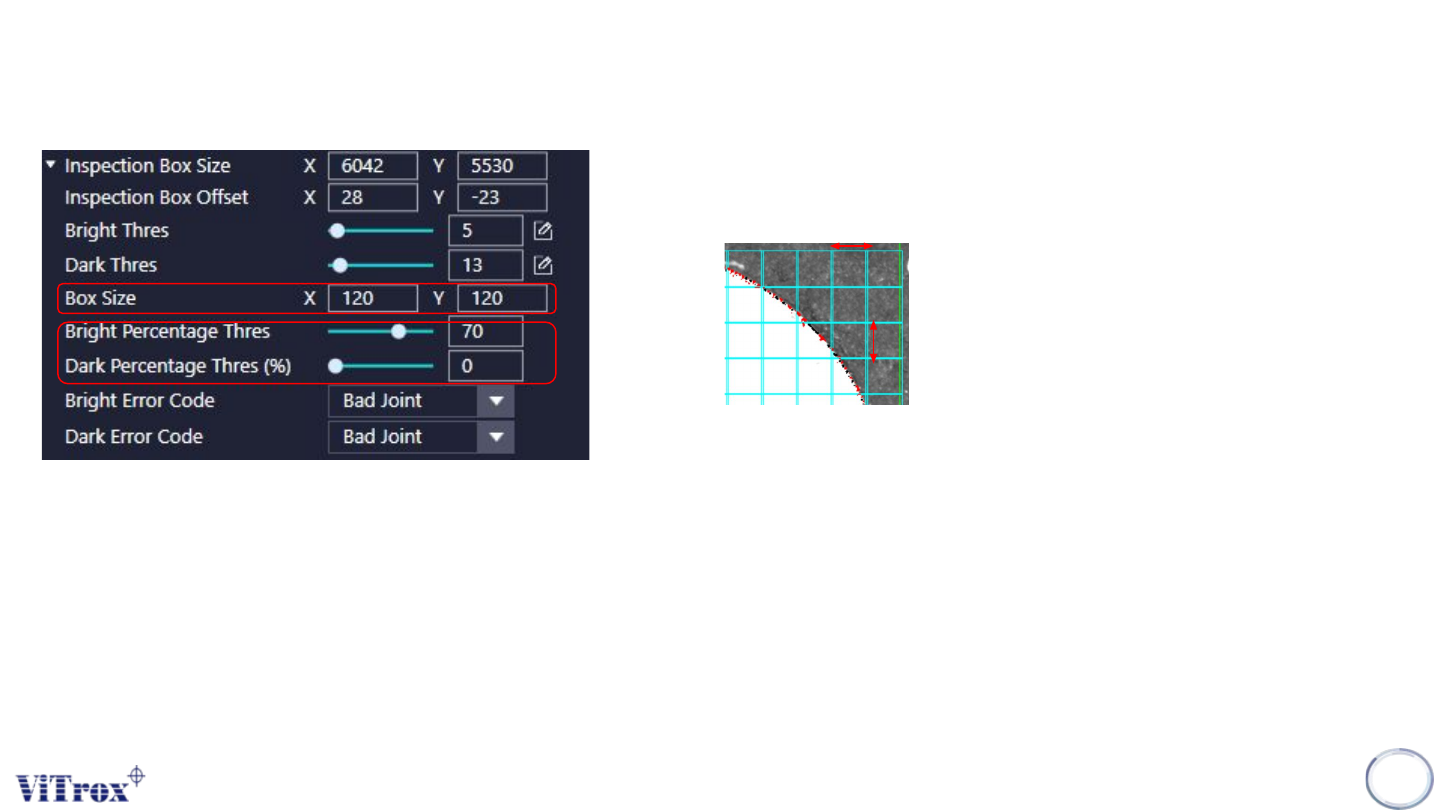

Mode: Inspect Box

1. Box Size X & Box Size Y

● To adjust the size for the auto partitioned joint box

2. Bright Percentage Thres & Dark Percentage Thres

● Box coverage percentage (Within the partition boxes) for bright defect

& dark defect.

*The others parameters same as Inspect Dot Mode.

U-type Joint- Diff Joint

182

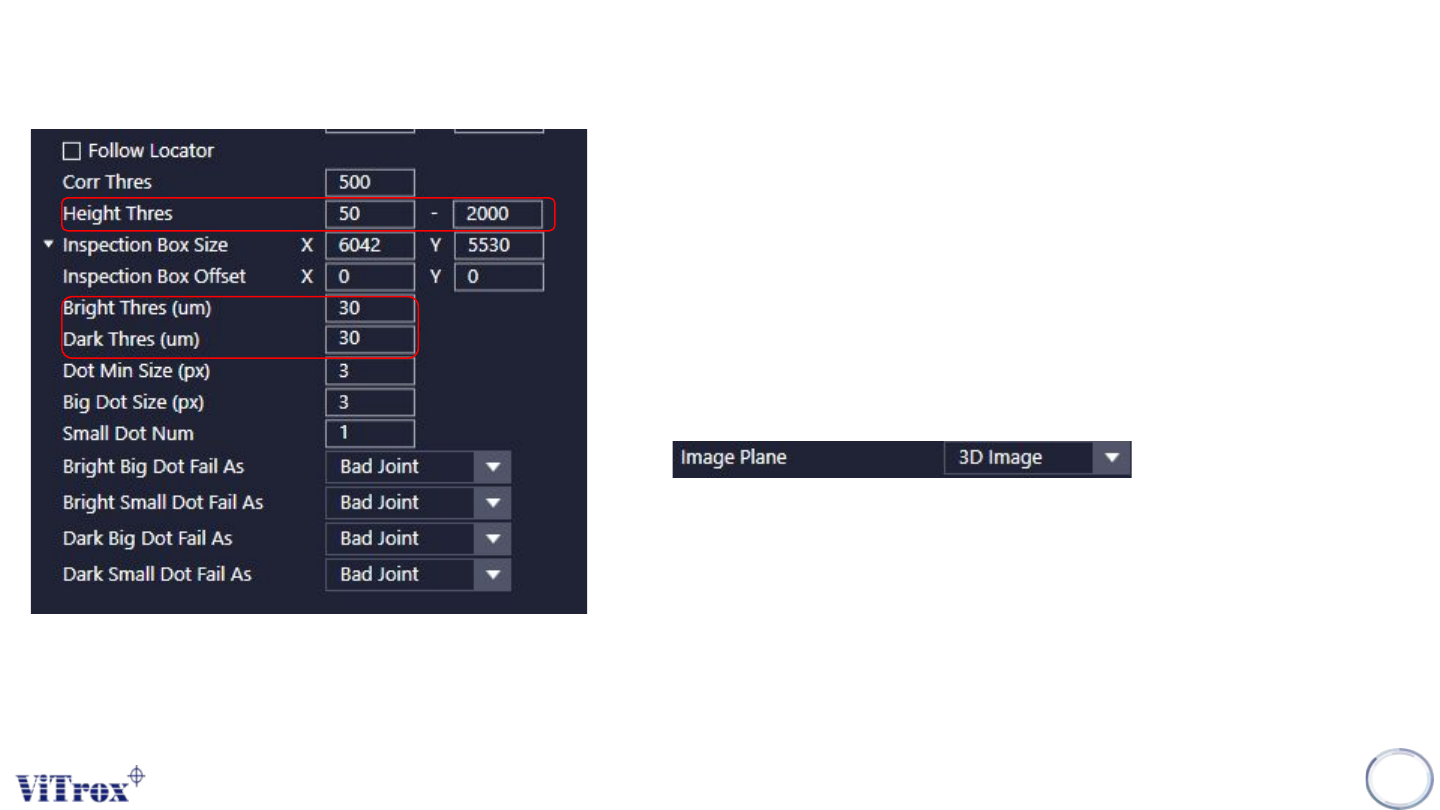

Mode: Inspect 3D

1. Height Thres

● Adjust the height range to be defined as defects.

2. Bright Thres & Dark Thres

● Unit: um

● Bright - Higher

● Dark - Lower

*Image Plane must select 3D Image

*The others parameters same as Inspect Dot Mode.

U-type Joint- Diff Joint

183

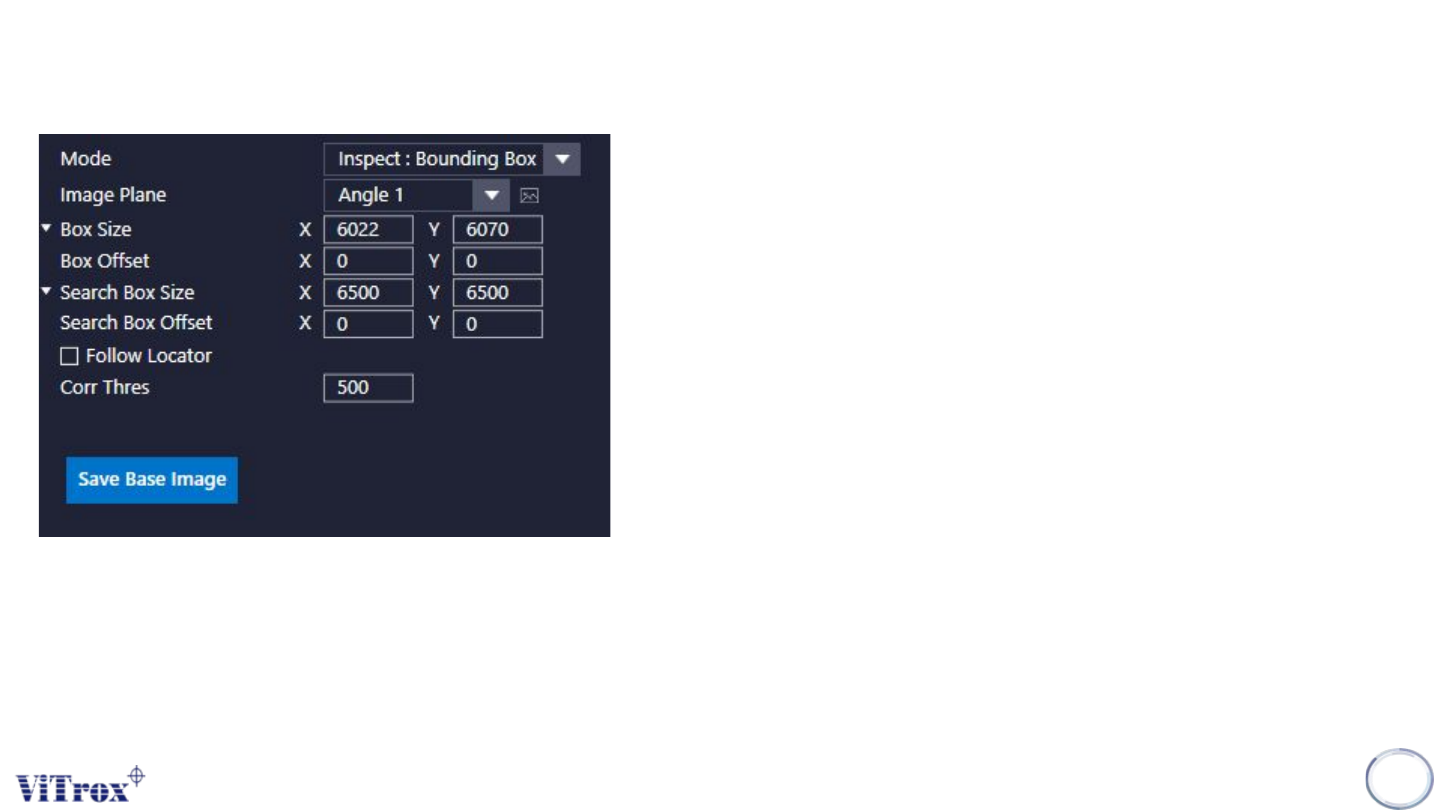

Mode: Inspect Bounding Box

*The others parameters same as Inspect Dot Mode.
