CR-type Algorithm - Joint (Solder Profile Inspection)
1. Solder Profile Inspection consists of 2 main function as below:
• Fillet Solder: To inspect insufficient solder

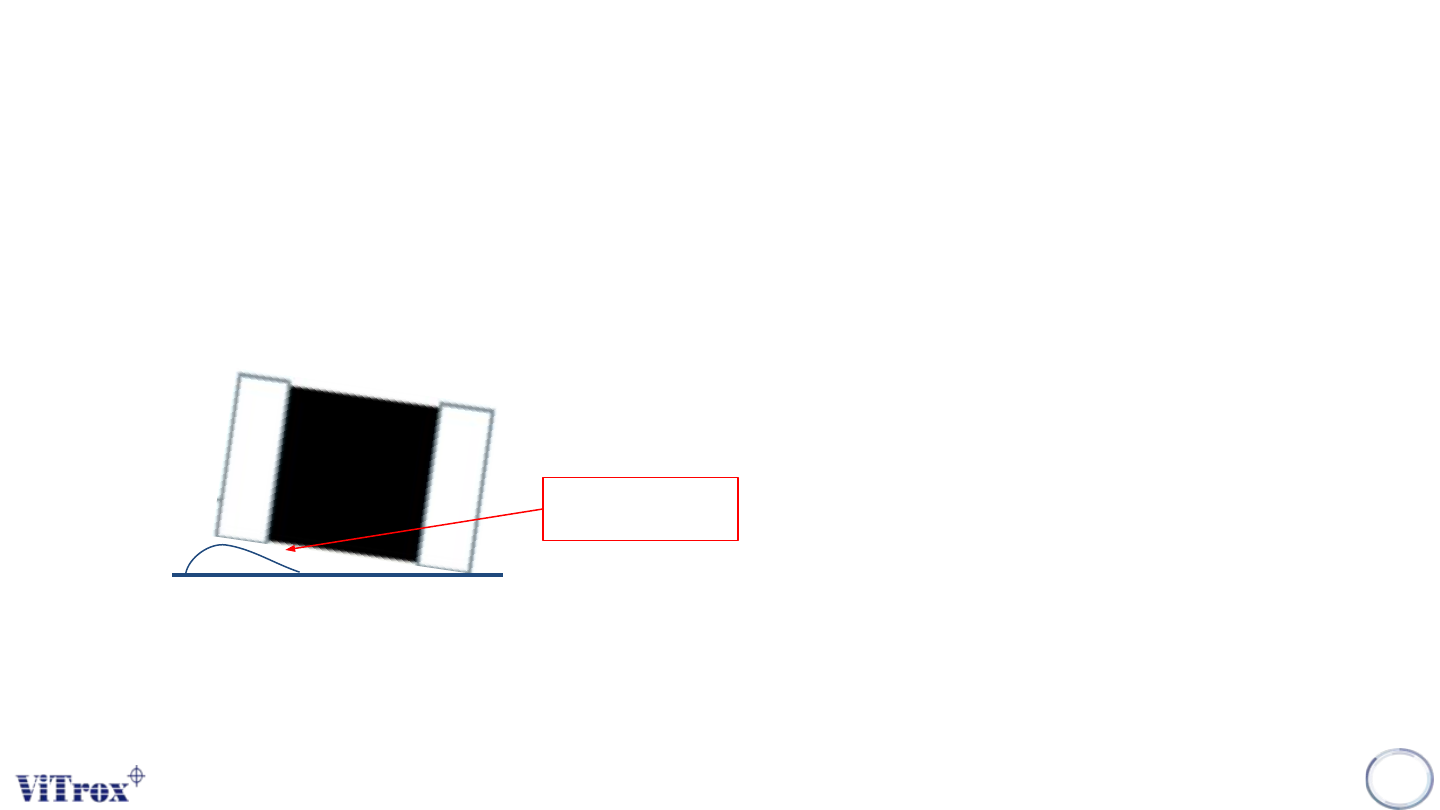

• Solder Profile: To detect cold solder
32
Cold Solder
Copyright © ViTrox All Rights Reserved.
33

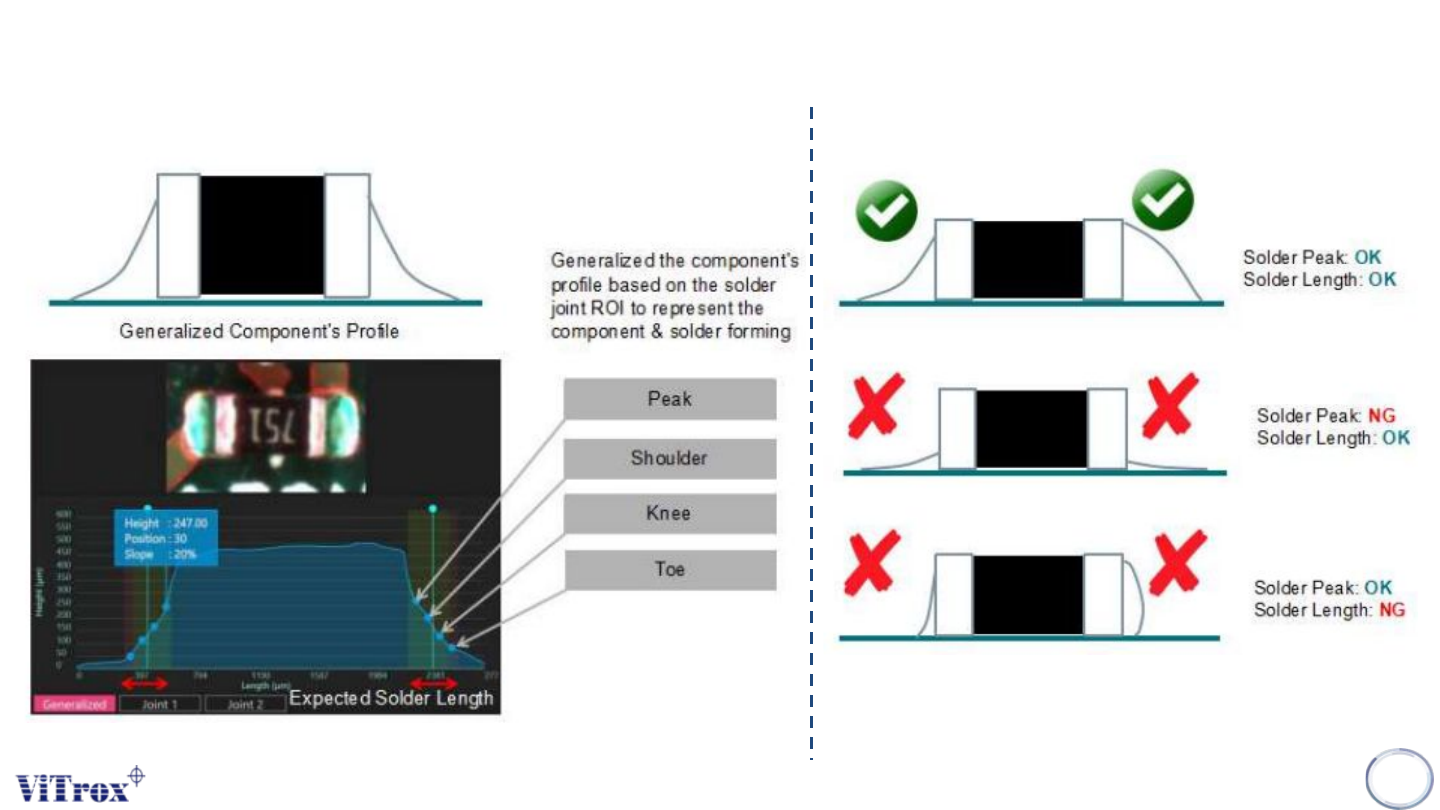

CR Type Algorithm - Joint (Solder Profile Inspection)
Copyright © ViTrox All Rights Reserved.
34
Solder Profile Qualification (um)

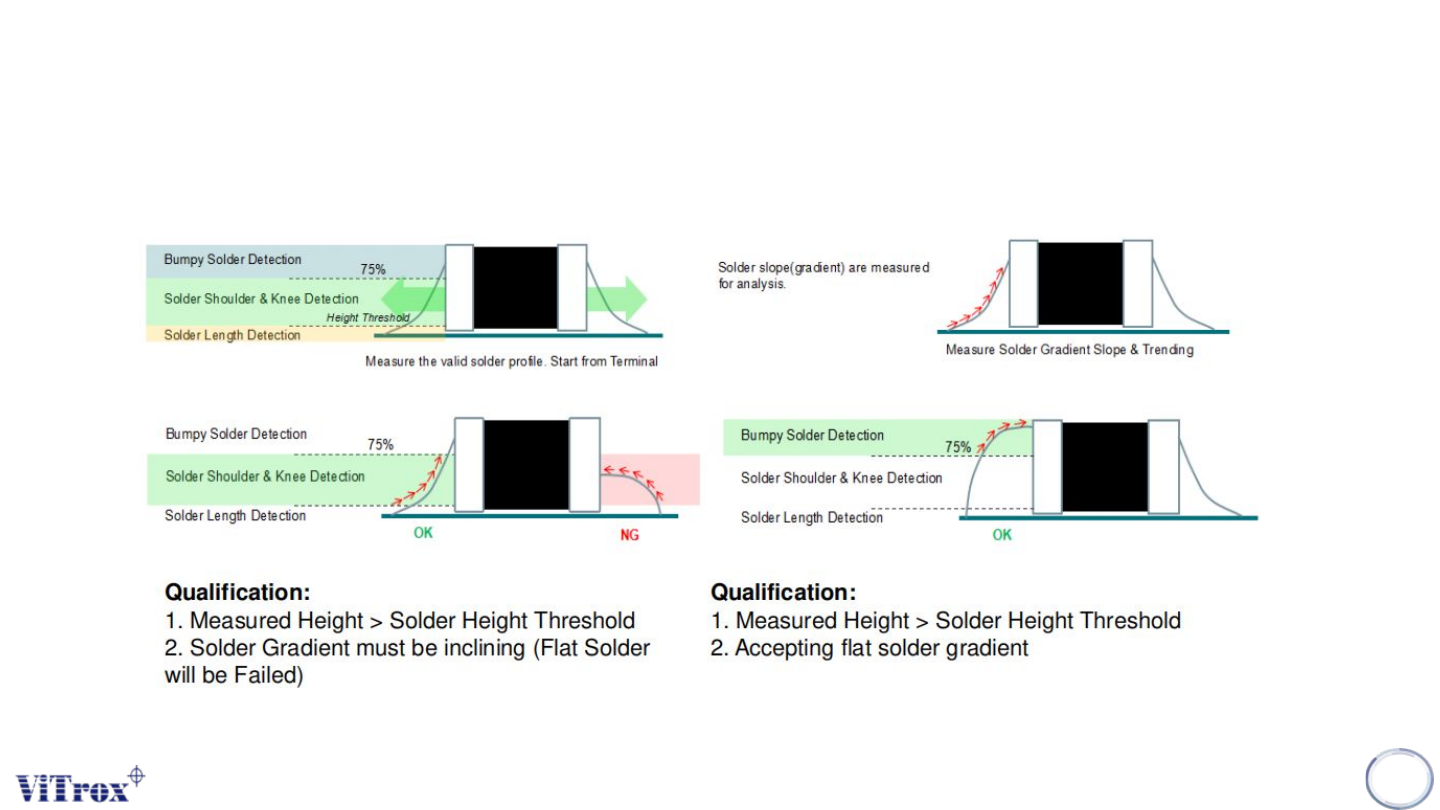

● Solder Profile analysis are segmented according to height with different criteria & qualifications.
CR Type Algorithm - Joint (Solder Profile Inspection)
