Copyright © ViT rox All Rights Reserved . B-type Algorithm - Joint 67 9. Lifted Lead Threshold (um) & Missing Lead Threshold (um) Reference Lead Height Lead Height - Missing Lead Thres Lead Height + Lifted Lead Thres…

B-type Algorithm - Joint

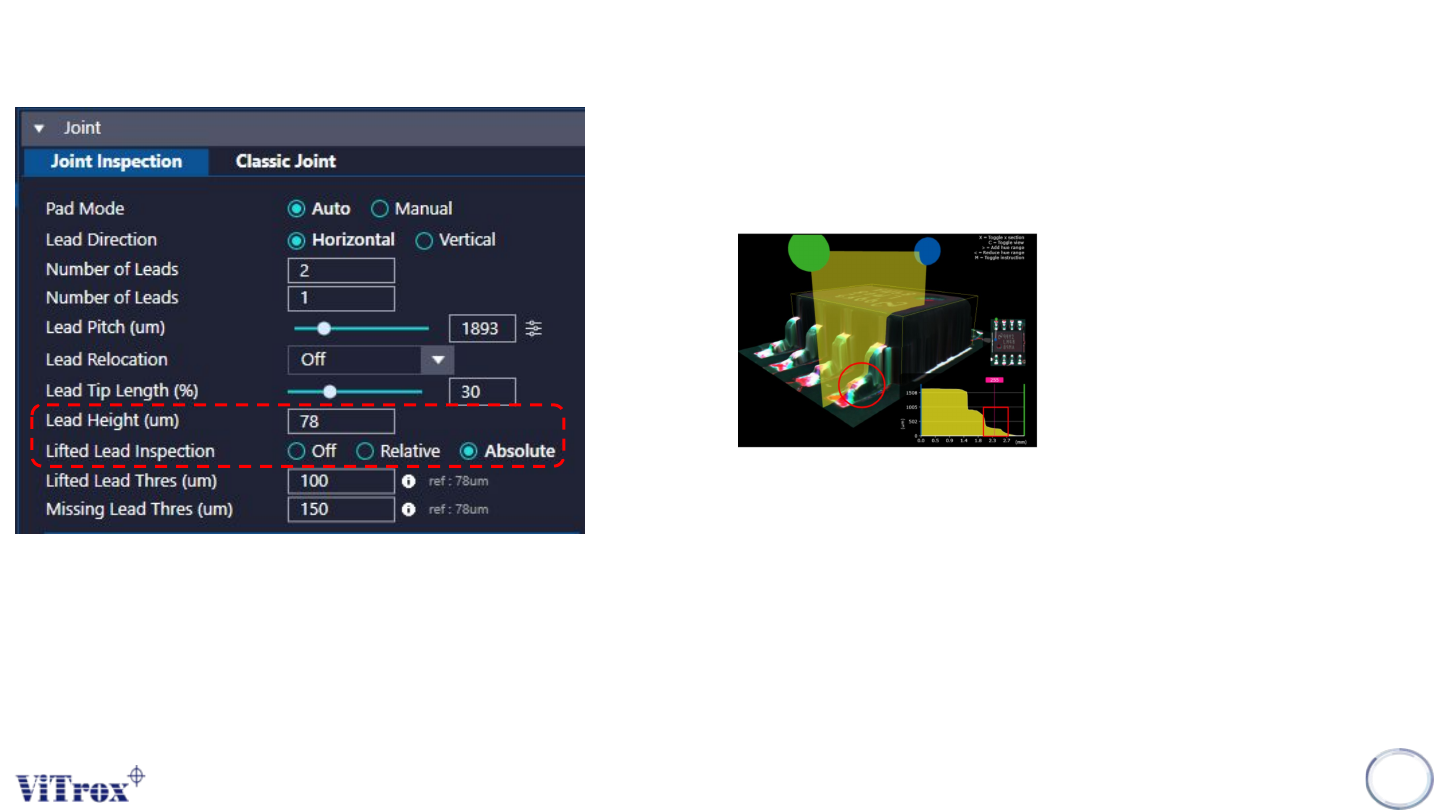

7. Lead Height (um)

● To pre set the height for the lead.

● Need to use this value during lifted lead inspection.

8. Lifted Lead Inspection

● Relative - Software will calculate the average height for each

lead and used it as the reference height for lifted lead

inspection.

● Absolute - Lead Height (um) that we keyin will be used as the

reference height for lifted lead inspection.

B-type Algorithm - Joint

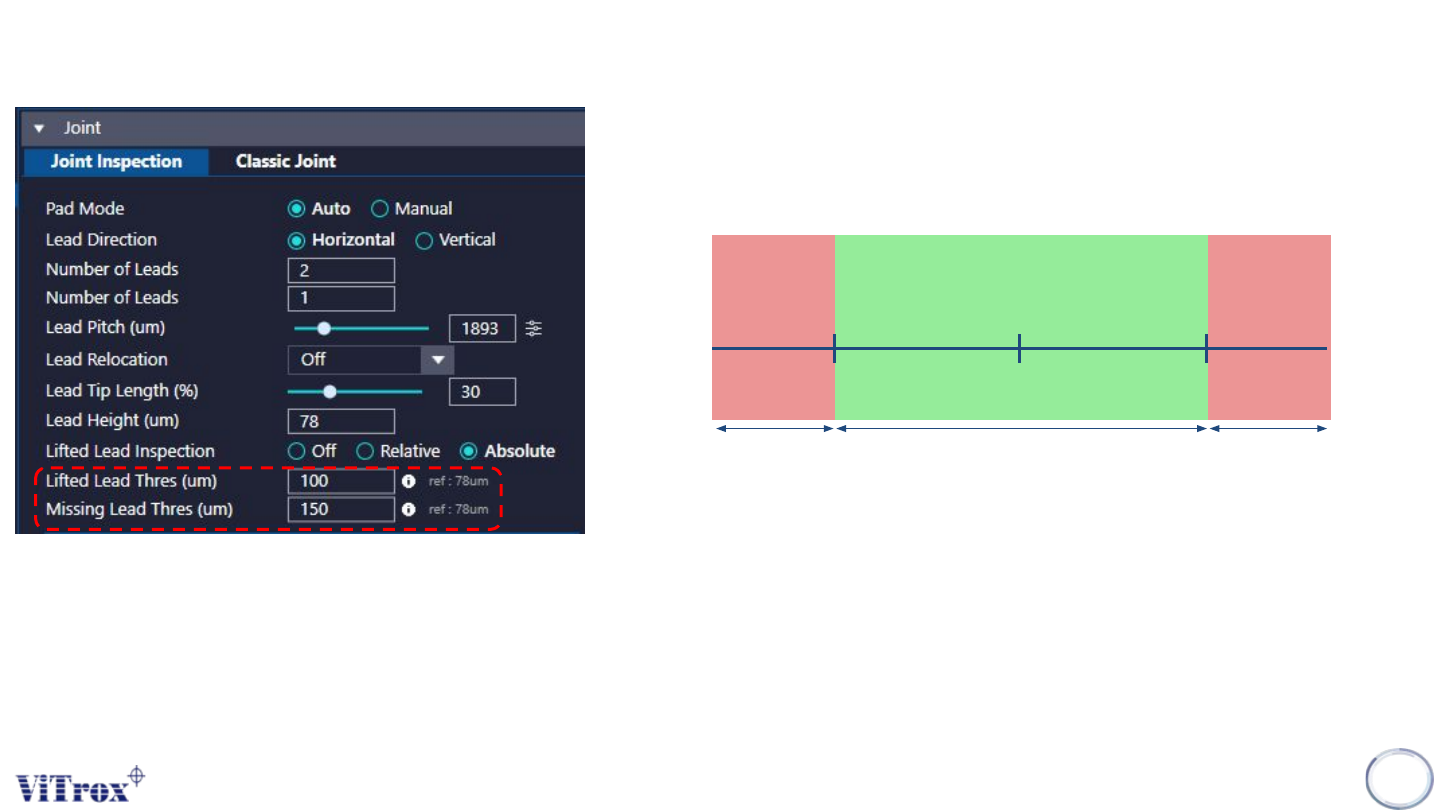

9. Lifted Lead Threshold (um) & Missing Lead Threshold (um)

Reference

Lead Height

Missing Lead

Thres

Lead Height

Lifted Lead

Thres

Pass

Fail

(Lifted Lead)

Fail

(Missing Lead)

B-type Algorithm - Joint

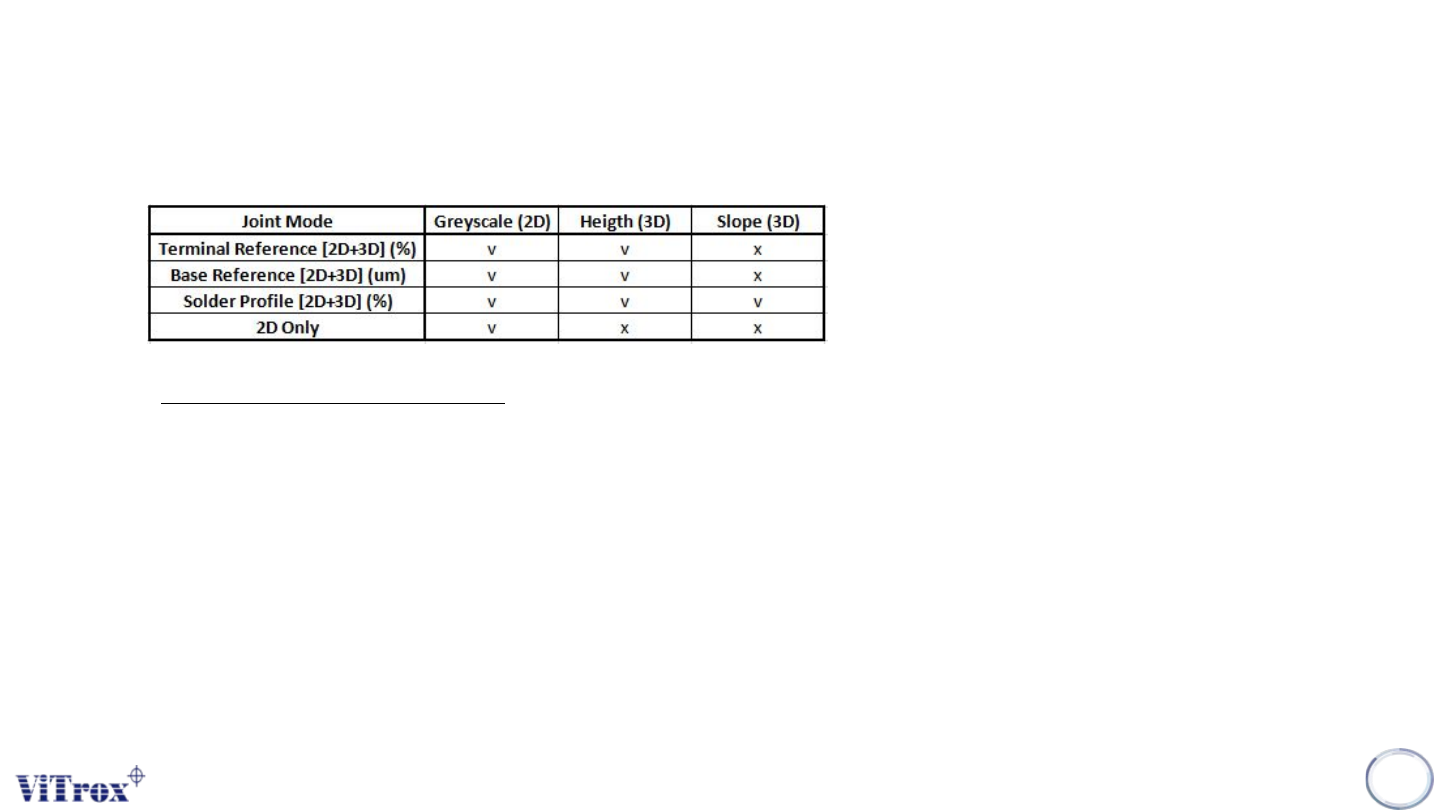

1. Solder Inspection

● Solder Inspection consists of 3 mode. Which are:

Difference between Terminal & Base

Terminal Reference:

Solder height qualification is based on the height (%) between lead

terminal & PCB surface

Base Reference:

Solder height qualification is based on the height (um) measured from

PCB surface.
