B-type Algorithm - Locator (Location)

a. 3D Locator

● Able to select 3D only or 3D & 2D to locate.

● There are a few of choices as follow:

b. Custom Location.

● Able to adjust ruler size and ruler distance

Ruler

Ruler Size

Ruler Distance

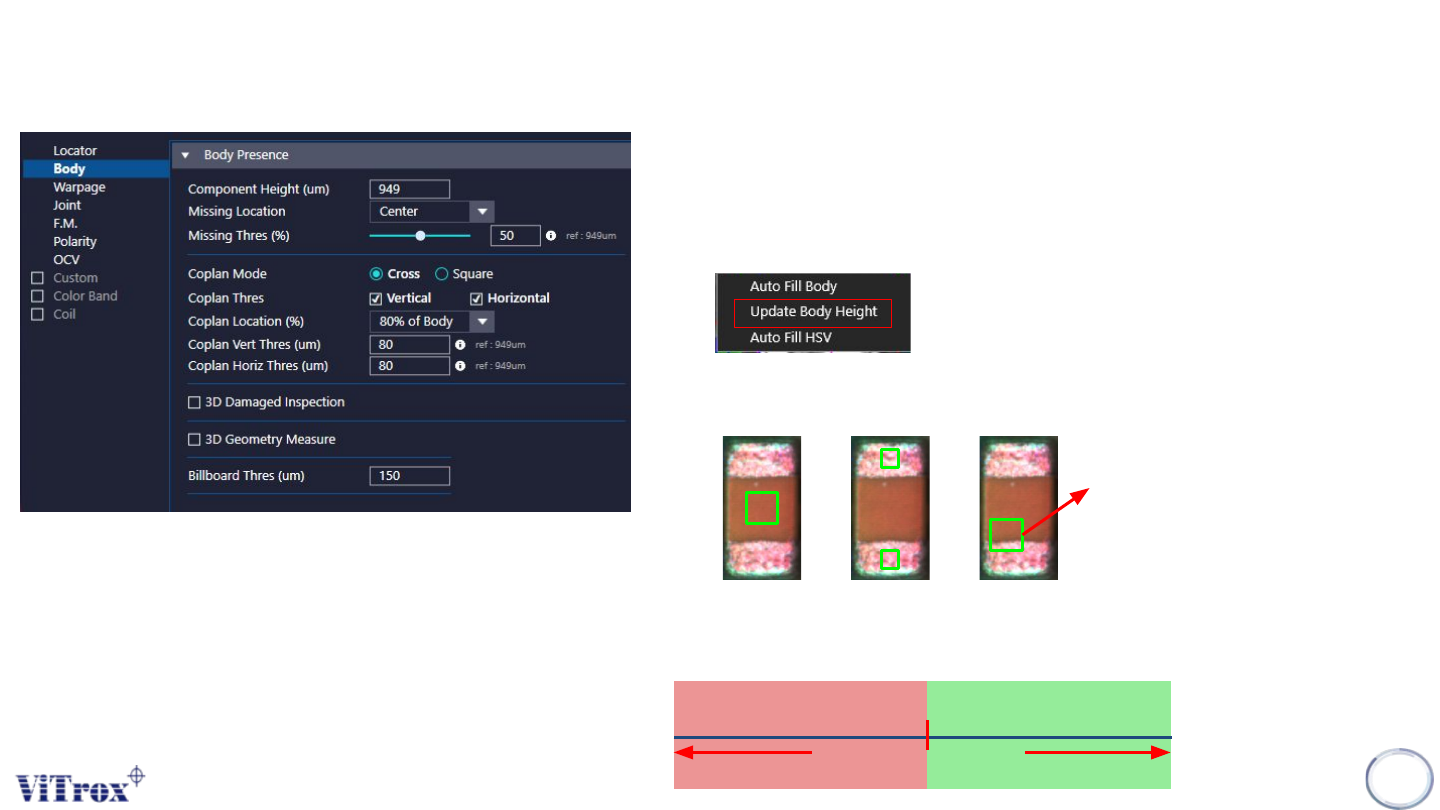

Body Inspection Algorithm

B-type Algorithm - Body

a. Component Height

● To set a reference height for the component.

● Any body defects inspection will based on this reference to

made the calculation.

● User can obtain the component by “3D mode” or right click on

the component body and select update body height.

b. Missing Location

● To select the location to inspect missing defect.

Center Terminal Custom

Can set the region.

c. Missing Threshold

Missing Thres (um)

Measured Height (um)

FAIL PASS
