Fiducial Editor

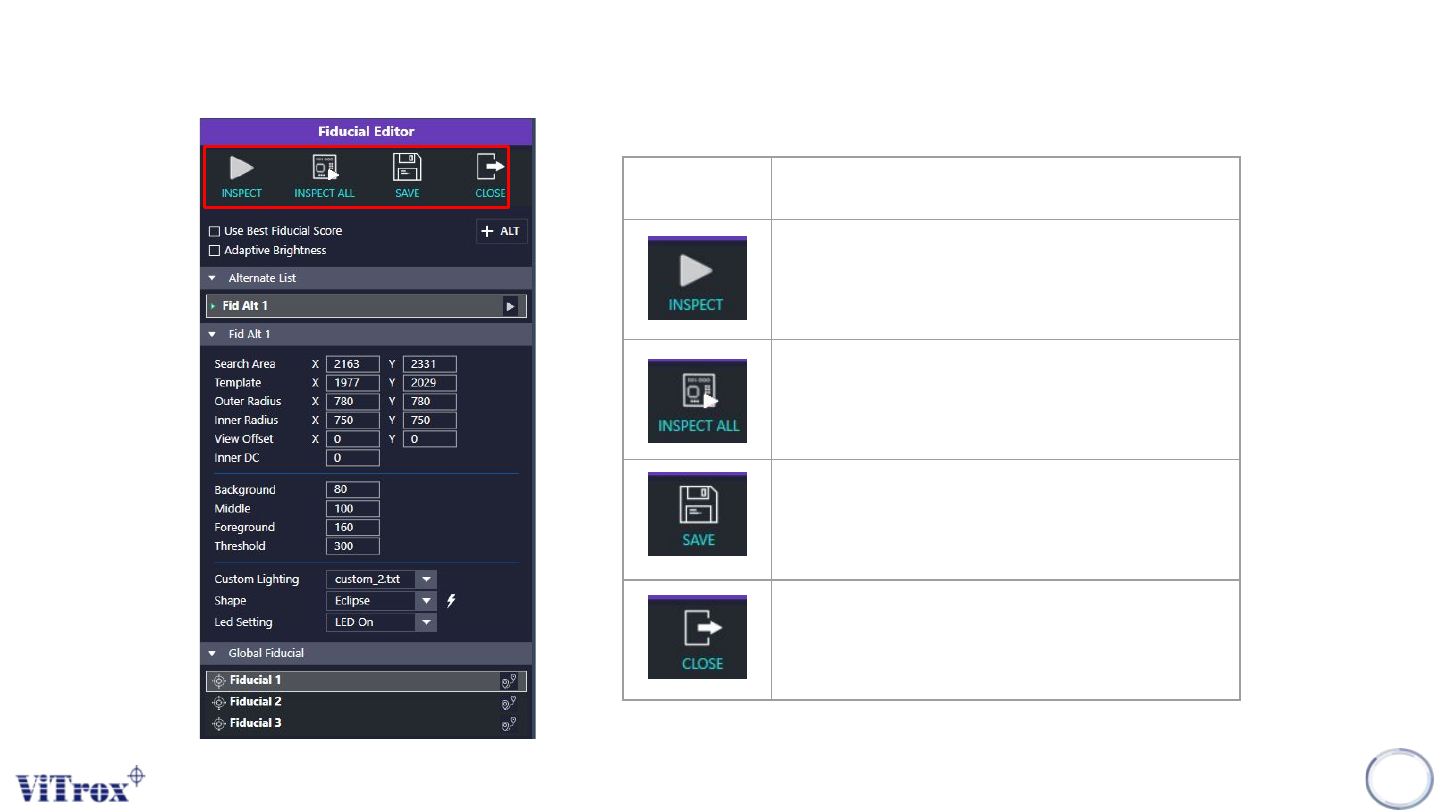

Icon Description
To inspect the current fiducial.
To inspect all the fiducial.
To save the fiducial settings
To exit the fiducial editor page
Copyright © ViTrox All Rights Reserved.
Fiducial Editor
299
1. Use Best Fiducial Score
● Software will take the fiducial with highest score as
reference.
● Applicable when user set alternate fiducials.
2. Adaptive Brightness
● Tick this when software is not able to locate the fiducials
properly.
● Enable the “Adaptive Brightness” might increase the cycle
time.
3. + ALT
● Press on this icon to set alternative fiducial.
● The alternative fiducial can be observed at the alternate list.
Copyright © ViTrox All Rights Reserved.
Fiducial Editor
300
User can adjust the sizes, greyscale and threshold for the
fiducial accordingly based on the figure above.
