Copyright © ViTrox All Rights Reserved.
U-type Algorithm - 3D Multijoint
215

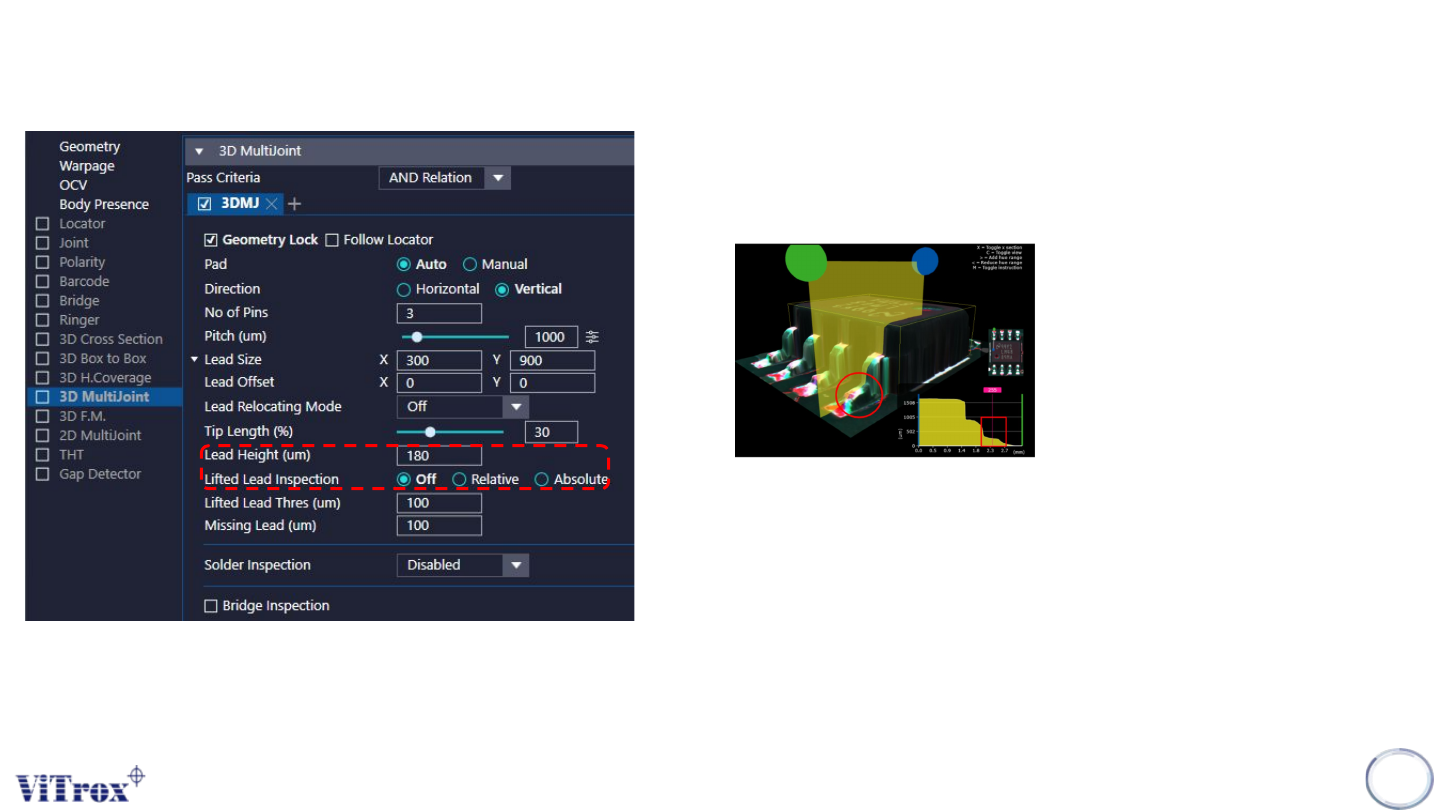

a. Lead Height (um)
● Lead relocation is used to relocate the lead by using lead box
after locate body successfully.
● This feature will increase cycle time
b. Lifted Lead Inspection
● Relative - Software will calculate the average height for each
lead and used it as the reference height for lifted lead
inspection.
● Absolute - Lead Height (um) that we keyin will be used as the
reference height for lifted lead inspection.
Copyright © ViTrox All Rights Reserved.
U-type Algorithm - 3D Multijoint
216

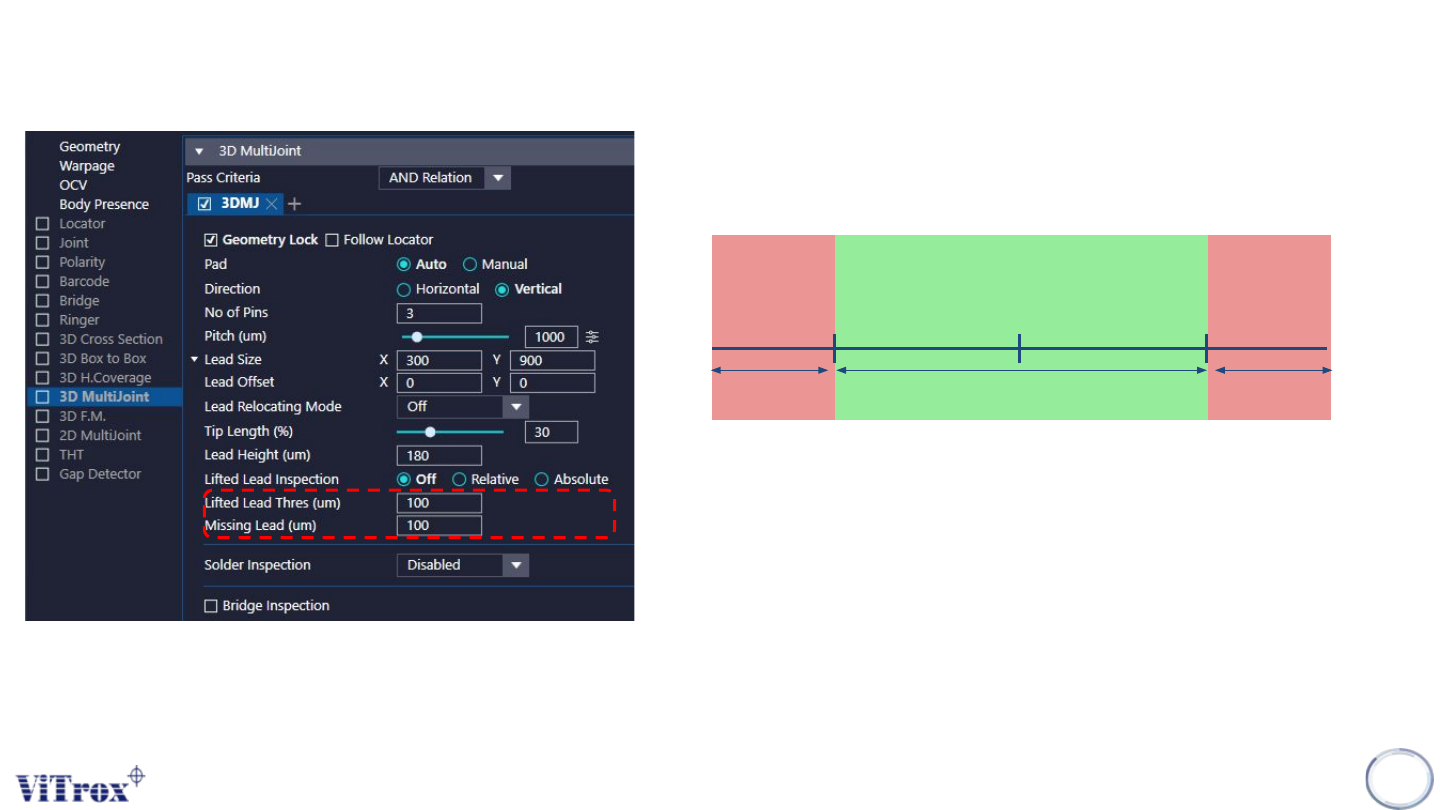

a. Lifted Lead Threshold (um) & Missing Lead Threshold (um)
Lead Height
Measured
Lead Height
-
Missing Lead
Thres
Lead Height
+
Lifted Lead
Thres
Pass
Fail
(Lifted Lead)
Fail
(Missing Lead)
Copyright © ViTrox All Rights Reserved.
U-type Algorithm - 3D Multijoint
217
1. Solder Inspection
● Solder Inspection consists of 3 mode. Which are:
Terminal Reference: Solder height qualification are based on the
height (%) between lead terminal & PCB surface
Base Reference: Solder height qualification are based on the height
(um) measured from PCB surface
