Copyright © ViT rox All Rights Reserved . 282 W arpage Compensation Algorithm (Help on 3D Construction)
Copyright © ViTrox All Rights Reserved.
OCV Inspection
281
Specific Error Code
● Specific Error Code is used to set defect name when this OCV fail.
● The specific error code will set to Off which are OCV fail as default.
● There are 4 types of specific error codes:
➔ Off
➔ Missing
➔ Polarity
➔ Extra Part
Copyright © ViTrox All Rights Reserved.
282
Warpage Compensation Algorithm
(Help on 3D Construction)
Copyright © ViTrox All Rights Reserved.
283

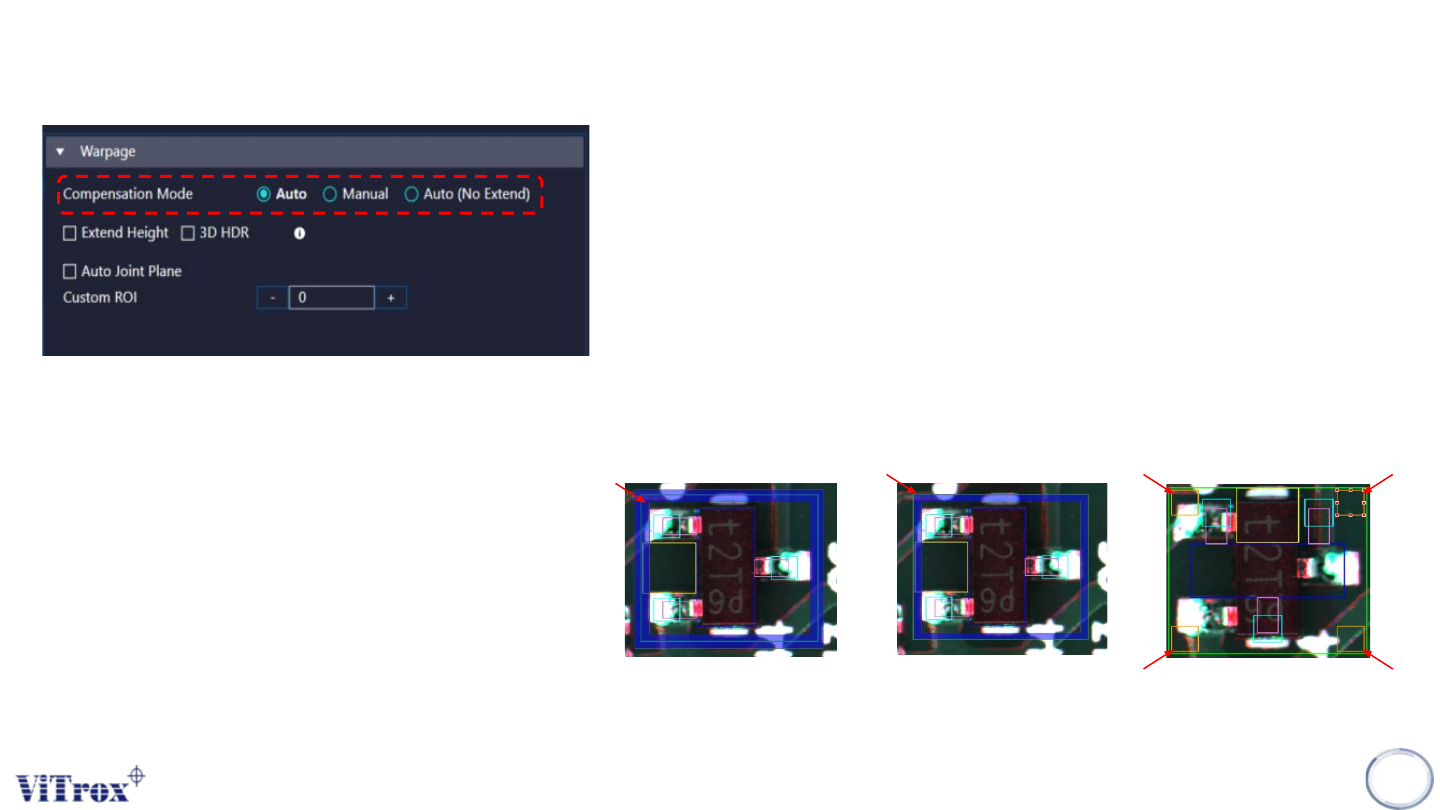

1. Warpage Compensation Mode
● Compensate the 3D height if there is an obvious board warpage
happen.
● The difference for this 3 modes is the region to select the
reference board heights. Refer to pictures below for the
region
● Multiple points are automatically selected from the region as
reference board height. Standard deviation of heights is
calculated to filter outlier points with abnormal height. This
procedure ensures accuracy of auto warpage compensation
even there are components fall inside blue region.
Auto Auto
(No Extend)
Manual
Warpage
