Copyright © ViT rox All Rights Reserved . 244 1. Edge Selection ● Can adjust to detect either first edge or max edge. ● Software will detection from inner to outer direction. ● Refer to the picture below for the explanat…

243

1. Geometry Lock

● To enable the box offset into symmetric direction only.

2. Follow Locator

● Follows locator is used to follow the body locator and lead

relocation feature.

3. Box Size X & Box Size Y

● To adjust the inspection boxes for gap detector.

4. Box Offset

● To adjust the offset location for the inspection boxes.

5. Direction

● To adjust the direction of inspection boxes either in horizontal or

vertical direction.

● For vertical, Red box must located on top. (as below)

● For horizontal, Red box must located on Left.(as below)

Horizontal

Vertical

U-type Algorithm Gap Detector

244

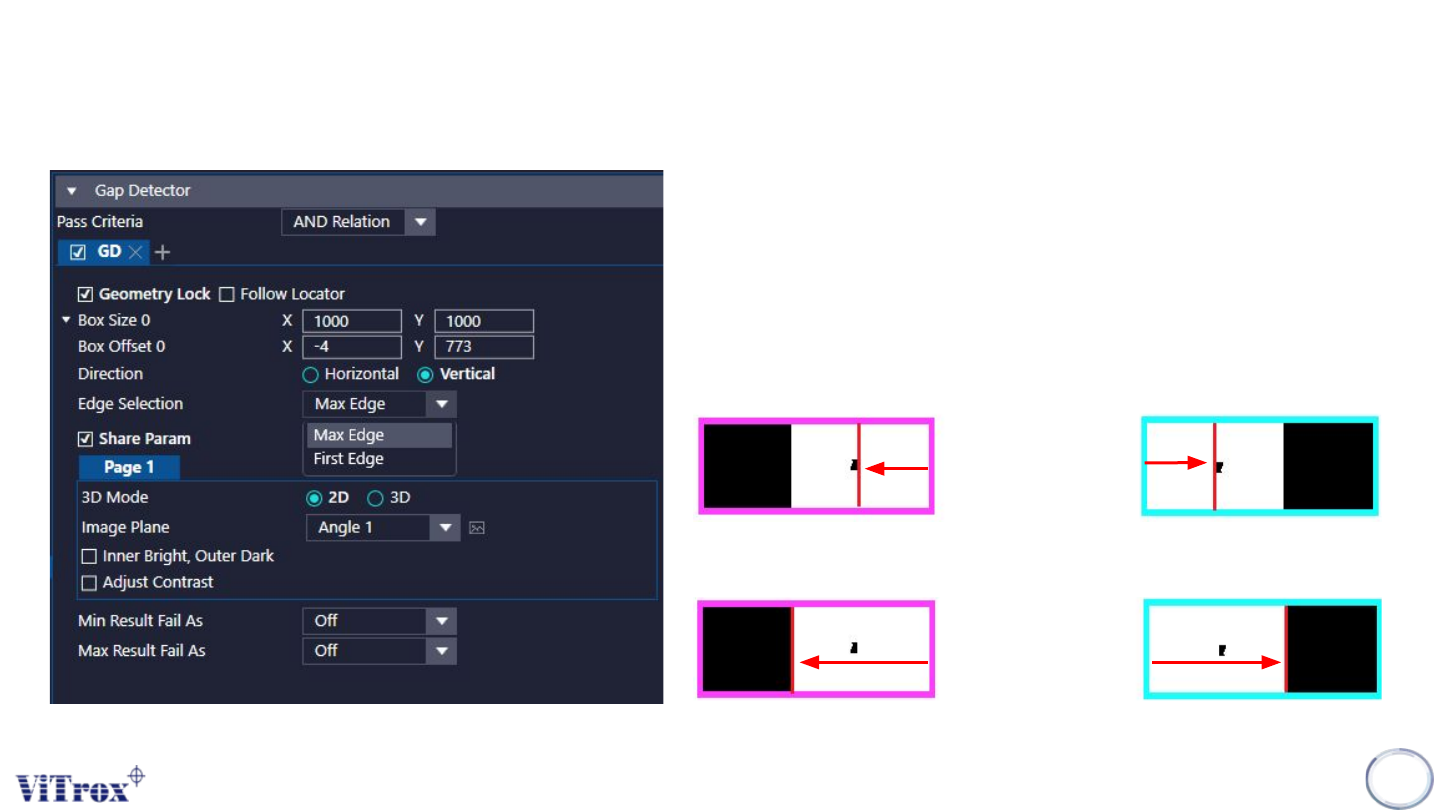

1. Edge Selection

● Can adjust to detect either first edge or max edge.

● Software will detection from inner to outer direction.

● Refer to the picture below for the explanation for first edge and

max edge.

A. First Edge

B. Max Edge

U-type Algorithm Gap Detector

245

1. Share Param

● To share the same setting for both gap detector boxes.

2. 3D Mode

● Can choose either 2D (greyscale) or 3D (Height) to detect the

edges.

U-type Algorithm Gap Detector
