Body Presence/Absence Inspection
Copyright © ViTrox All Rights Reserved.

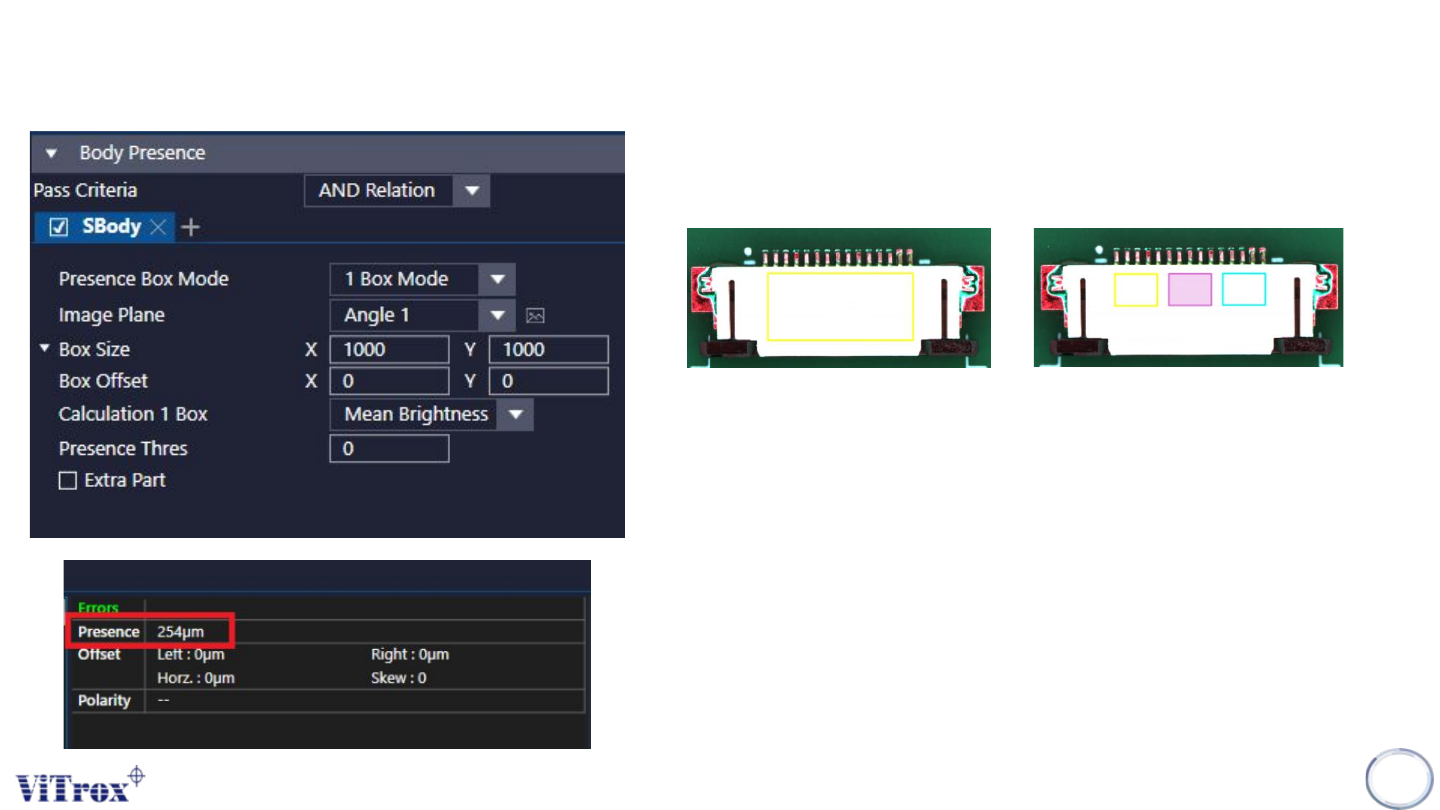

U-type Body Presence
160
a. Presence Box Mode
b. Image Plane
● These are the types of 2D Lighting. Select the one with having
highest contrast among interested inspection region and the
background.
c. Box Size & Box Offset
● To adjust the joint inspection box size & joint inspection box offset.
1 Box Mode 3 Box Mode
Copyright © ViTrox All Rights Reserved.
U-type Body Presence
161
d. Calculation Mode
● 1 Box Mode
● 3 Box Mode
