Copyright © ViTrox All Rights Reserved.

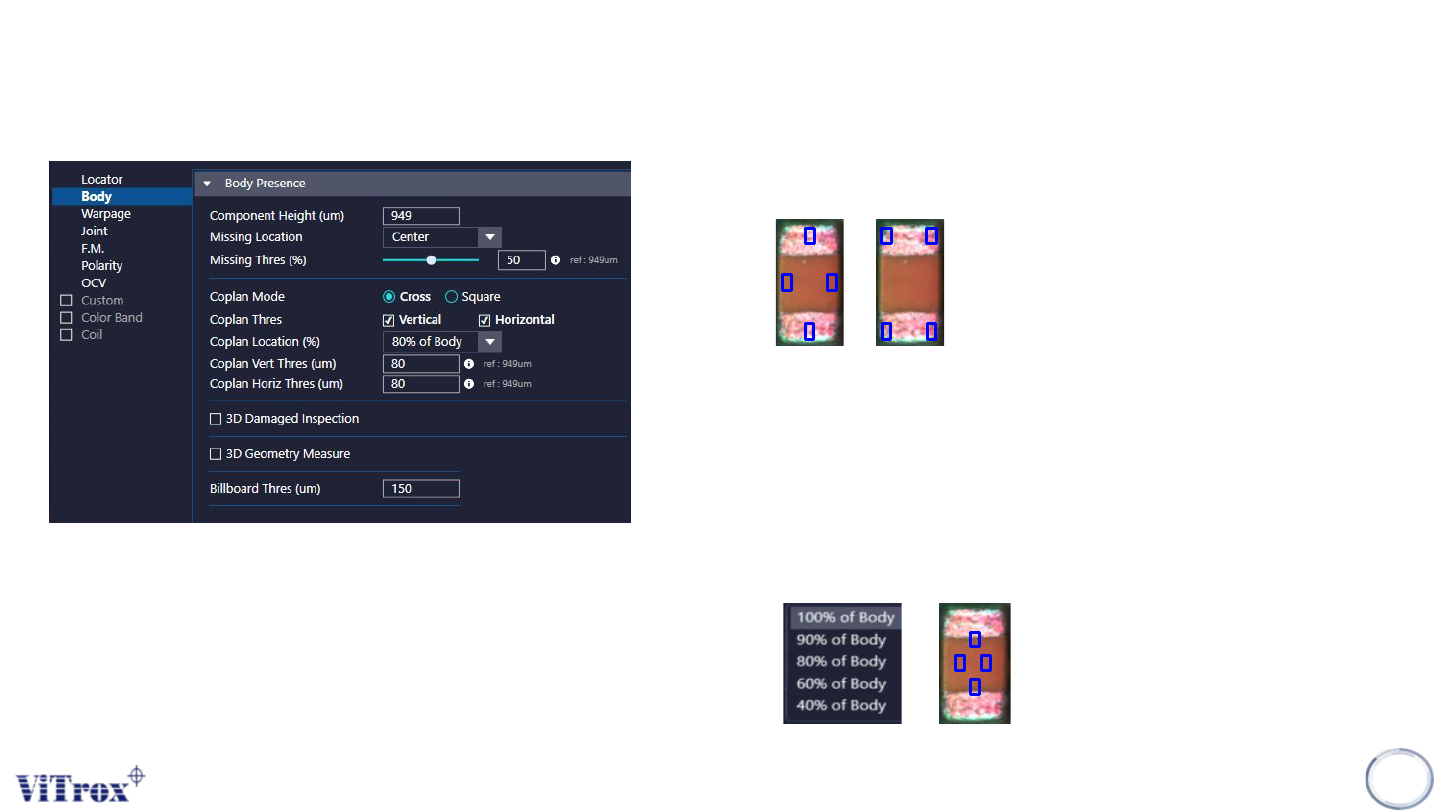

B-type Algorithm - Body
55
d. Coplan Mode
● To select the arrangement of the inspection boxes to detect
coplanarity defects.
3. Coplan Alternative
● Add another AND relationship coplan alternative which different
in the coplan location.
Both Primary and Alternative
must pass in order to pass
Cross Square
e. Coplan Thres
● To enable the coplan inspection direction in horizontal or vertical
or both.
Eg. for 40%
f. Coplan Location
● To adjust the location for the coplan inspection boxes.
● The smaller the percentage, The inner the boxes towards the
centroid
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Body
56

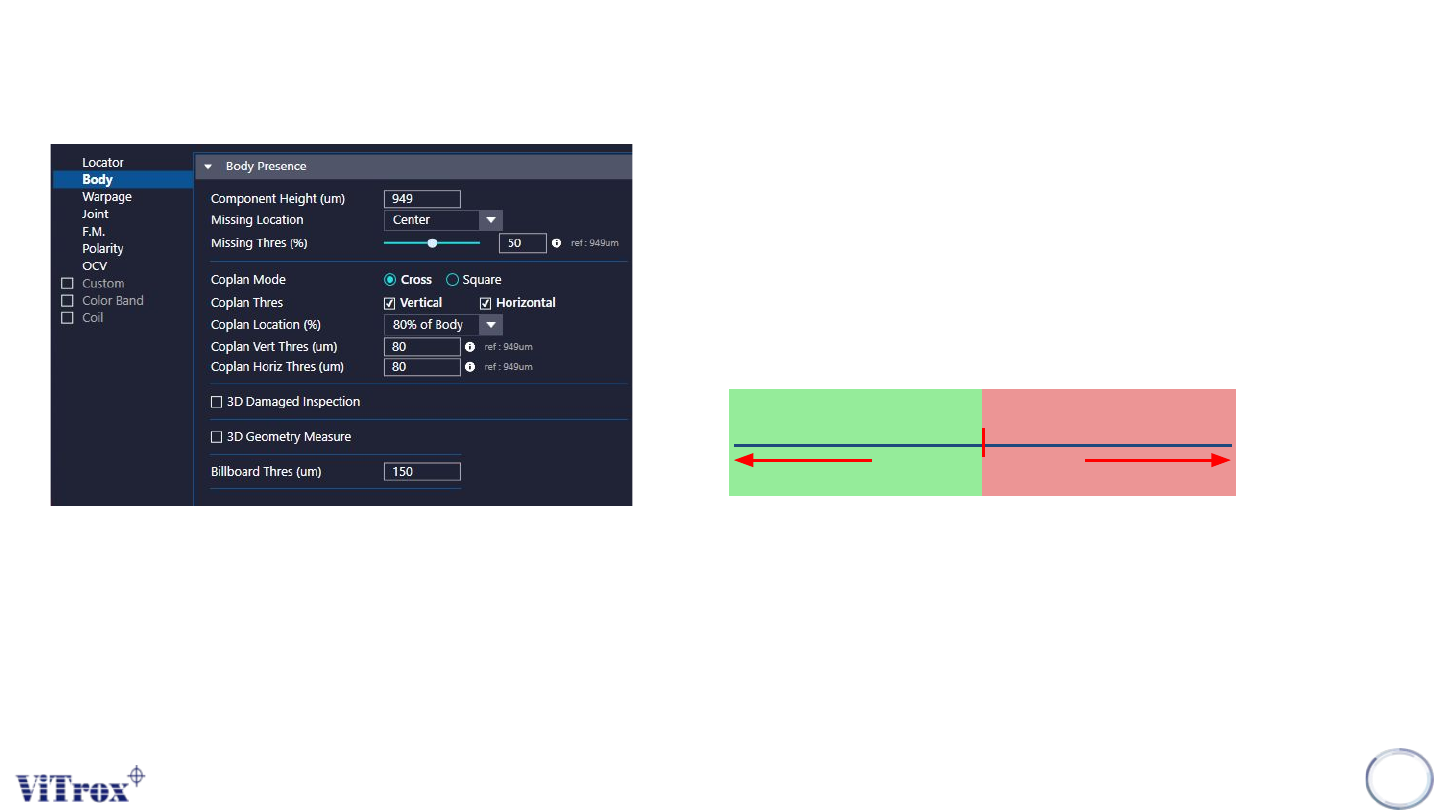

g. Coplan Thres
● Vertical:
The measured height difference between the two coplanarity
inspection boxes in vertical direction.
● Horizontal:
The measured height difference between the two coplanarity
inspection boxes in horizontal direction.
3. Coplan Alternative
● Add another AND relationship coplan alternative which different
in the coplan location.
Both Primary and Alternative
must pass in order to pass
Coplan Thres (um)
Height Difference (um)
FAIL
PASS
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Body
57

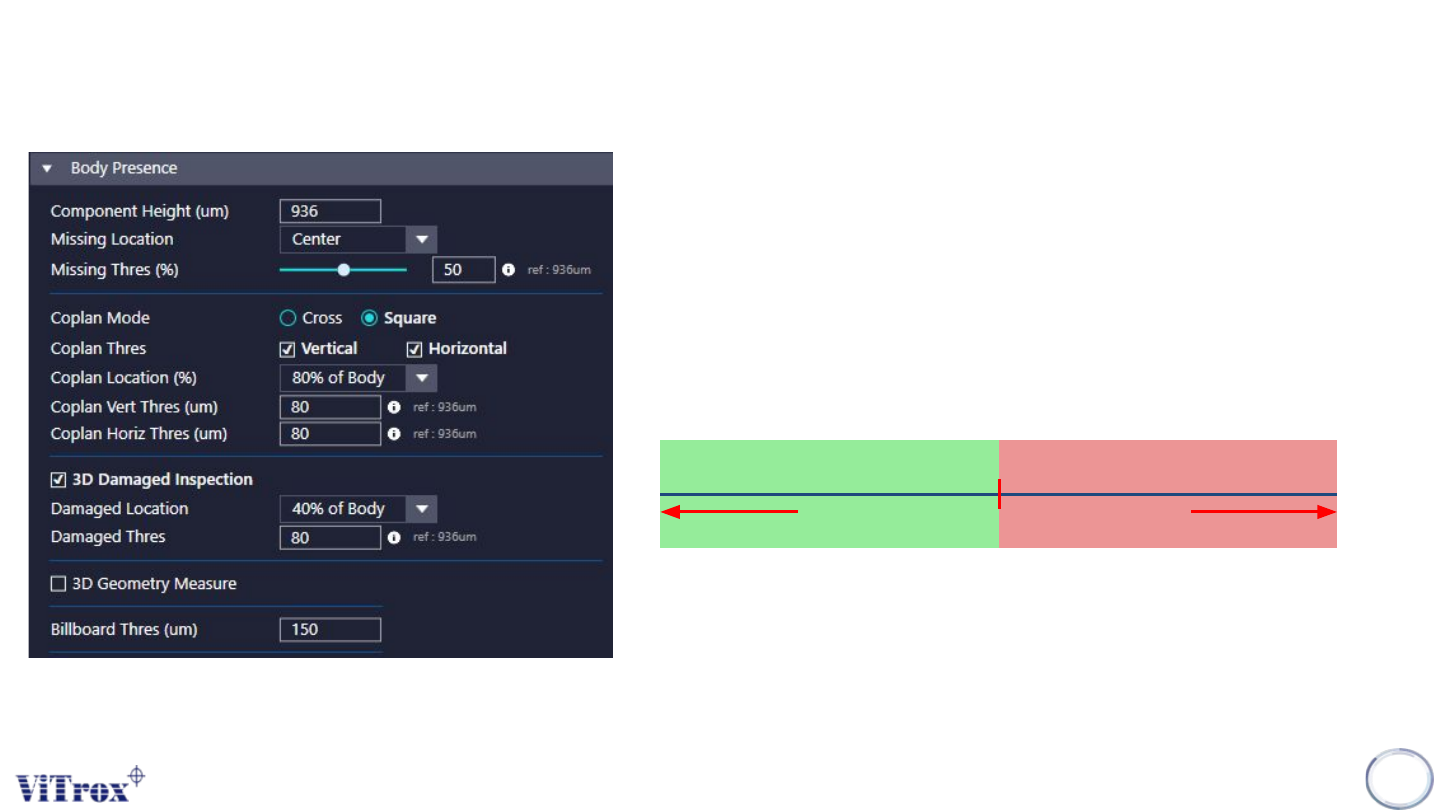

h. 3D Damaged Inspection
● Tick this to enable 3D Damaged Inspection
i. Damaged Location
● To adjust the location for the damages inspection boxes.
● The smaller the percentage, The inner the boxes towards the centroid
j. Damaged Thres
● Software will check the height of these 4 boxes, the component will fail as
“Damaged” if the absolute height different between any one of the ROI's height
and component height higher than damaged threshold.
Damaged Thres (um)
Measured Height - Reference Height
FAIL
PASS
