B-type Algorithm - Body
61
3. Min Width Measure
● Same as Min Length Measure

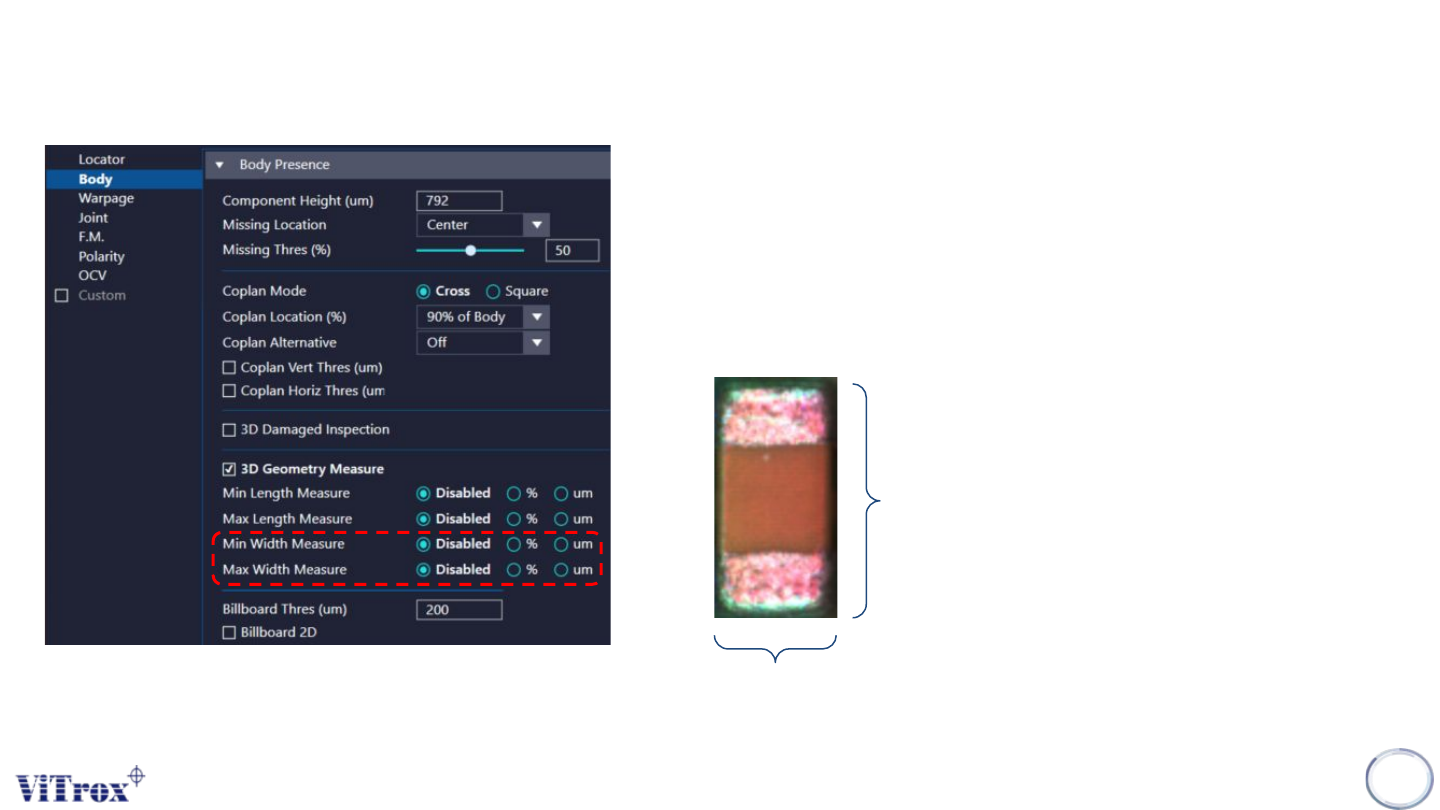

● Refer figure below for length & width definition.
4. Max Width Measure
● Same as Max Length Measure
● Refer figure below for length & width definition.
Length
Width
