Step 1: Fiducial Setup
Fiducial feature on the board that the V510 AOI uses to align the system to the coordinates of
the board. The V510 automatically carries out 2D inspection to determine the location of the
fiducials
311
Copyright © ViTrox All Rights Reserved.
312
1. Press “Ctrl + A” to search for fiducials.

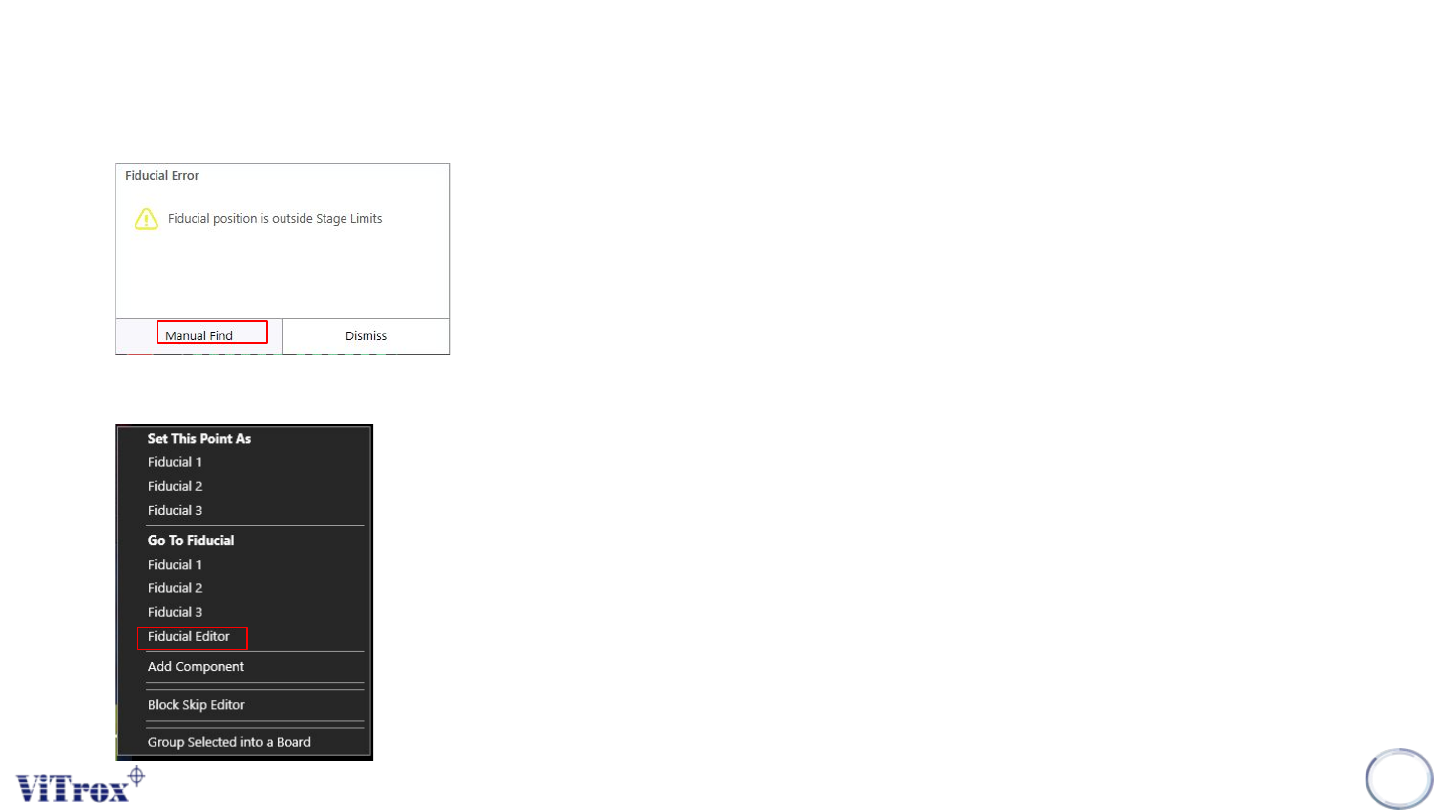

2. Fiducial error messages will prompt out if the fiducial not found.
3. Select Manual Find to enter Fiducial Editor Interface
4. Another way to access to Fiducial Editor Interface
Copyright © ViTrox All Rights Reserved.
313
5. Image below shows the Fiducial Editor Interface.
Fiducial locations
in GUI interface.
Fiducials Images & Scores
