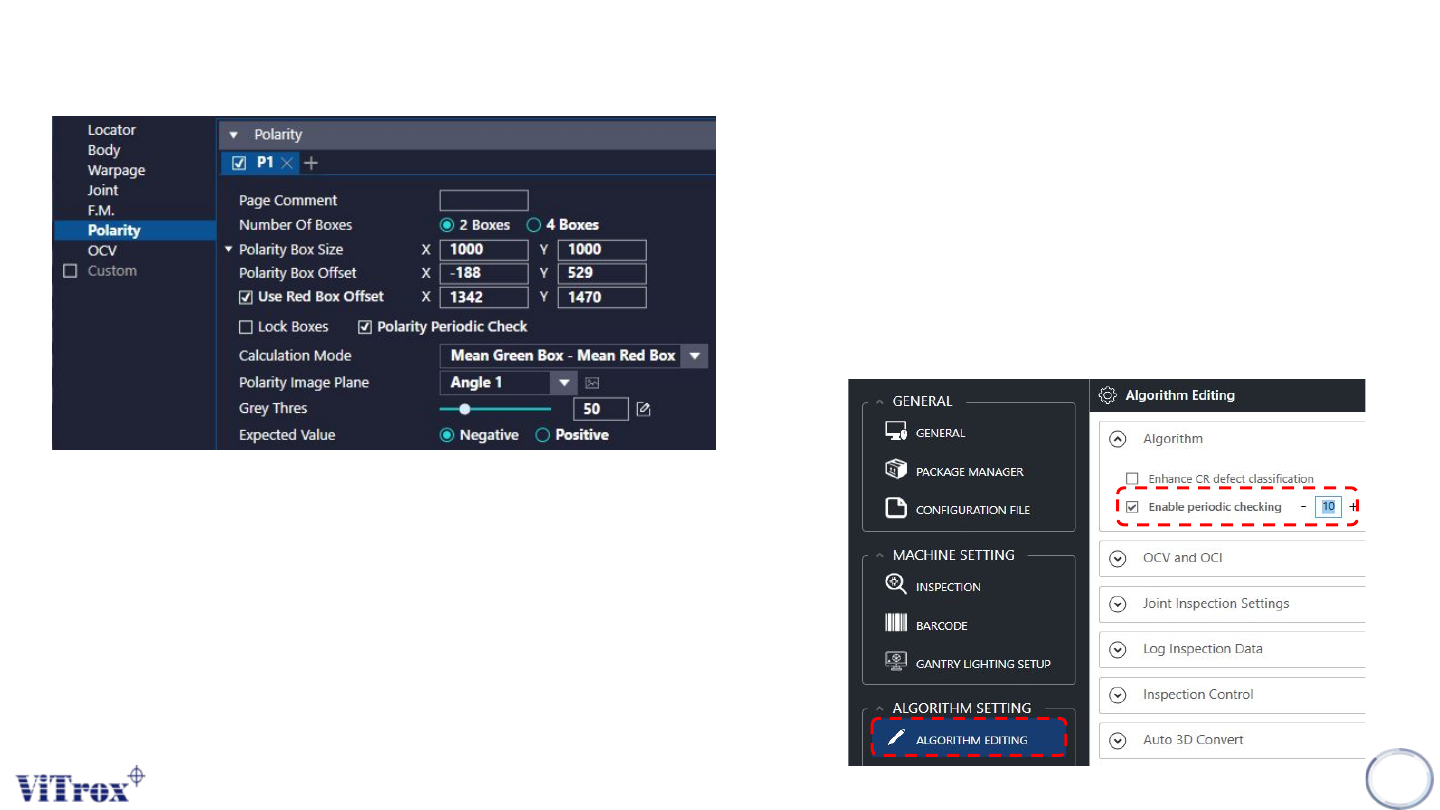

6. Polarity Periodically Check

● When turn on enable periodic checking and set to 10, every 10th

boards that enable polarity periodic check will perform polarity

inspection, otherwise the another 9 boards will skip the

inspection. If the board finished inspection when the periodic

count at 6, for the next board inspection, the periodic count will

start from 7.

● Close SmartG software will reset the periodic count. The

programs that did not enable polarity periodic check will inspect

as usual.

Polarity

290

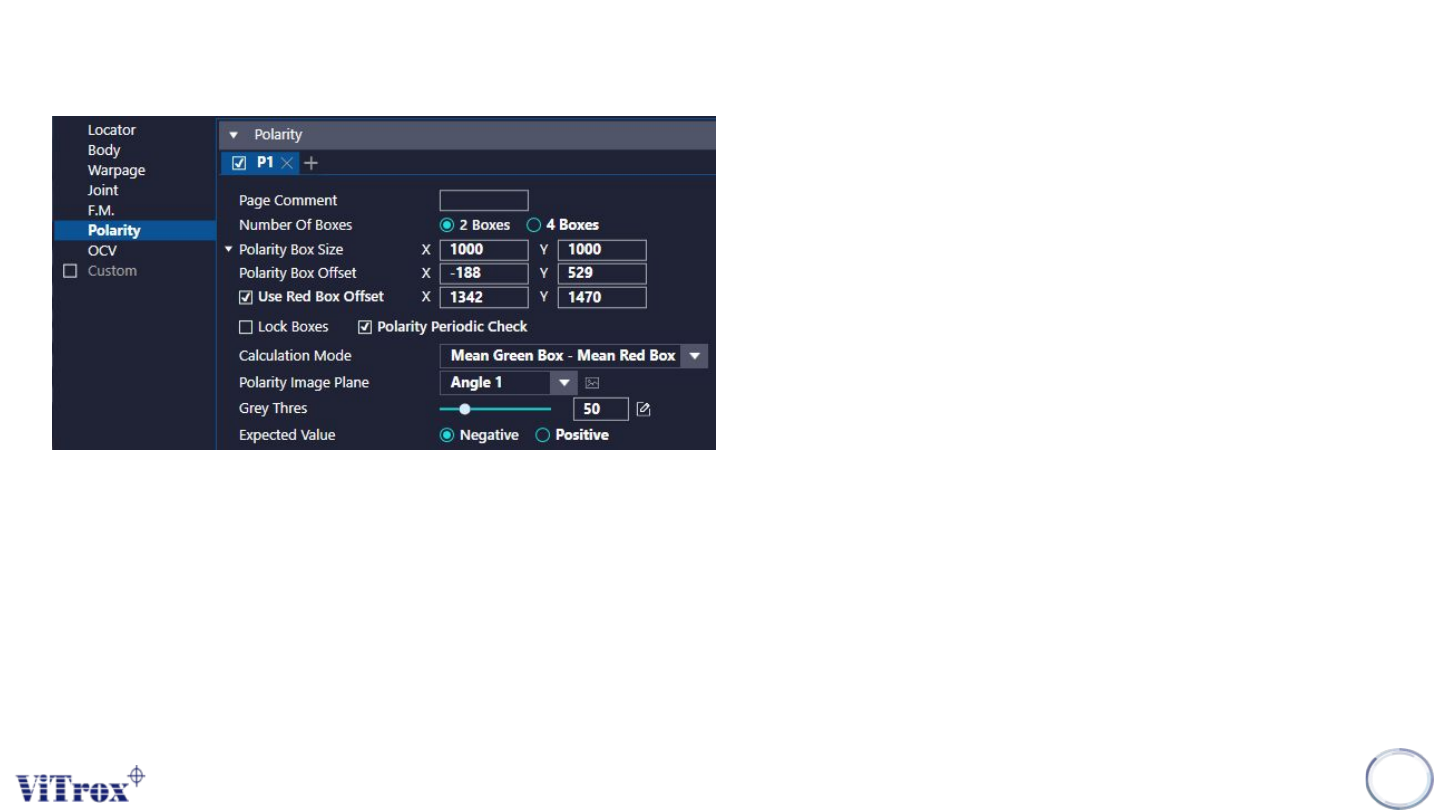

6. Calculation Mode

● Calculation mode contains 11 type of calculations that include 9

type of 2D calculations and 2 type of 3D calculations which are:

a. 2D calculation

○ Mean Green Box - Mean Red Box

○ Std Dev of Green Box - std Dev of Red Box

○ (Mean + Std Dev of Green Box) - (Mean + Std Dev of

Red Box)

○ Edge Find, Dark Outside -> Light Inside

○ Edge Find, Light Outside -> Dark Inside

○ Bar Edge Find

○ Dark Circle

○ Bright Circle

b. 3D calculation

○ [3D] Height of Green Box - Height of Red Box

○ [3D] Range of Green Box - Range of Red Box

Polarity

291

Polarity

6. Polarity Image Plane

● Select the one that having best contrast among the Polarity

Marking and background.

7. Grey Thres

● Is the minimum difference between the red and green boxes.

8. Expected value

● Is the value that shall be obtained either in positive or negative.

● Based on the Calculation Mode selected
