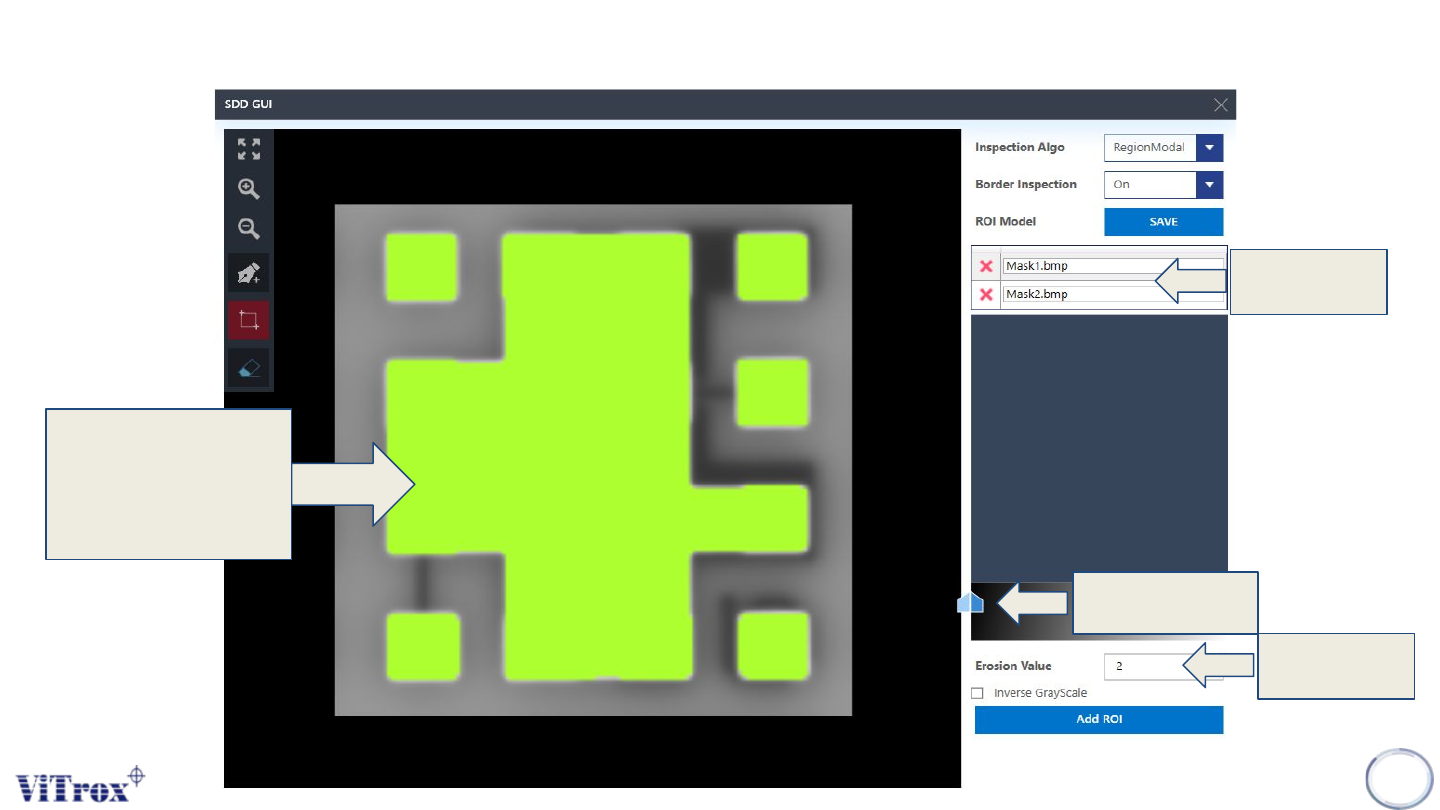

GreenYellow

colour mean ROI

Total ROI

Erosion

Value

Draw here

to draw ROI

Learn Modal

260

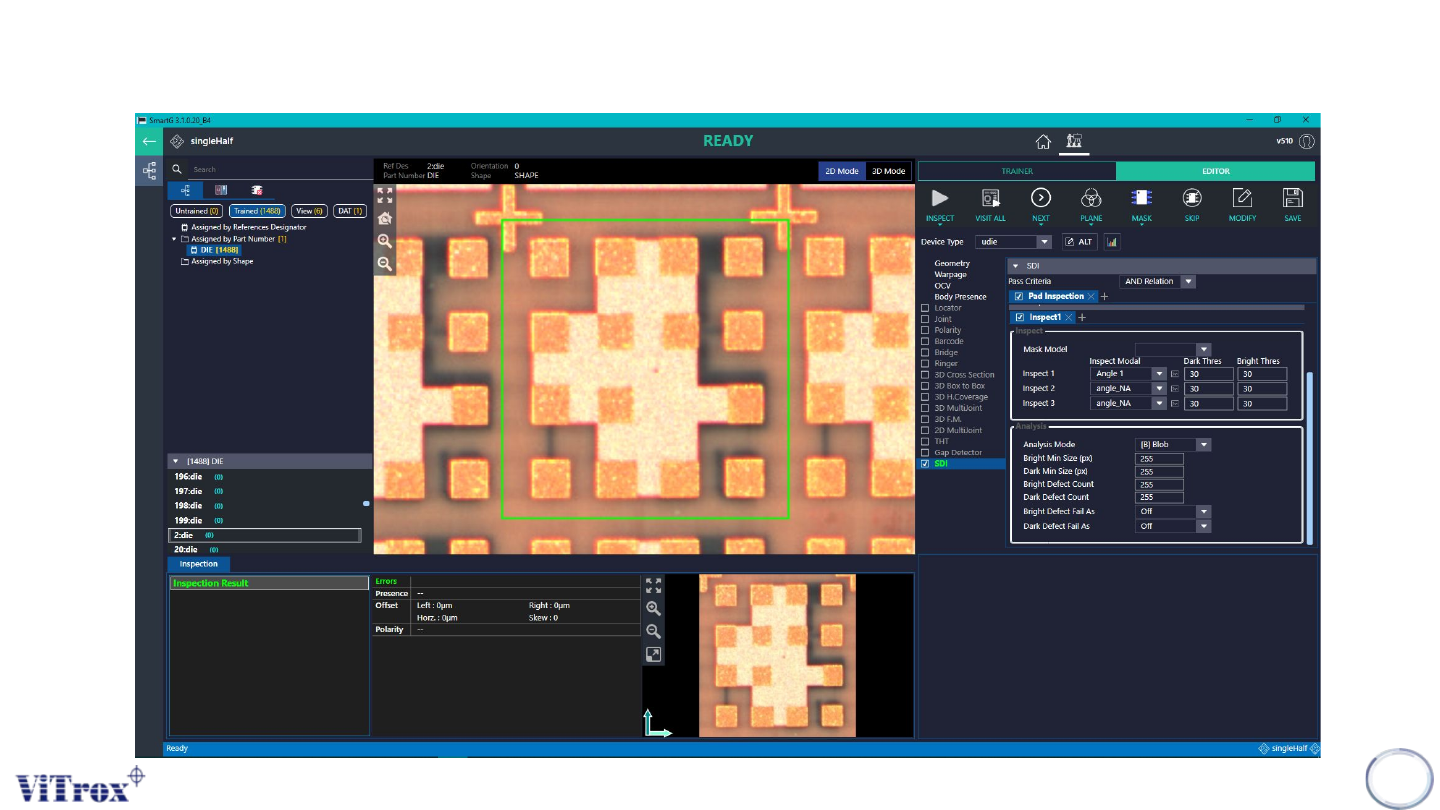

Inspect and Analysis

261

Inspect Modal Bright Threshold Dark Threshold

Inspect 1 Angle 1 30 30

Inspect 2 angle_NA 30 30

Inspect 3 angle_NA 30 30

Remarks:

1. Inspect is to find the difference between modal and current inspect ref des. If the difference is

greater than the amount set in BT or DT. The defect will be prompt.

2. Defect is prompt but AOI will not classify the detected defect as error.

3. User would need need go to analysis to classify the detect defect as error.

Inspect and Analysis (Inspect Tab)

Inspect Modal

1. Users are provided with 3 inspect column to search for ROI defects

2. If users would not use inspect column, users would just set Inspect Modal to angle_NA
