B-type Algorithm - Joint (Bridging)

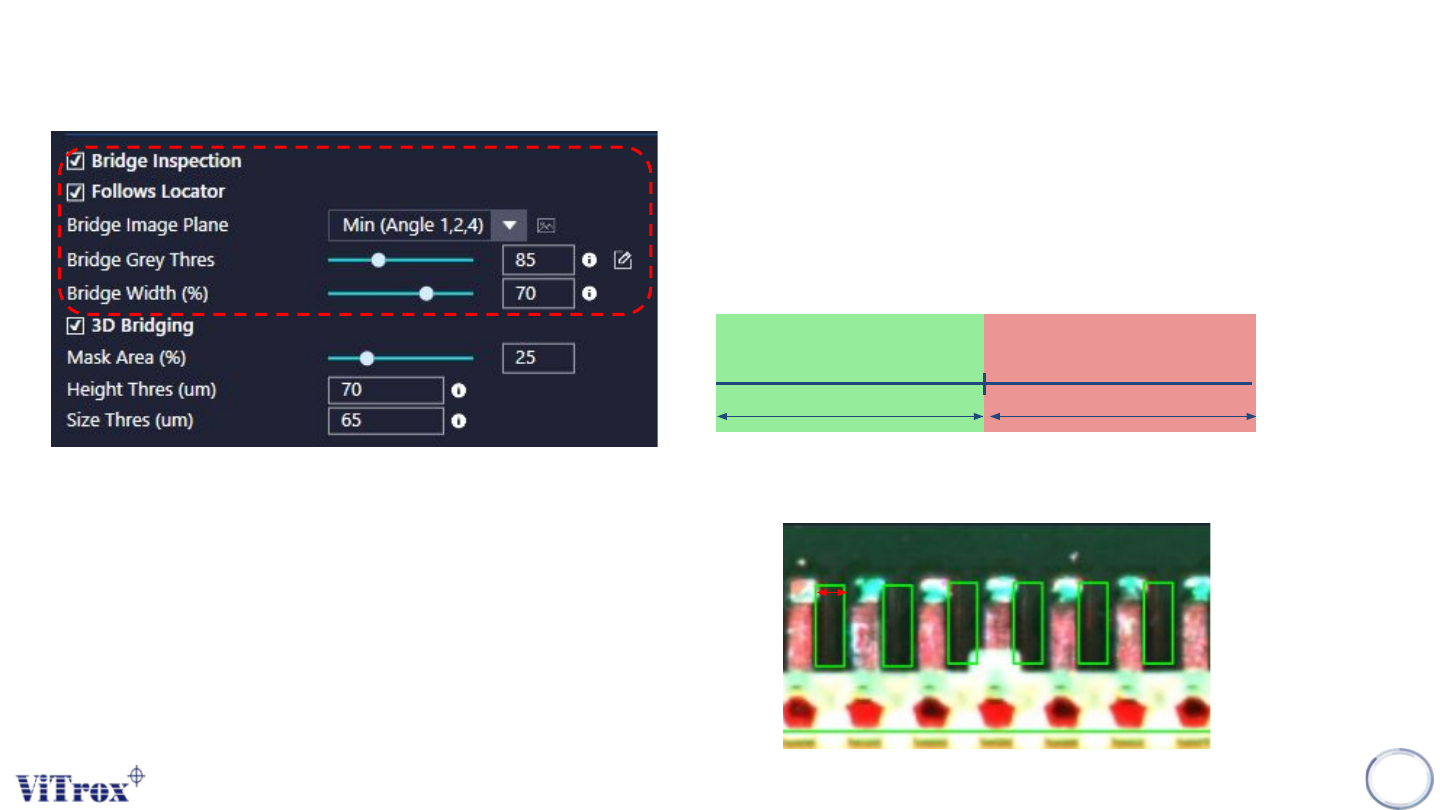

a. Bridge Inspection

● Enable or Disable Bridge Inspection

b. Bridge Follow Locator

● To allow the Bridging Inspection boxes follow the locator.

c. Bridge Image Plane

● Used Min (Angle 1,2,3,4)

d. 2D Bridge Grey Thres

e. 2D Width Bridge (%)

● To measure the total horizontal pixel per row in horizontal direction

2D Bridge Gray

Threshold

Pass Fail

Width

B-type Algorithm - Joint (Bridging)

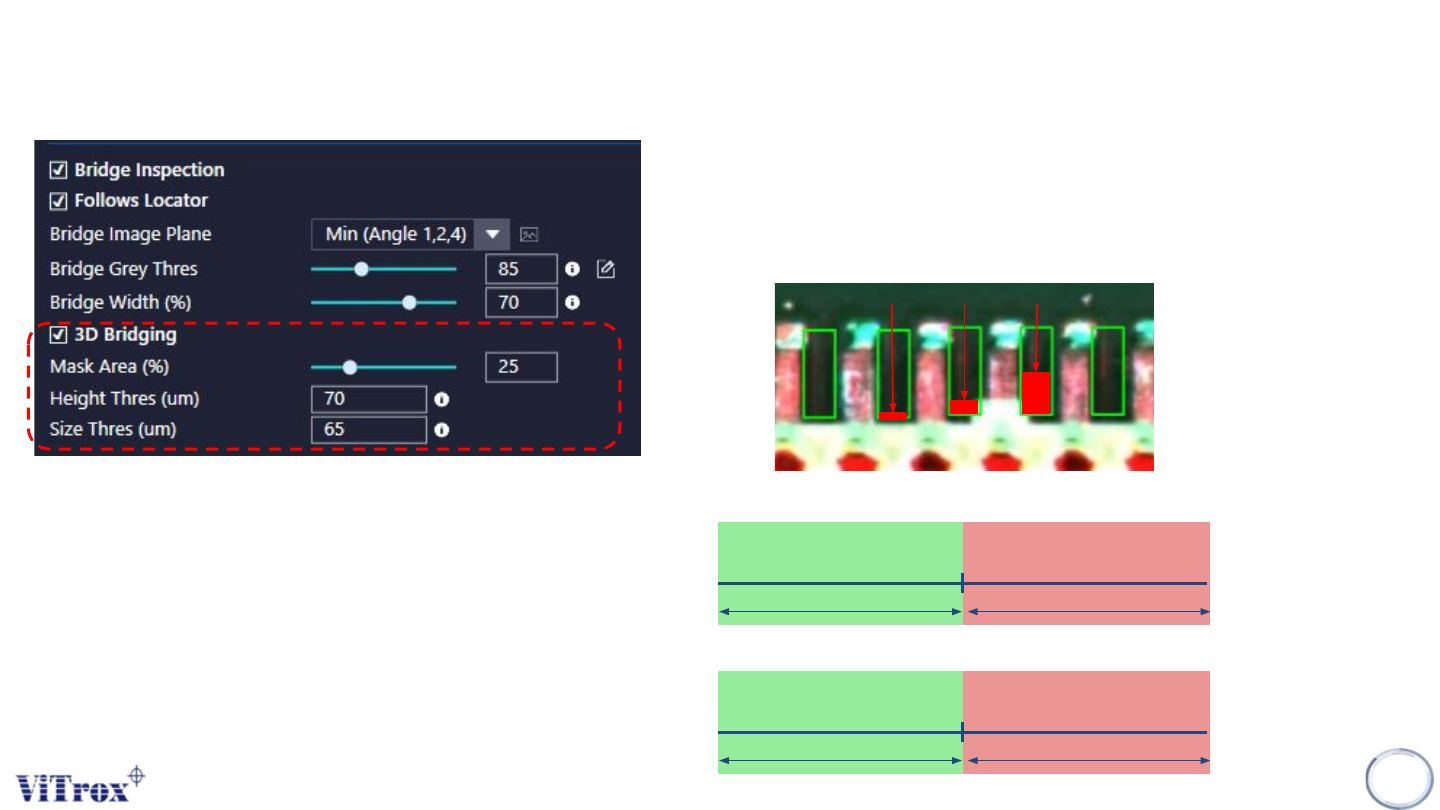

a. Bridge Mode 3D

● Enable or Disable 3D Bridge Inspection

b. 3D Bridge Mask Area (%)

● To adjust the size of Bridging Inspection boxes & Bridge Offset.

Mask

10%

Mask

20%

Mask

50%

c. 3D Bridge Height Thres (um)

d. 3D Bridge Size Thres (um)

3D Height Thres

Pass Fail

3D Size Thres

Pass Fail

Foreign Material Inspection
