Copyright © ViT rox All Rights Reserved . 314 6. User may press the icons shows below to move the vision system to the estimated location of the fiducials. 7. Adjust for the fiducial parameters to ensure the shape, size …

313

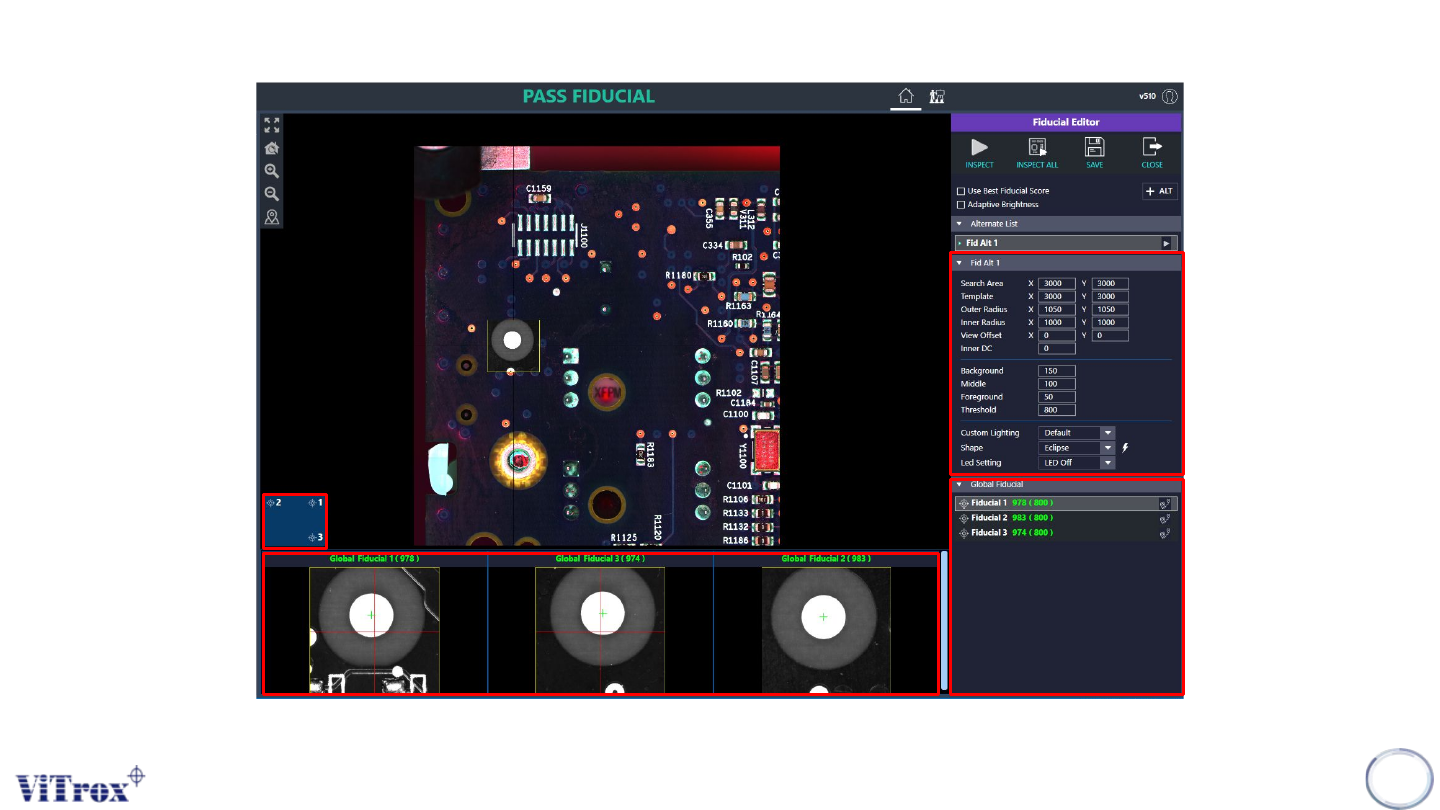

5. Image below shows the Fiducial Editor Interface.

Fiducial locations

in GUI interface.

Fiducials Images & Scores

314

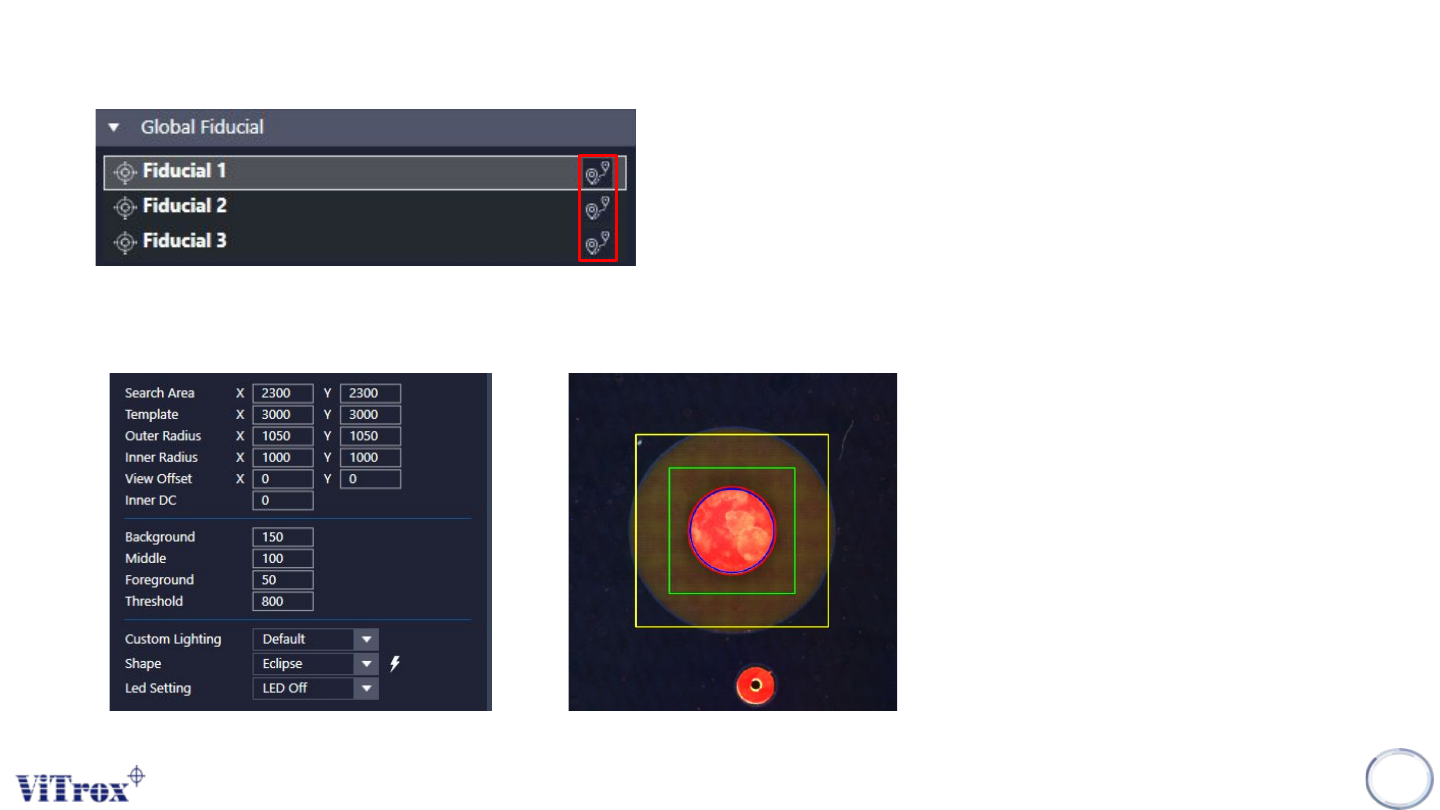

6. User may press the icons shows below to move the vision system to the estimated location of the

fiducials.

7. Adjust for the fiducial parameters to ensure the shape, size and greyscale of the fiducials are correct.

(Refer fiducial editor setup)

315

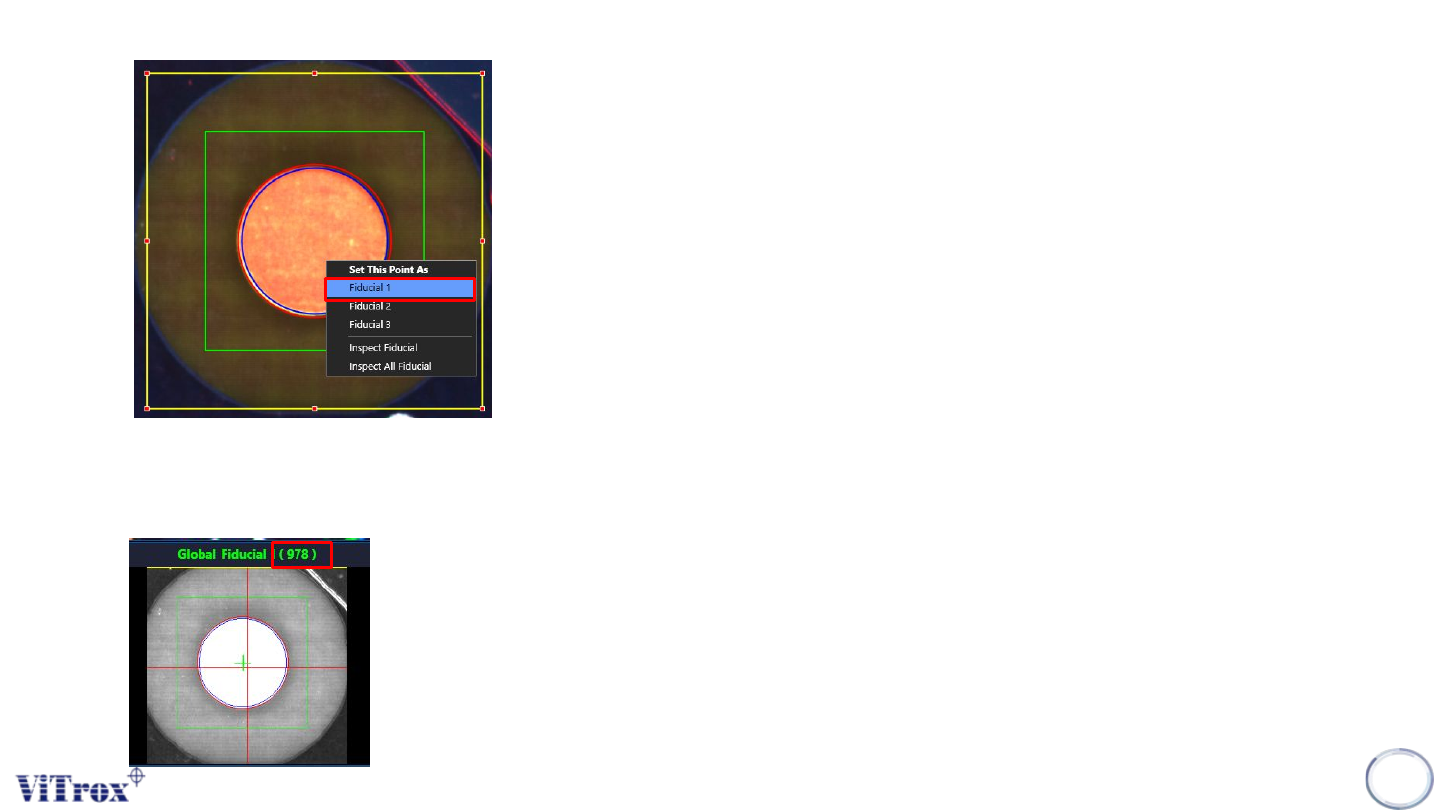

8. Right Click on the fiducial and set this point as “Fiducial X”.

9. Make sure the fiducial score higher than the Presence Threshold set. Normally the presence

threshold should set higher than 700. Retune the fiducials parameter if the score lower than the

threshold.
