OCV Inspection

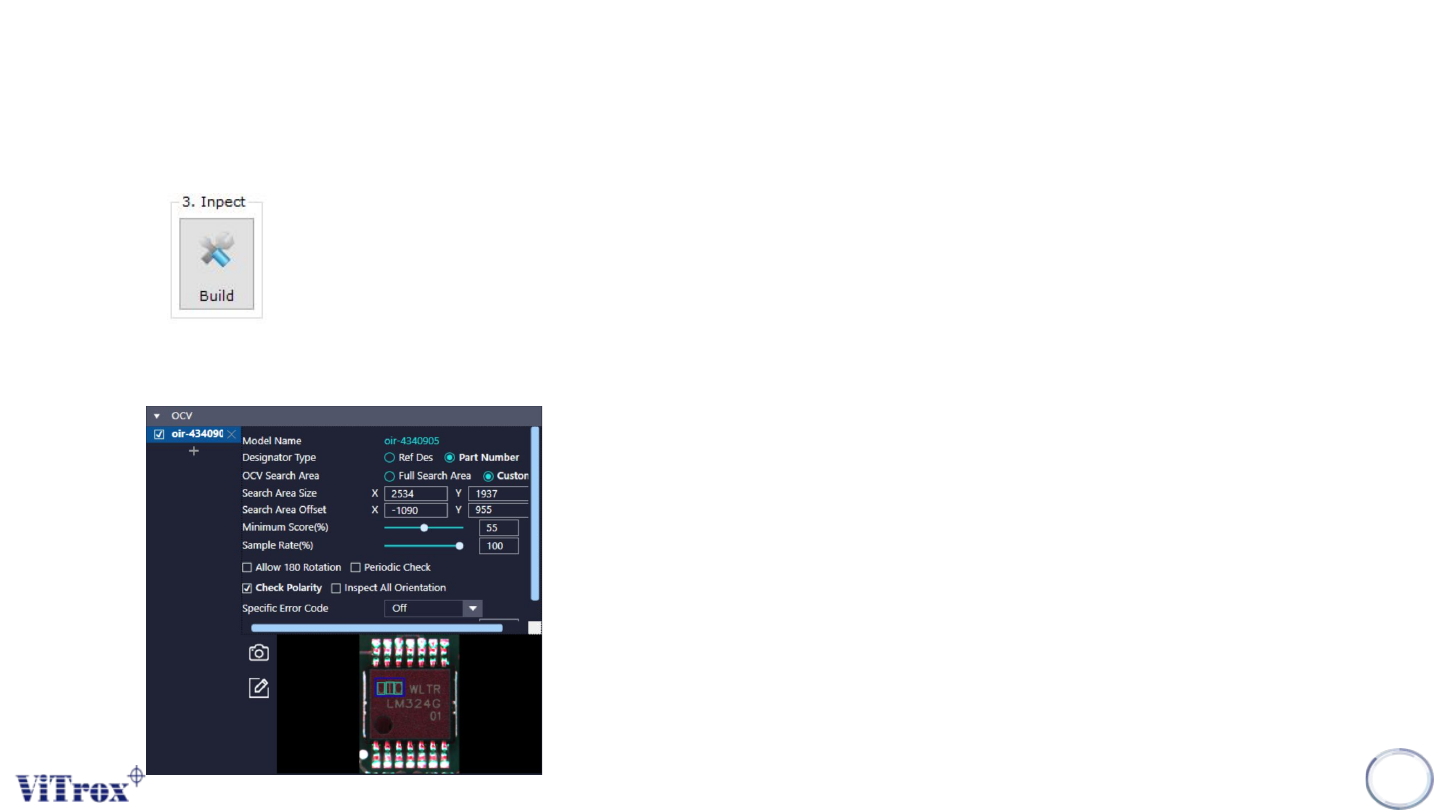

5. Build icon as below is used save the template after all settings is done.

274

6. After built Some of the OCV settings need to be adjust based on requirement. (Refer next page)

OCV Inspection

275

1. Model Name

● Shows the model name for the OCV template.

2. Designator Type

● Assign the OCV template by either Ref Des or Part number.

3. OCV Search Area

● Two mode: Full search area & Custom

● Full search area is used to match the OCV in full template

● Custom is used to match the OCV in custom location. (default)

4. Search Area Size & Search Area Offset

● To adjust the size and offset for custom search area.

5. Minimum Score (%)

● The minimum score to pass the OCV for every ROI.

6. Sample Rate (%)

● Run the OCV in sampling mode

OCV Inspection

276

1. Allow 180 Rotation & Polarity checking

● Allow 180 Rotation is used to allow the OCV pass criteria of 0

degree rotation and 180 degree rotation. If this feature enable, this

component that rotate 180 degree will consider as pass.

● Check Polarity is used to inspect the polarity defect by OCV

algorithm. If Check Polarity is enable, the component OCV

inspection value in 0 orientation has higher marks than 180

orientation will consider as pass. When Allow 180 Rotation is

enable, check polarity setting will be hidden. See figure below.

● Note: The cycle time will be increased.
