Copyright © ViT rox All Rights Reserved . 28 CR T ype Algorithm - Joint (2D Only) 5. Joint Coverage Threshold ● Using 2D only (Grayscale) ● Every single pixels in the joint box will go through inspection. ● The pixels hi…

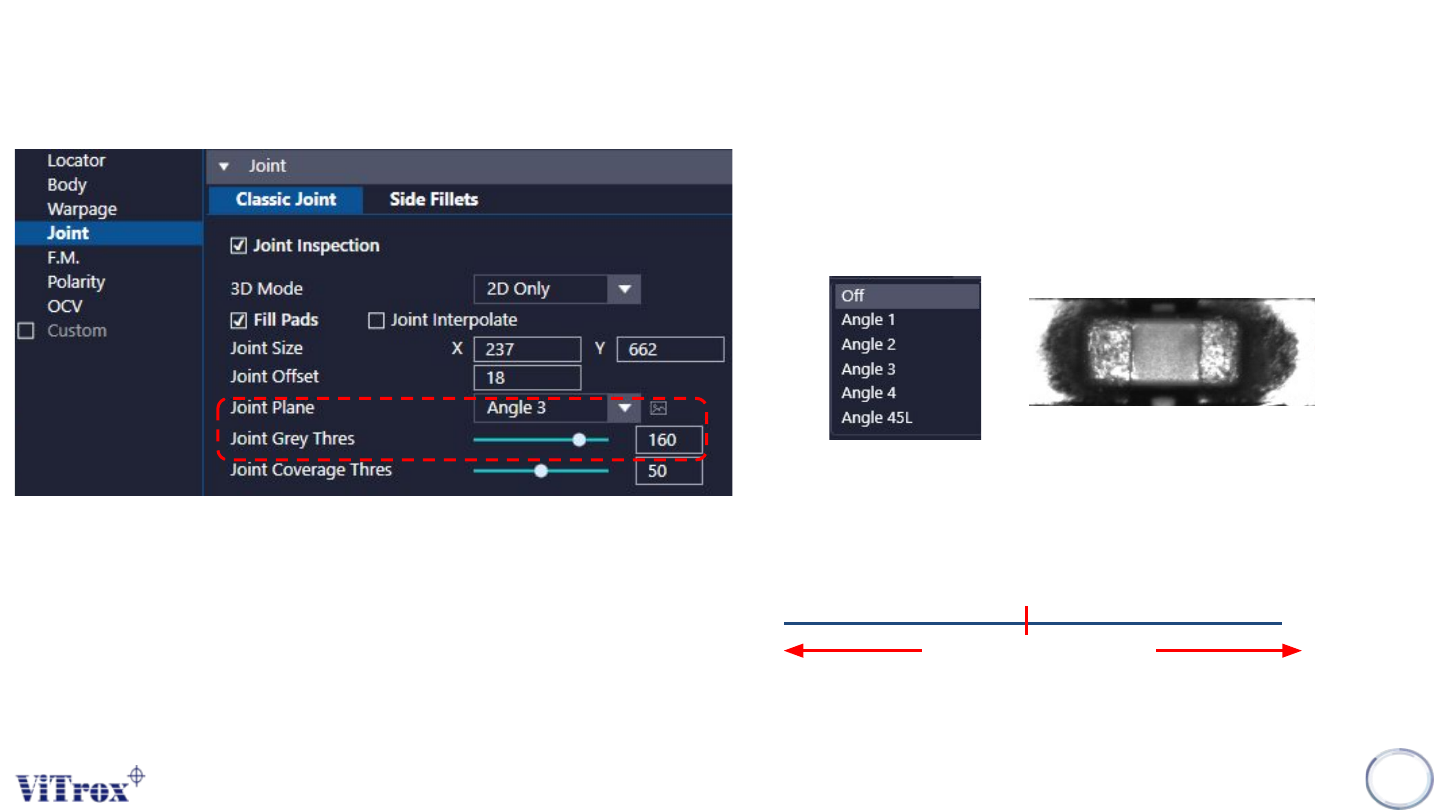

CR Type Algorithm - Joint (2D Only)

5. Joint Plane

● Select the one that having best contrast among the Joint Area

and background.

● Good Joint having Dark in colour.

2. Joint Grey Thres

● Default set to 160.

● Fail Criteria: Grey scale measured > Threshold set

Angle 3

Joint Grey Thres

Measured Grey

Scale

PASS FAIL

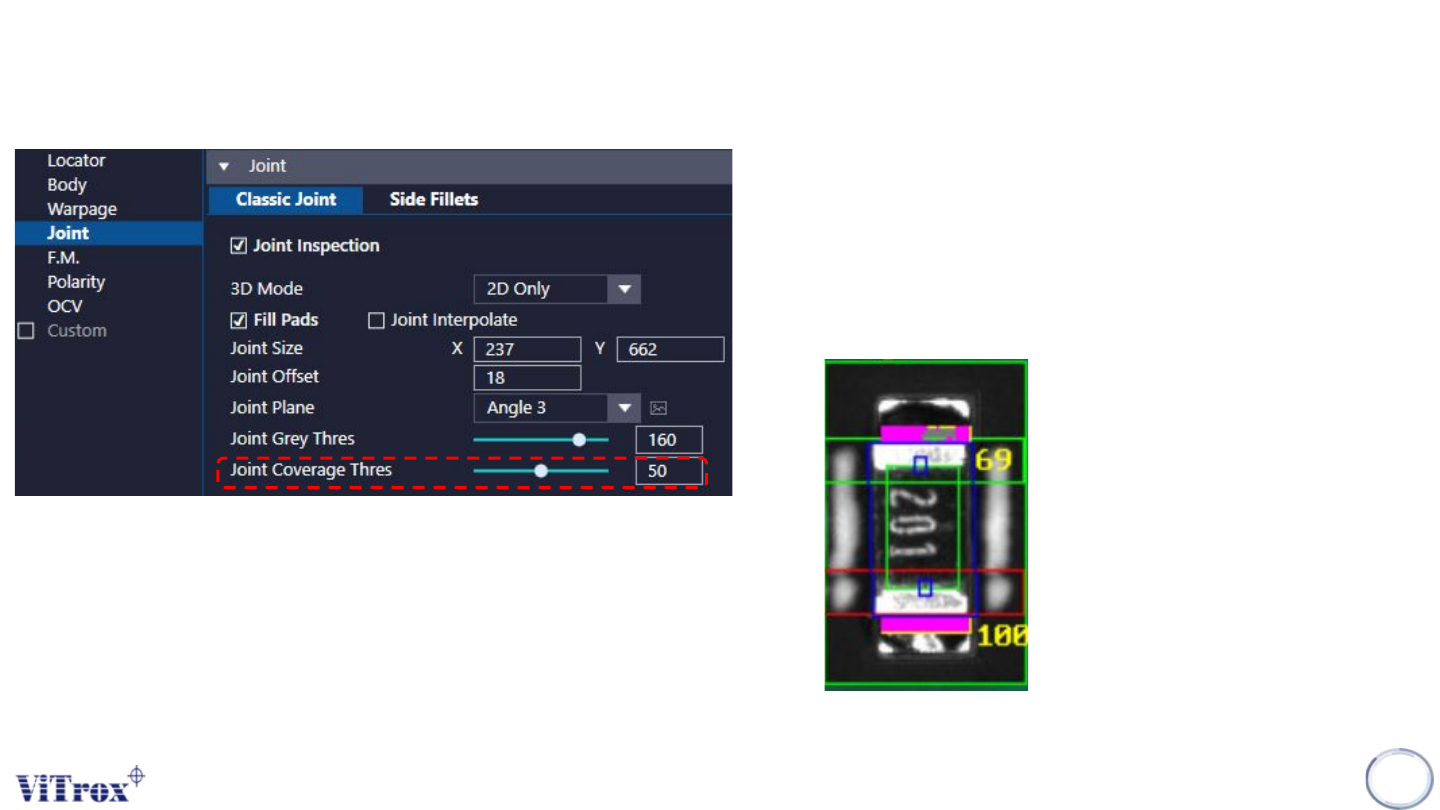

CR Type Algorithm - Joint (2D Only)

5. Joint Coverage Threshold

● Using 2D only (Grayscale)

● Every single pixels in the joint box will go through inspection.

● The pixels highlighted in purple colour is the passed pixels that

(Grayscale on that pixel < Gray Thres set).

● The number in yellow beside the joint box is the percentage of

pass pixels. Refer to example below.

1. Solder Volume 2D+3D

● Using 2D (Grayscale) and 3D(Height)

● OR Relation between 2D and 3D as pass criteria

● Every single pixels in the joint box will go through inspection

CR Type Algorithm - Joint (Solder Volume 2D+3D)
