241

Gap (Distance) Measurement Inspection

U-type Algorithm Gap Detector

242

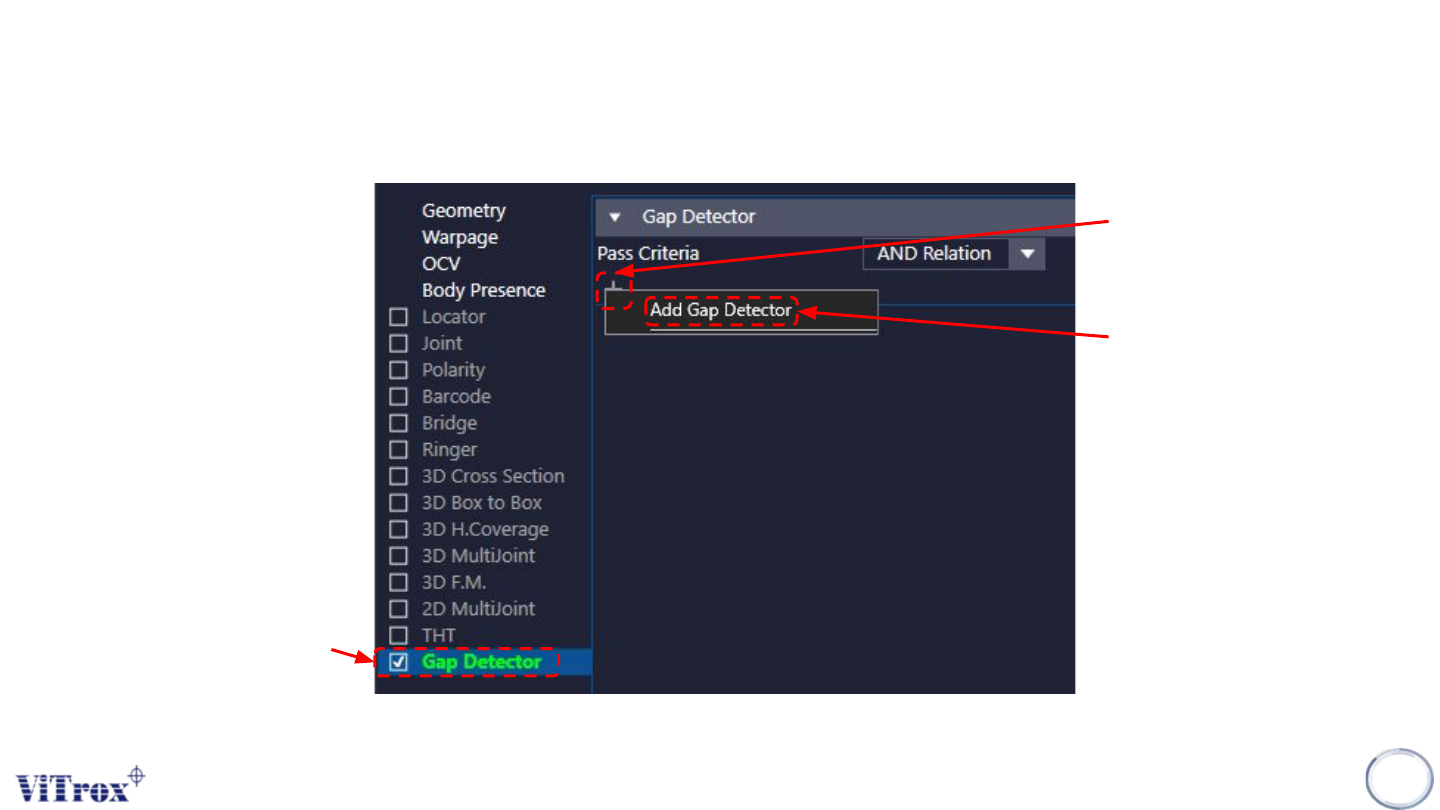

Step 1:

Tick on the Gap Detector.

Step 2:

Left click on the add icon.

Step 3:

Left click on “Add Gap

Detector”.

243

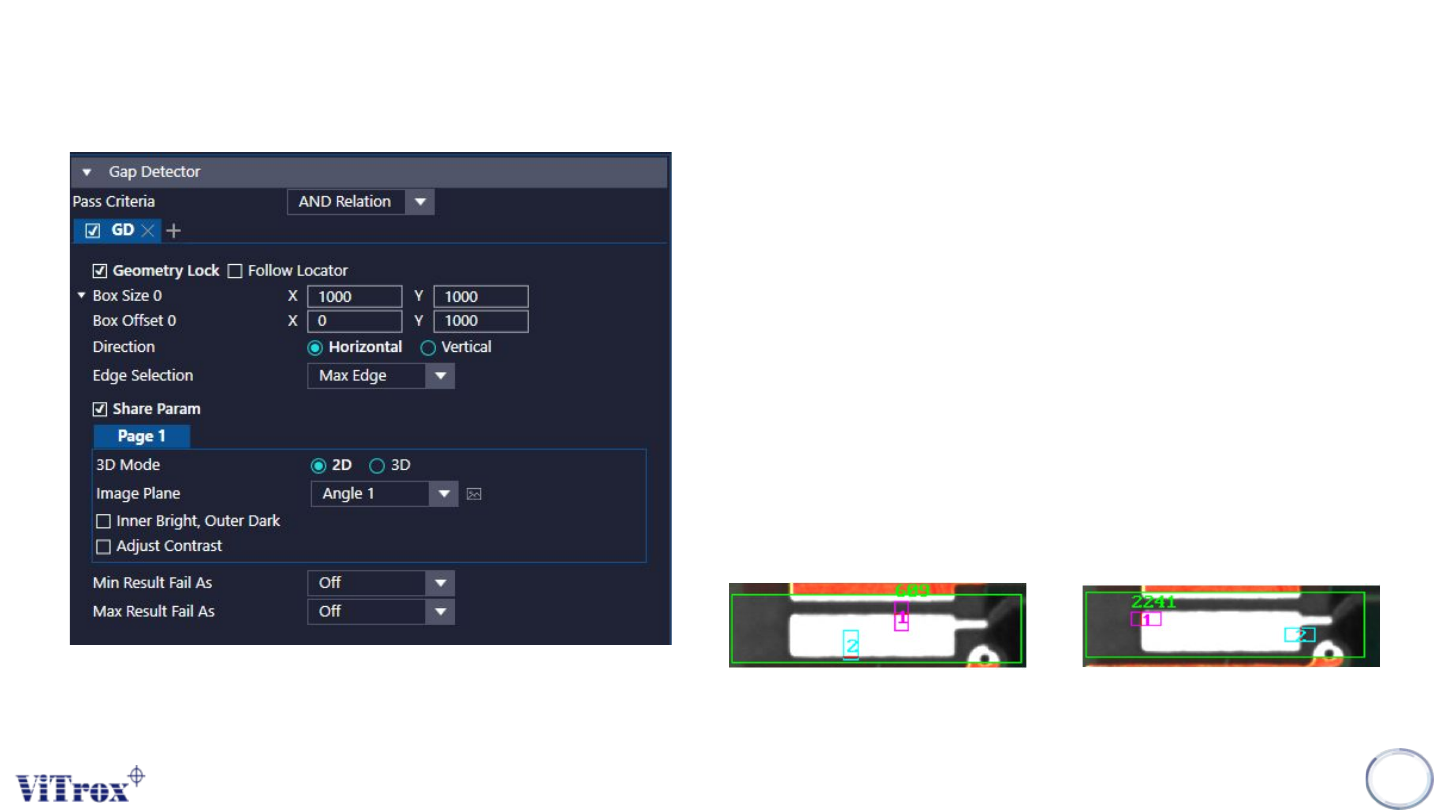

1. Geometry Lock

● To enable the box offset into symmetric direction only.

2. Follow Locator

● Follows locator is used to follow the body locator and lead

relocation feature.

3. Box Size X & Box Size Y

● To adjust the inspection boxes for gap detector.

4. Box Offset

● To adjust the offset location for the inspection boxes.

5. Direction

● To adjust the direction of inspection boxes either in horizontal or

vertical direction.

● For vertical, Red box must located on top. (as below)

● For horizontal, Red box must located on Left.(as below)

Horizontal

Vertical

U-type Algorithm Gap Detector
