Copyright © ViT rox All Rights Reserved . B-type Algorithm - Joint (Solder Profile Inspection) 75 6. Fillet Solder Length (%) & Fillet Width (%) ● The overall pass criteria depends on: a. Solder Width (%) > Solder…
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Solder Profile Inspection)
74
4. Fillet Grey Thres
Grey Thres
Measured Grey Thres
PASS
FAIL
5. Fillet Height Thres
Height Thres (um)
Measured Height(um)
PASS
FAIL
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Solder Profile Inspection)
75
6. Fillet Solder Length (%) & Fillet Width (%)
● The overall pass criteria depends on:
a. Solder Width (%) > Solder Width Thres (%)
b. Solder Length (%) > Solder Length Thres (%)
c. Both solder Length and Solder Width must pass.
● Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (%) > Joint Height Thres (%).
c. OR Relation between 2D and 3D as pass criteria for single pixel
Width
Length
Bumpy Detection
Slope Detection
Length Detection
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Solder Profile Inspection)
76

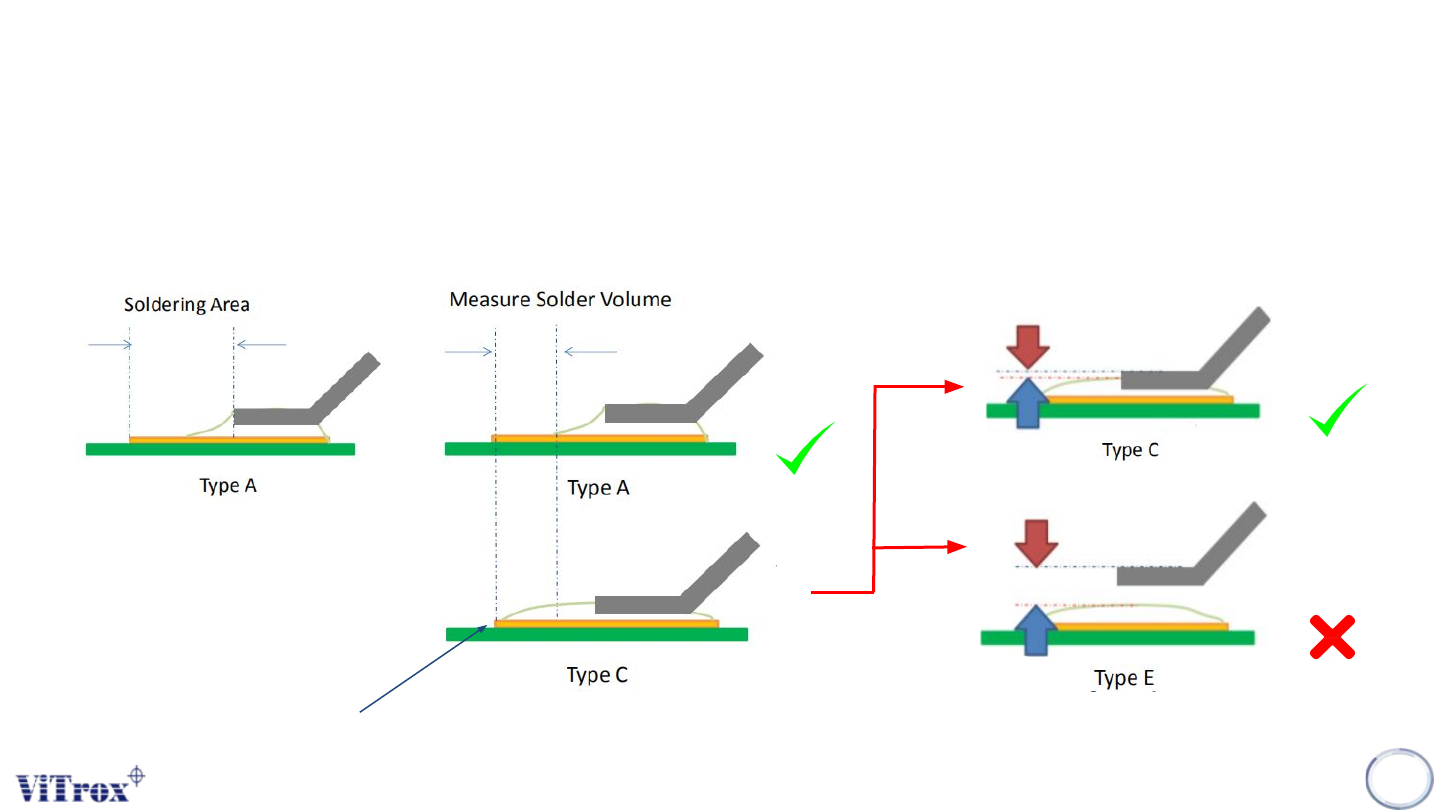

1. Identify Pad Area:
● Must have epad information.
● If no manually add the pad
location.
2. Identify Solder Toe area:
● Good solder slope - Pass
● Flat Solder - Proceed to cold solder inspection.
Pass
Fail
Pass
3. Identify Cold Solder:
● The solder height threshold will affected by
the lead height (s,u) & Body Height (B) set.
(Next Page)
Flat solder / Excess Solder
