Copyright © ViT rox All Rights Reserved . S-type Algorithm - Joint (Solder Profile Inspection) 120 8. Fillet Solder Length (%) & Fillet Width (%) ● The overall pass criteria depends on: a. Solder Width (%) > Solde…
Copyright © ViTrox All Rights Reserved.

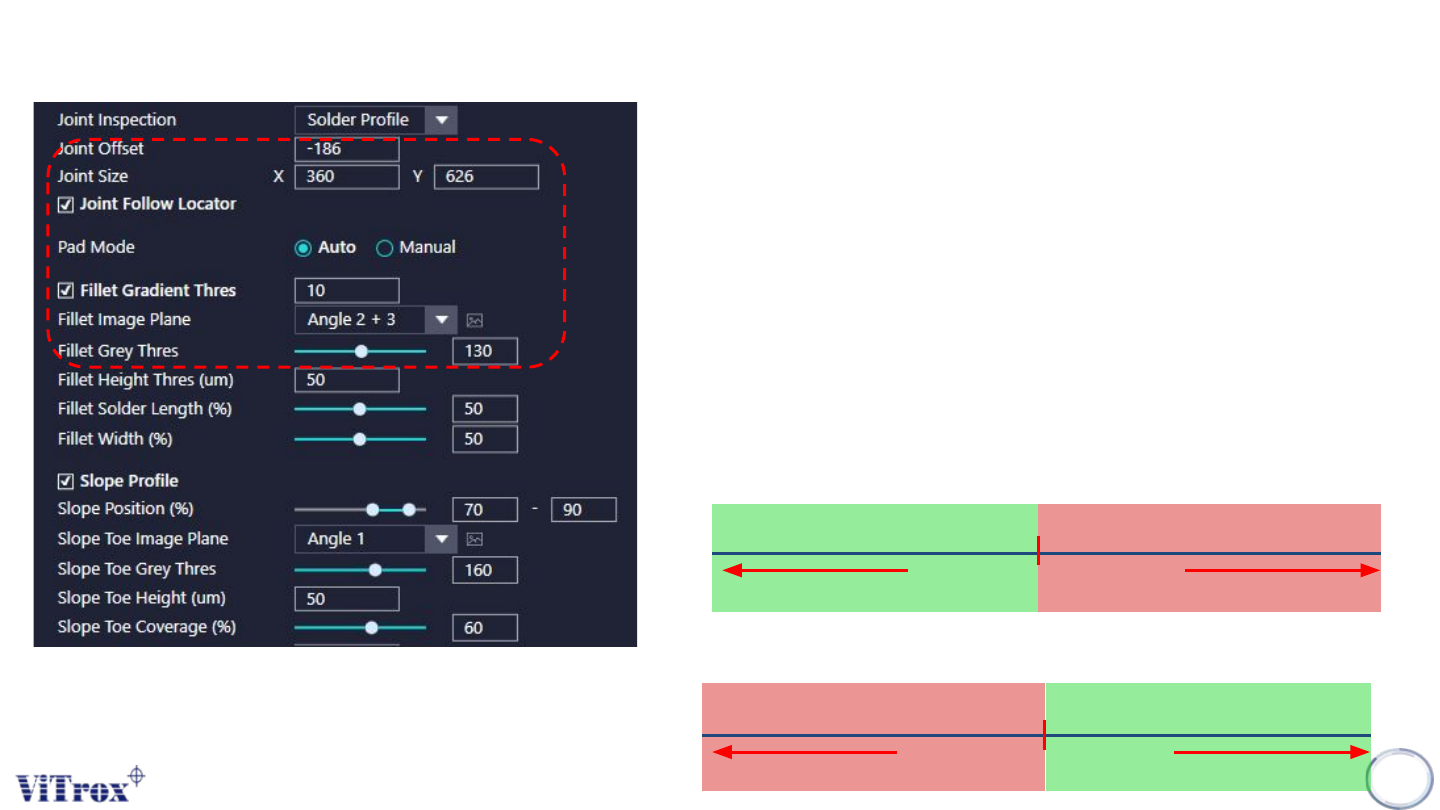

S-type Algorithm - Joint (Solder Profile Inspection)
119
1. Joint Offset & Joint Size
● To adjust the sizes and the offset for joint inspection boxes
2. Joint Follow Locator
● Tick this to enable the joint inspection ROI follow the locator.
3. Pad Mode
➔ Auto: Select this if you have epad & epin informations.
➔ Manual: Select this to self define the pad location.
4. Fillet Gradient Thres
● Tick this to enable gradient checking.
● Unit in degree.
5. Fillet Image Plane
● These are the types of 2D Lighting. Select the one with having highest contrast
among interested inspection region and the background.
● Usually choose angle 2+3.
6. Fillet Grey Thres
Grey Thres
Measured Grey Thres
PASS
FAIL
7. Fillet Height Thres
Height Thres
Measured Height Thres
PASSFAIL
Copyright © ViTrox All Rights Reserved.
S-type Algorithm - Joint (Solder Profile Inspection)
120
8. Fillet Solder Length (%) & Fillet Width (%)
● The overall pass criteria depends on:
a. Solder Width (%) > Solder Width Thres (%)
b. Solder Length (%) > Solder Length Thres (%)
c. Both solder Length and Solder Width must pass.
● Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (%) > Joint Height Thres (%).
c. OR Relation between 2D and 3D as pass criteria for single pixel
Width
Length
Bumpy Detection
Slope Detection
Length Detection
Copyright © ViTrox All Rights Reserved.
S-type Algorithm - Joint (Solder Profile Inspection)
121
1. Identify Pad Area:
● Must have epad information.
● If no manually add the pad
location.
2. Identify Solder Toe area:
● Good solder slope - Pass
● Flat Solder - Proceed to cold solder inspection.
Pass
Fail
Pass
3. Identify Cold Solder:
● The solder height threshold will affected by
the lead height (s,u) & Body Height (B) set.
(Next Page)
Flat solder / Excess Solder
