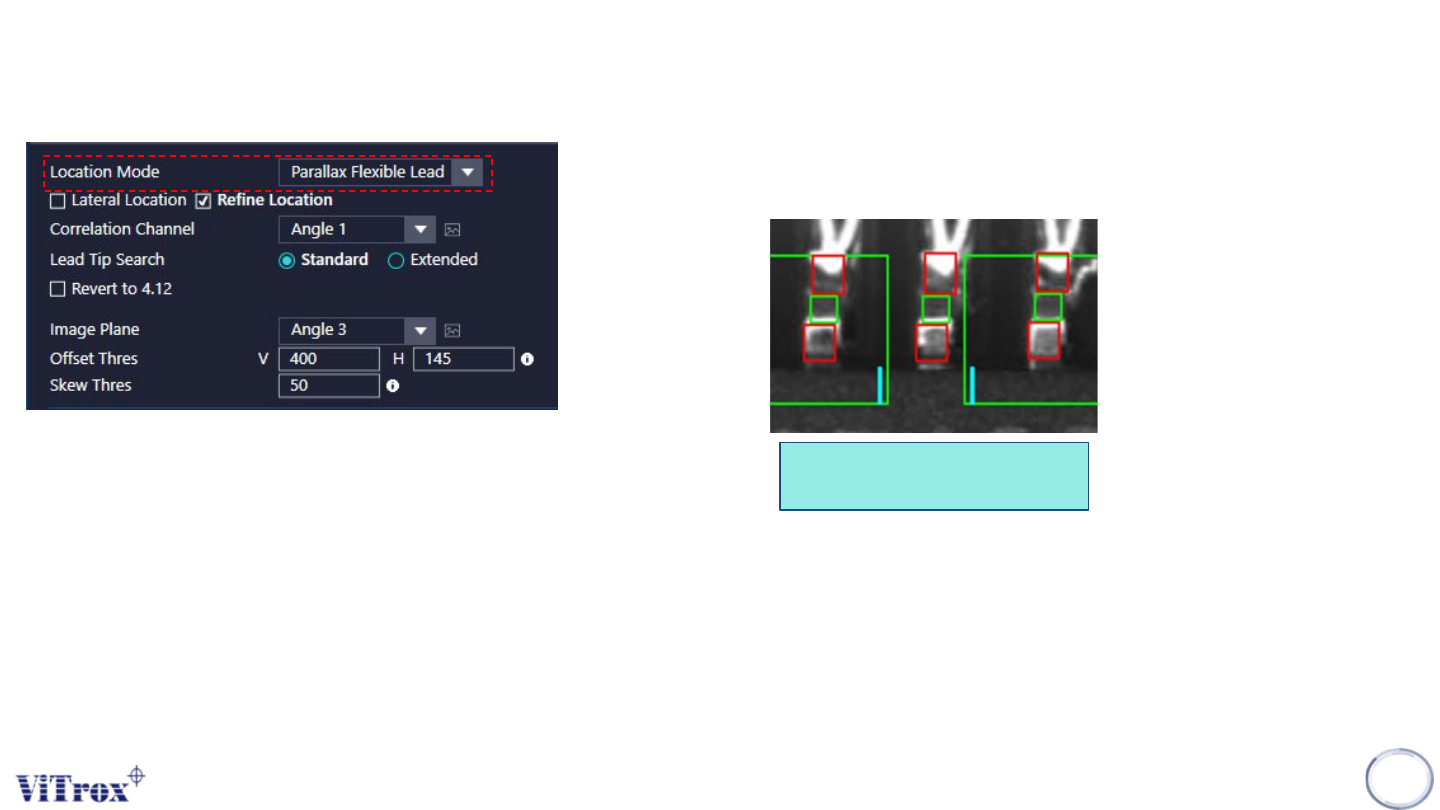

S-type Algorithm - Location Mode (Parallax Flexible Lead)
105
Toes and shoulders do not align
1. Setting same with correlation mode. Select this mode when
condition of leads as below
Copyright © ViTrox All Rights Reserved.
106

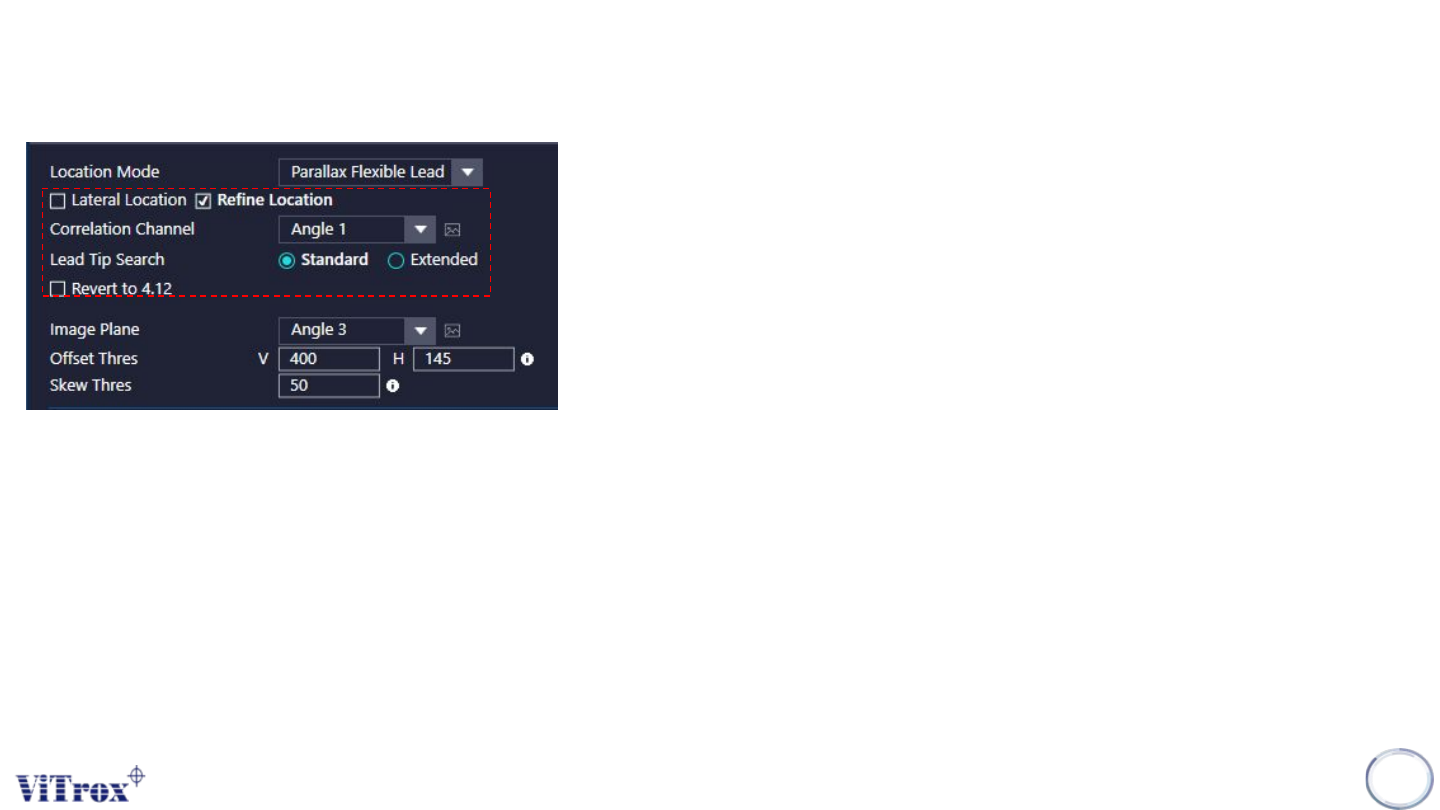

2. Lateral Location
● For Post Reflow, Tick this.
● For Pre Reflow, untick this.
● This can assist during joint inspection in location of the joints which having nice toe
fillets.
● There are occurrences when it does not correctly locate. (Bright Pad & Wide pads)
3. Refine Location
● Tick this to help to locate the fillet.
● Recommend to on this.
4. Correlation Channel
● Refers to the image used for location
5. Lead Tip Search
● Usually set to standard
6. Revert 4.12
● Tick & untick to see which one perform better..
S-type Algorithm - Location Mode (Parallax Flexible Lead)
Copyright © ViTrox All Rights Reserved.
107

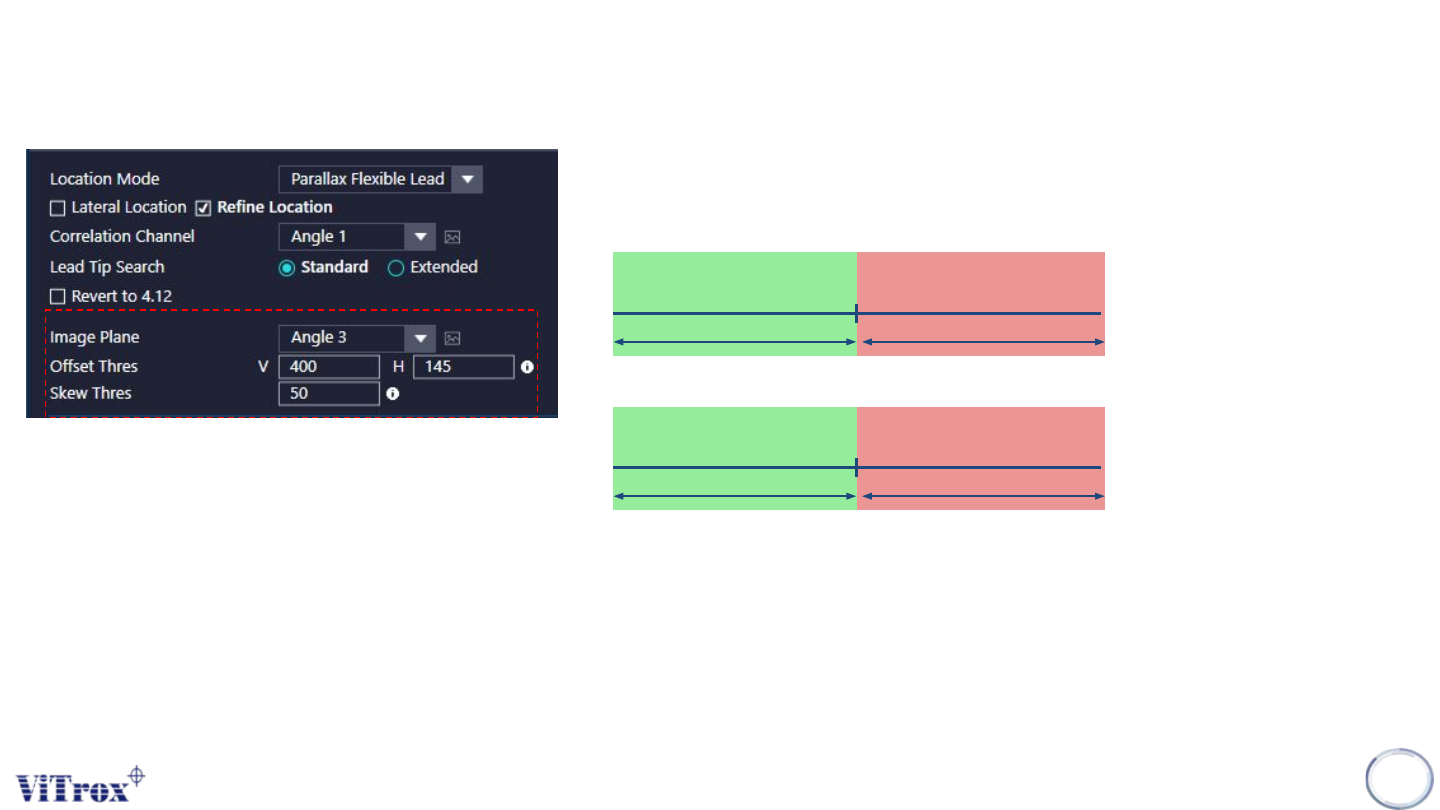

7. Image Plane
● Refers to the image used for presence/absence
8. Offset Thres
9. Skew Thres
Offset Thres
Pass Fail
Skew Thres
Pass Fail
S-type Algorithm - Location Mode (Parallax Flexible Lead)
