Copyright © ViTrox All Rights Reserved.

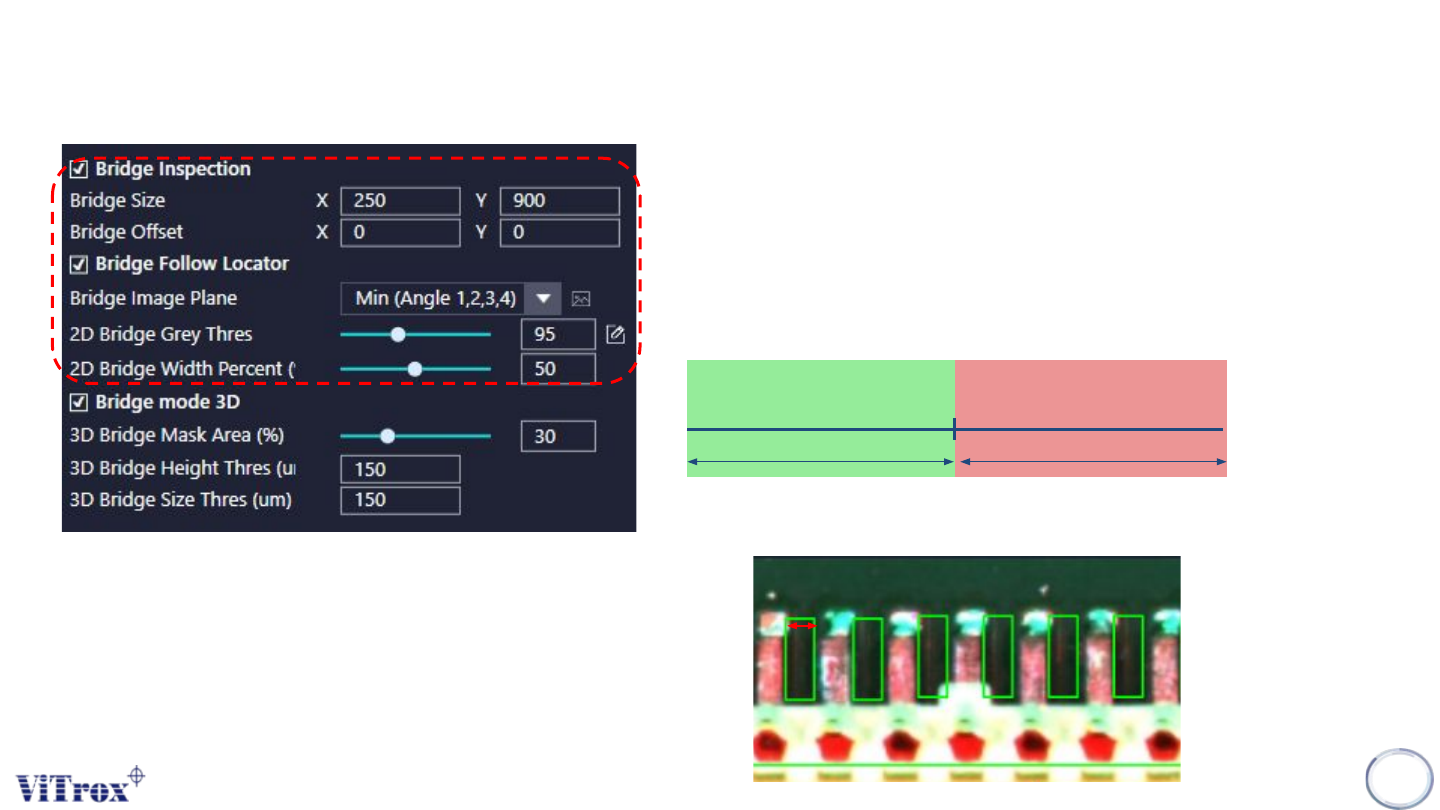

U-type Algorithm - 3D Multijoint (Bridging)
227
a. Bridge Inspection
● Enable or Disable Bridge Inspection
b. Bridge Size and Bridge Offset
● To adjust the size of Bridging Inspection boxes & Bridge Offset.
c. Bridge Follow Locator
● To allow the Bridging Inspection boxes follow the locator.
d. Bridge Image Plane
● Used Min (Angle 1,2,3,4)
e. 2D Bridge Grey Thres
f. 2D Width Bridge (%)
● To measure the total horizontal pixel per row in horizontal direction
2D Bridge Gray
Threshold
Pass Fail
Width
Copyright © ViTrox All Rights Reserved.

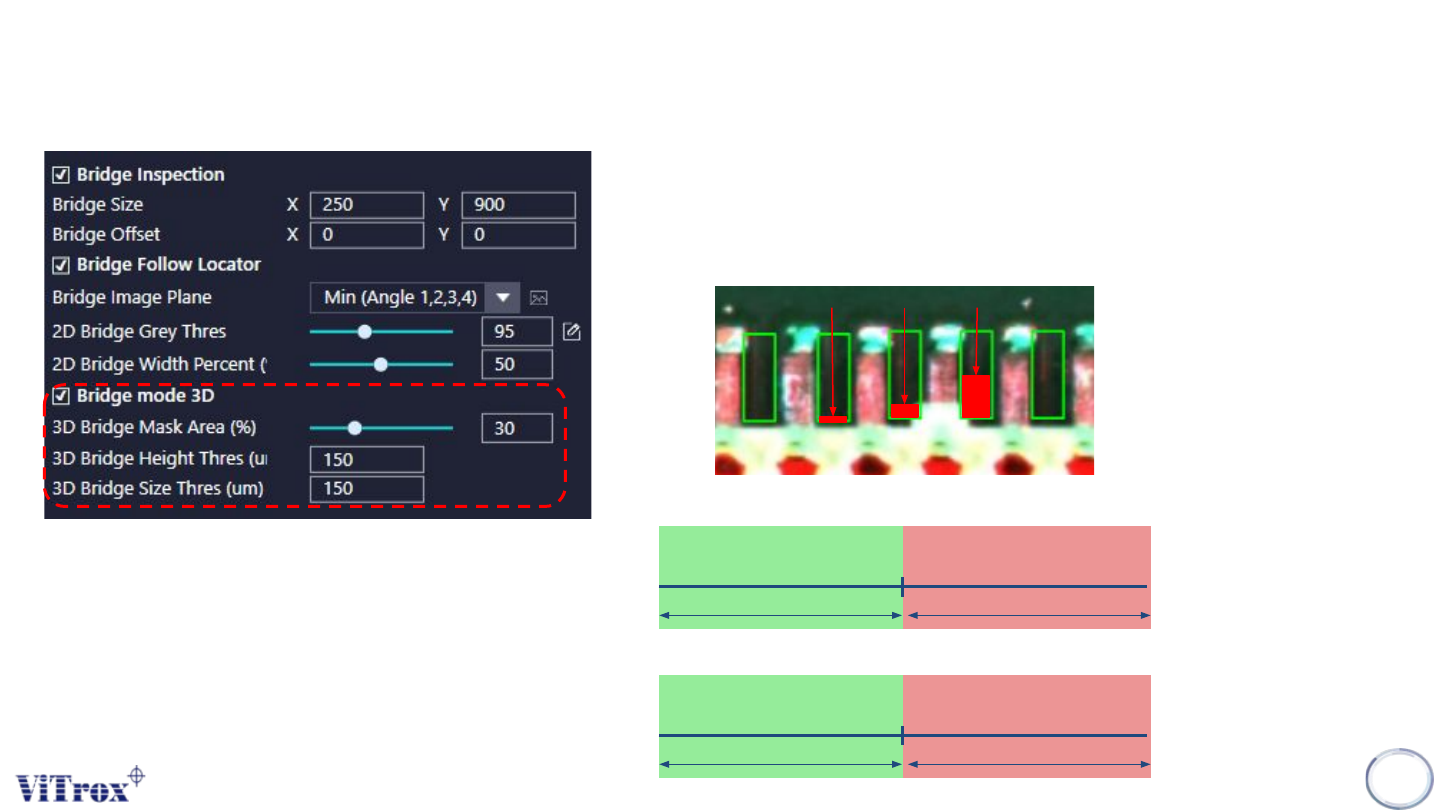

U-type Algorithm - 3D Multijoint (Bridging)
228
a. Bridge Mode 3D
● Enable or Disable 3D Bridge Inspection
b. 3D Bridge Mask Area (%)
● To adjust the size of Bridging Inspection boxes & Bridge Offset.
Mask
10%
Mask
20%
Mask
50%
c. 3D Bridge Height Thres (um)
.
d. 3D Bridge Size Thres (um)
3D Height Thres
Pass Fail
3D Size Thres
Pass Fail
Copyright © ViTrox All Rights Reserved.
