Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Terminal Reference)
69
1. Joint Image Plane
● Solder Inspection consists of 3 mode. Which are:
2. Joint Grey Thres
● These are the types of 2D Lighting. Select the one with
having highest contrast among interested inspection region
and the background.
● Usually choose angle 2+3
3. Joint Height Thres
Grey Thres
Measured Grey Thres
PASS
FAIL
Height Thres (um)
Measured Height(um)
PASS
FAIL
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Terminal Reference)
70

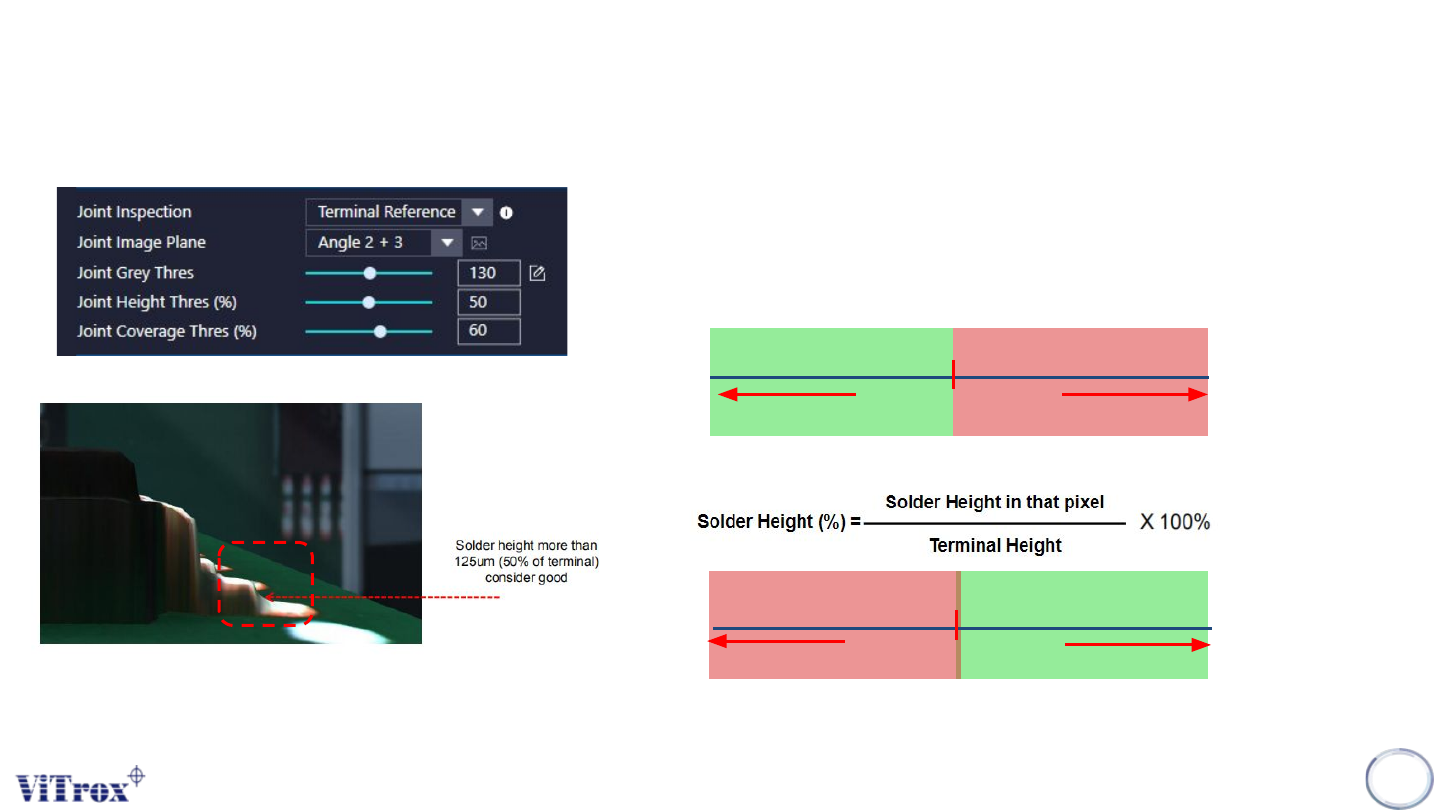

4. Joint Coverage Thres
● To set the percentage to pass the joint inspection.
Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (%) > Joint Height Thres (%).
The overall pass criteria depends on:
Joint Coverage (%) > Joint Coverage Thres (%)
where,
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Base Reference)
71
Base Reference
a. Joint Image Plane
● These are the types of 2D Lighting. Select the one with having highest
contrast among interested inspection region and the background.
● Usually choose angle 2+3
b. Joint Grey Thres
● Usually set to 160
c. Joint Height Thres
d. Joint Coverage Thres(%)
● To set the percentage to pass the joint inspection.
Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (um) > Joint Height Thres (um).
The overall pass criteria depends on:
Joint Coverage (%) > Joint Coverage Thres (%)
where,
Grey Thres
Measured Grey Thres
PASS
FAIL
Height Thres (um)
Measured Height(um)
PASS
FAIL
