Copyright © ViT rox All Rights Reserved . 209 Multi-Joint Inspection Algorithm
Copyright © ViTrox All Rights Reserved.

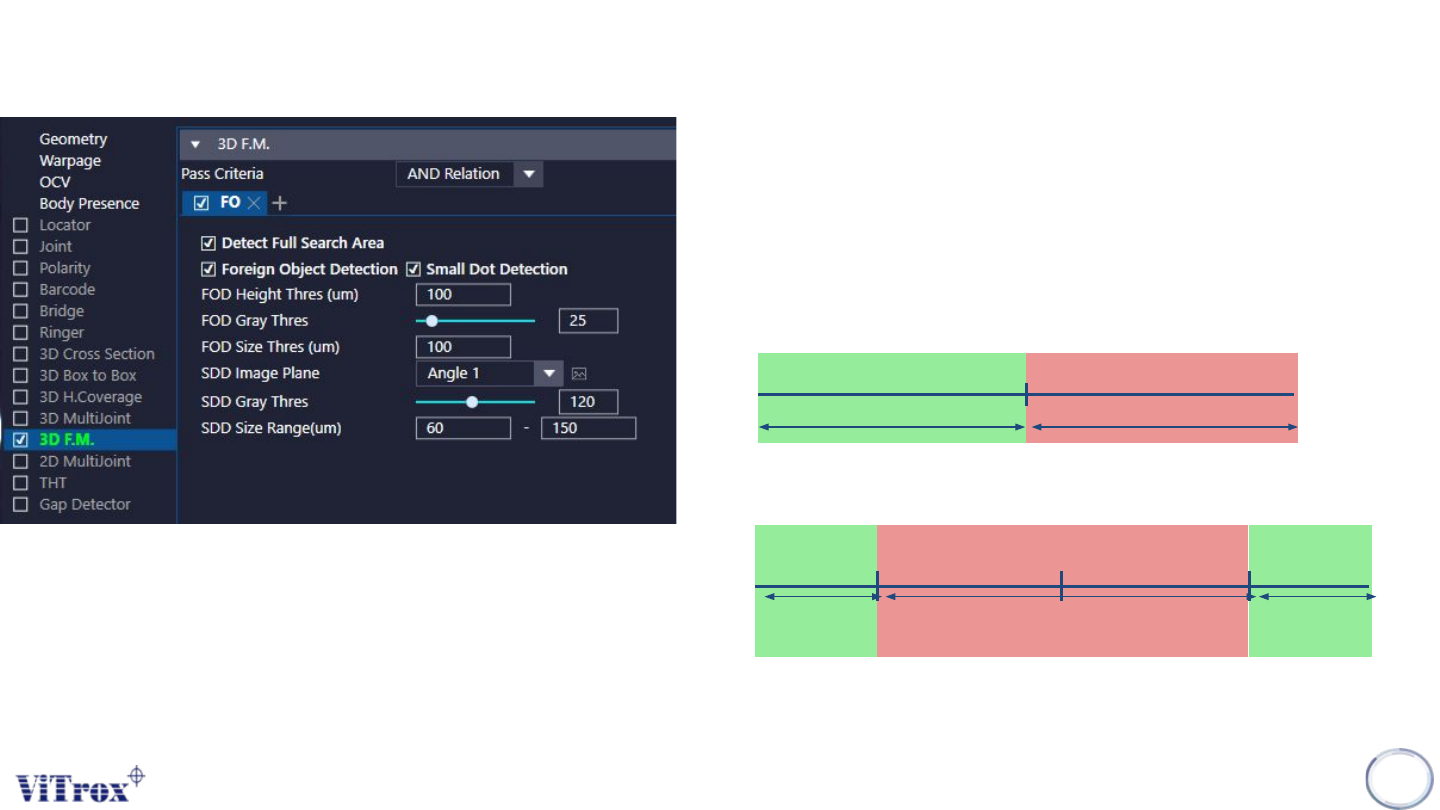

U-type Algorithm - 3D Foreign Material
208
f. Small Dot Detection
● Tick this to enable Small Dot Detection.
● Small Dot Detection based on 2D Grayscale.
g. SDD Image Plane
● These are the types of 2D Lighting. Select the one with having
highest contrast among the interested inspection region and the
background.
h. SDD Gray Thres
i. FOD Size Range (um)
● OR Relation between 2D and 3D as pass criteria for single pixel.
SDD Gay Thres
Pass Fail
Max Size
Pass
Fail
Min Size
Pass
Copyright © ViTrox All Rights Reserved.
209
Multi-Joint Inspection Algorithm
Copyright © ViTrox All Rights Reserved.

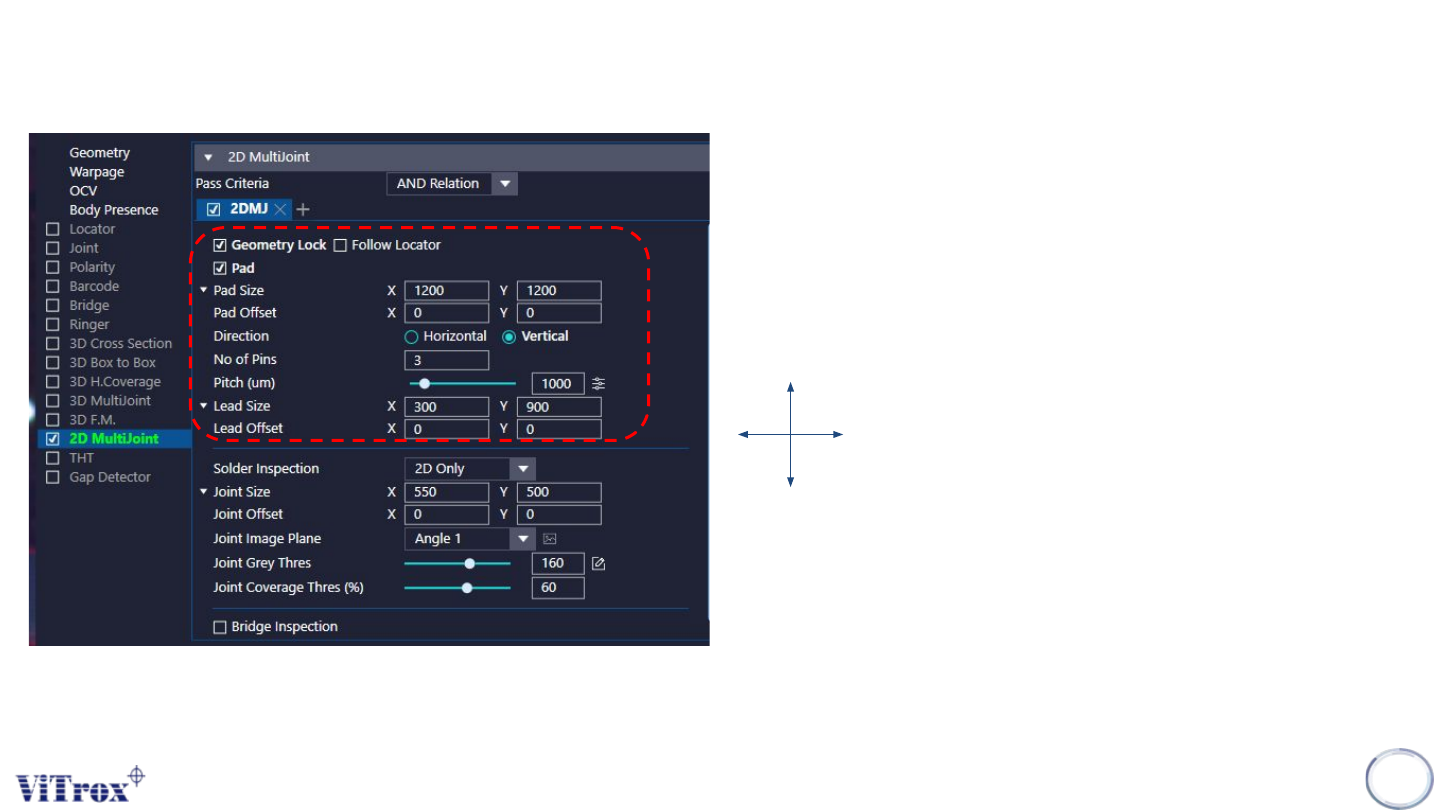

U-type Algorithm - 2D Multi Joint
210
a. Geometry Lock
● To enable the box offset into symmetric direction only.
b. Follow Locator
● Tick to enable the joint inspection box follow locator.
c. Pad
● Tick this to define the pad location.
d. Pad Size & Pad Offset
● To adjust the Pad size and pad offset.
e. Direction
f. No of Pins
● To adjust the number of pin.
g. Pitch
● To adjust the distance between the pins.
h. Lead Size and Lead Offset
● To adjust the Lead inspection box size & Lead inspection box offset.
Horizontal
Vertical
