Body Marking Inspection (OCV)
Copyright © ViTrox All Rights Reserved.
OCV Inspection
268
1
2
3
4
1. OCV (Optical Character Verification) is an algorithm that used to inspect printed character and
marking on the components.
● It used the template matching technology based on the template learn on a good component.

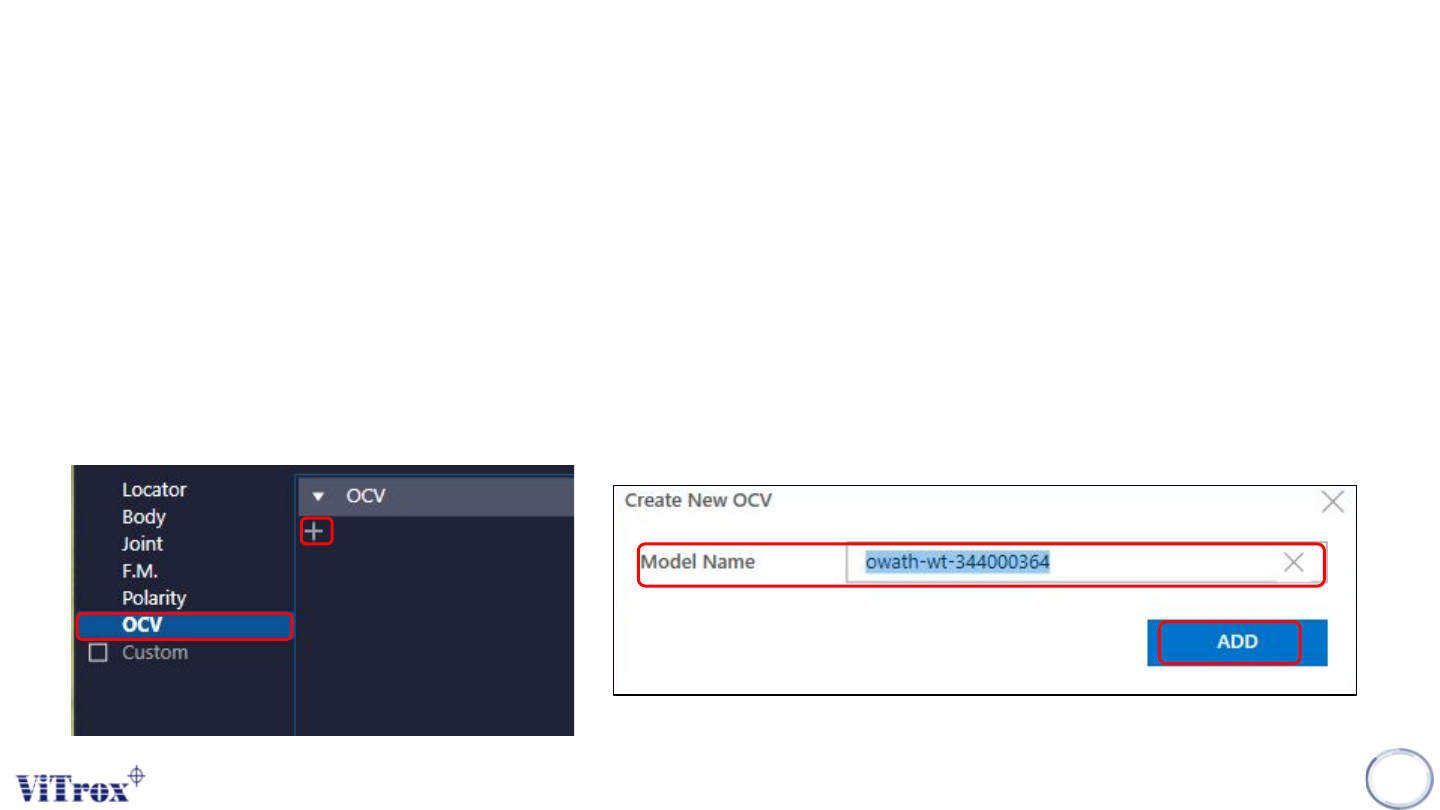

2. Follow steps below to create OCV templates.
a. Click on “OCV” Tab.
b. Click on “Add” icon.
c. Create the OCV model name. (Usually used back the default naming)
d. Click on “ADD”.
