Lead Ringer - Parameter Description
144

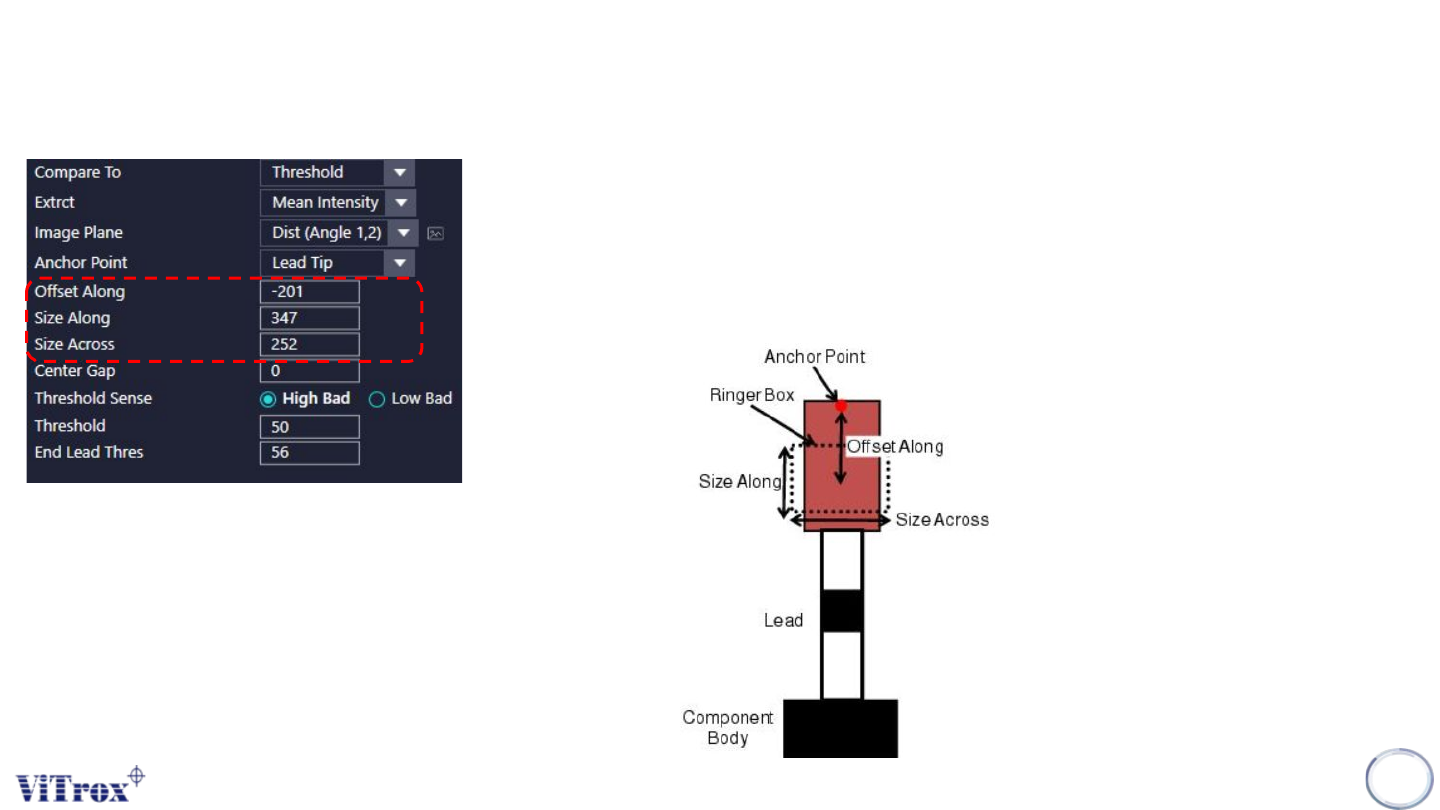

5. Offset Along
● To adjust the offset of ROI from the anchor point set.
6. Size Along
● To adjust the size of ROI (Y-Direction).
7. Size Across
● To adjust the size of ROI (X-Direction).
Copyright © ViTrox All Rights Reserved.
Lead Ringer - Parameter Description
145

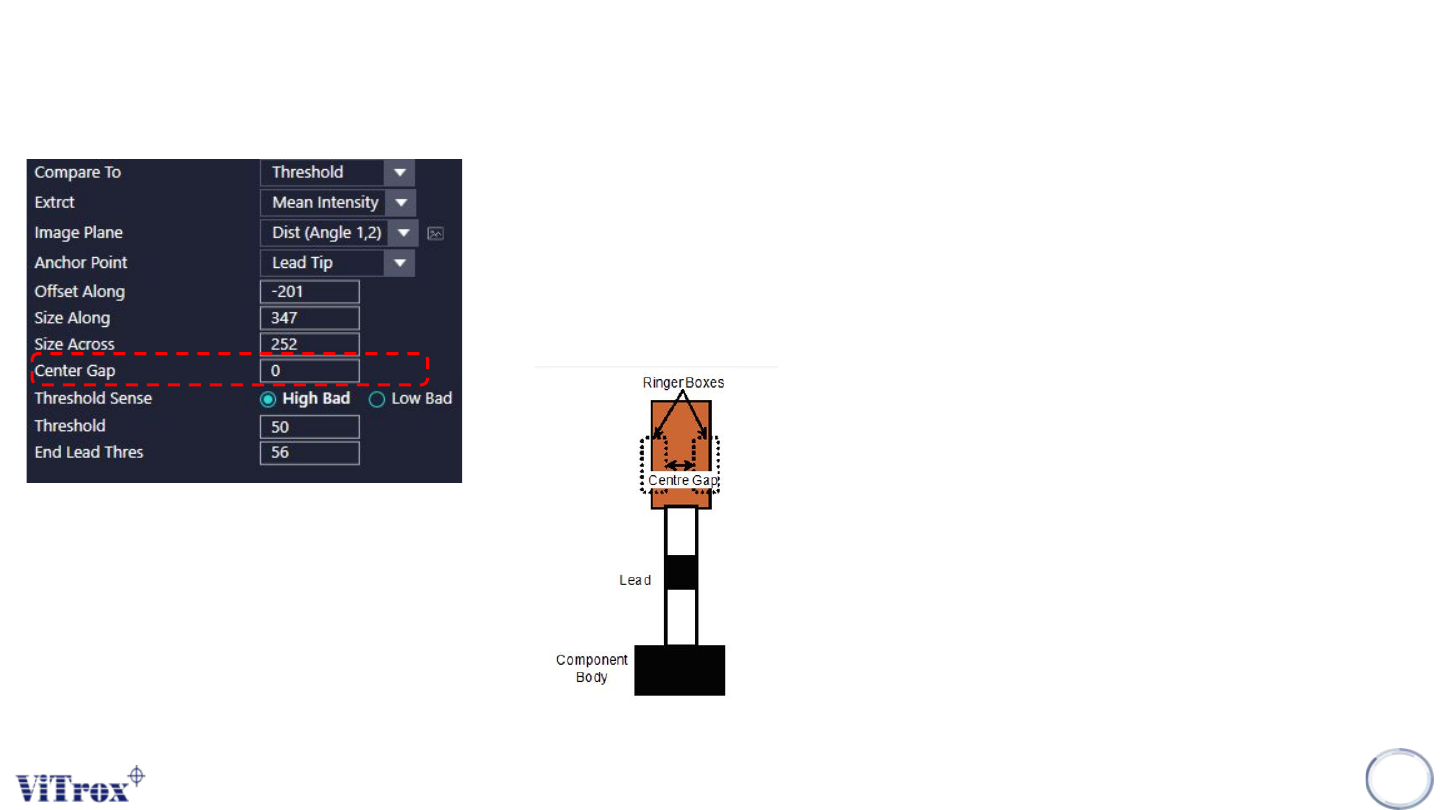

8. Centre Gap
● Enables the user to separate the ringer box into two for each lead.
● The RInger comparison will be carried on the resulting sum of the values with those two boxes.
● The Centre Gap option is used when a change appears on the sides of the lead/solder areas, or when an
unwanted reflection is present in the middle of the lead width.
● Note that inserting a centre gap different from zero should lead to a revision of the current thresholds.
Copyright © ViTrox All Rights Reserved.
Lead Ringer - Parameter Description
146
Threshold
Pass
Fail
Threshold
Pass
Fail

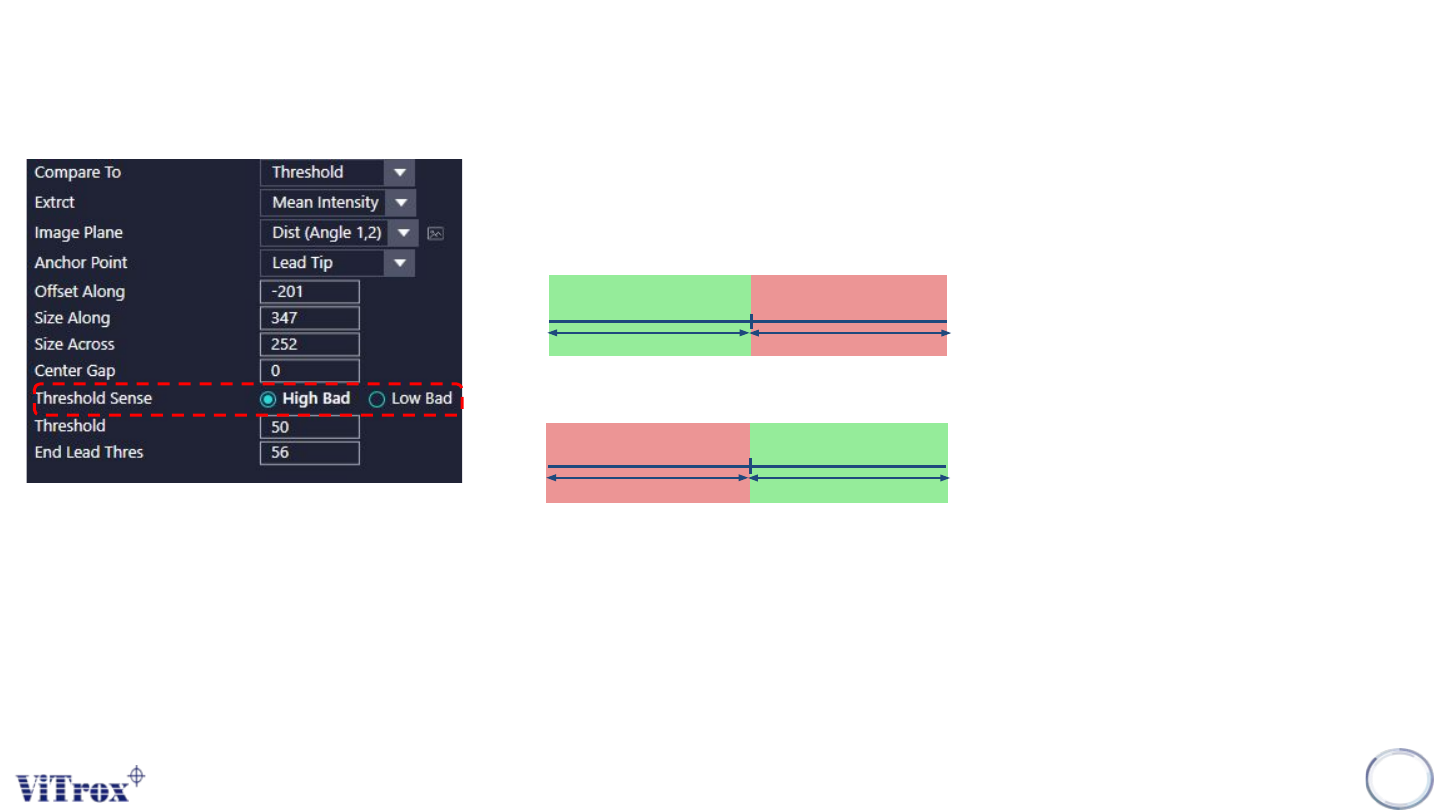

9. Threshold Sense
● Enable user to select the Logic to fail the defects.
● Two Modes as follow:
➔ High Bad: Fail when the greyscale measured higher than the threshold set.
➔ Low Bad: Fail when the greyscale measured higher than the threshold set.
