Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Body
58

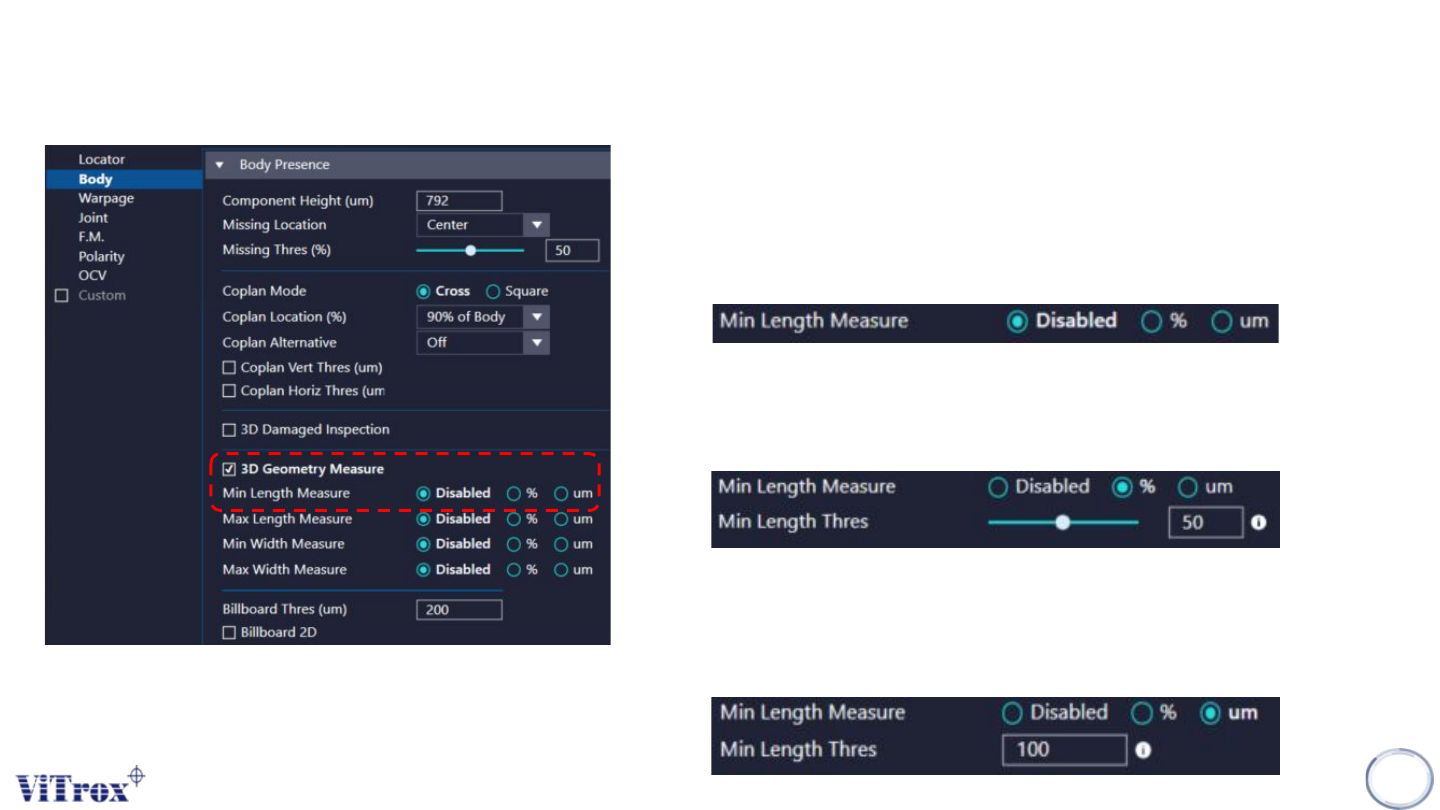

1. 3D Geometry Measure
● Tick this to enable the 3D Damaged inspection.
● Consists of minimum/maximum measure for length/width.
● Unit can be in % or um.
2. Min Length Measure
a. Disable to off this inspection.
b. Unit in %
● If Expected component length = 1000um & Min Length Thres set
to 50%
● Fail when Measured Length < 1000um - [1000um*(50/100)]
c. Unit in um
● If Expected component length = 1000um & Min Length Thres set
to 100um
● Fail when Measured Length < 1000um - 100um
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Body
59

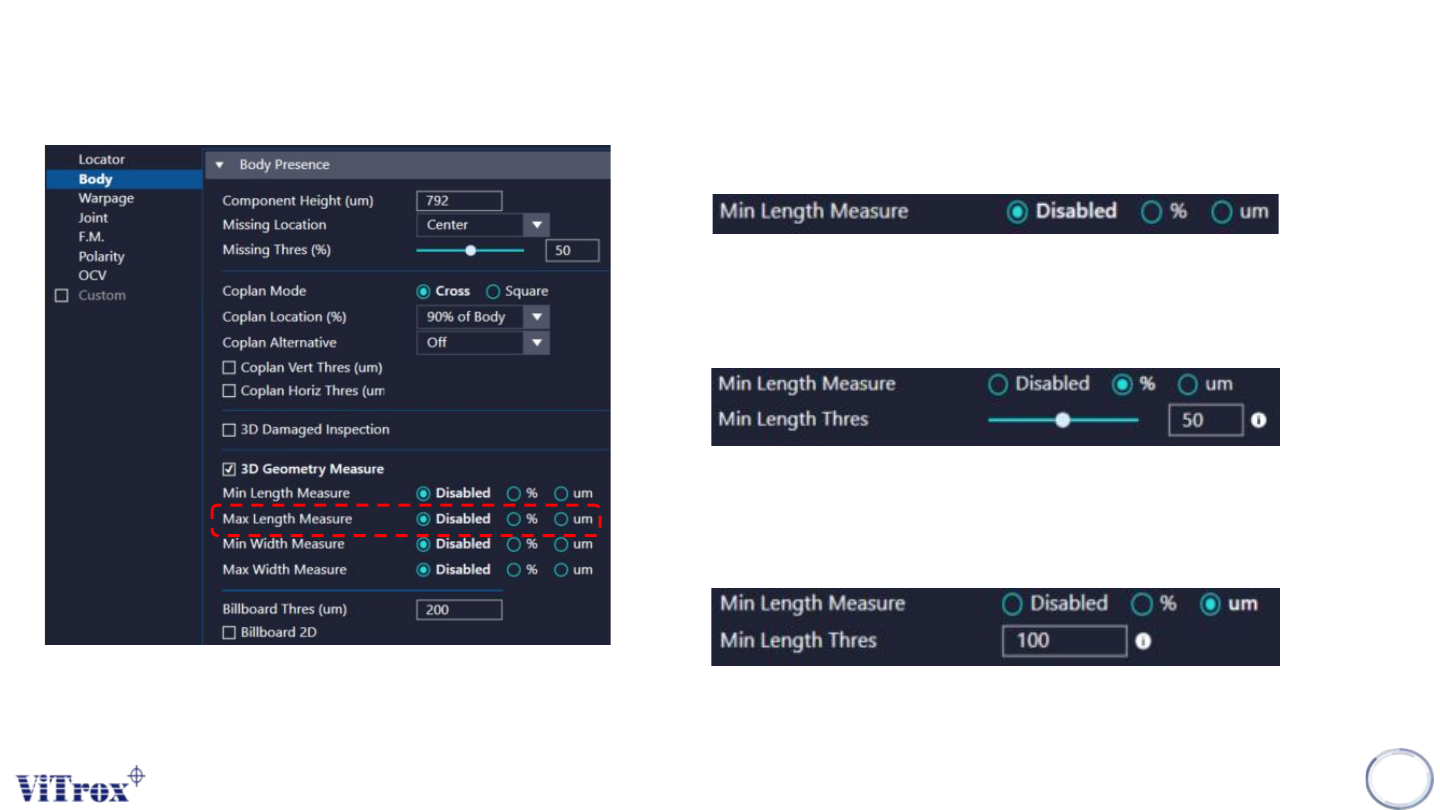

3. Max Length Measure
a. Disable to off this inspection.
b. Unit in %
● If Expected component length = 1000um & Max Length Thres
set to 50%
● Fail when Measured Length > 1000um + [1000um*(50/100)]
c. Unit in um
● If Expected component length = 1000um & MAx Length Thres
set to 100um
● Fail when Measured Length > 1000um + 100um
Copyright © ViTrox All Rights Reserved.
60
PASS FAILFAIL
Expected Component Length - Min Thres (um/%) Expected Component Length + Max Thres (um/%)
Software measured length in
within this range will pass
and out of this range will fail.
B-type Algorithm - Body
