B-type Algorithm - Locator (Location)

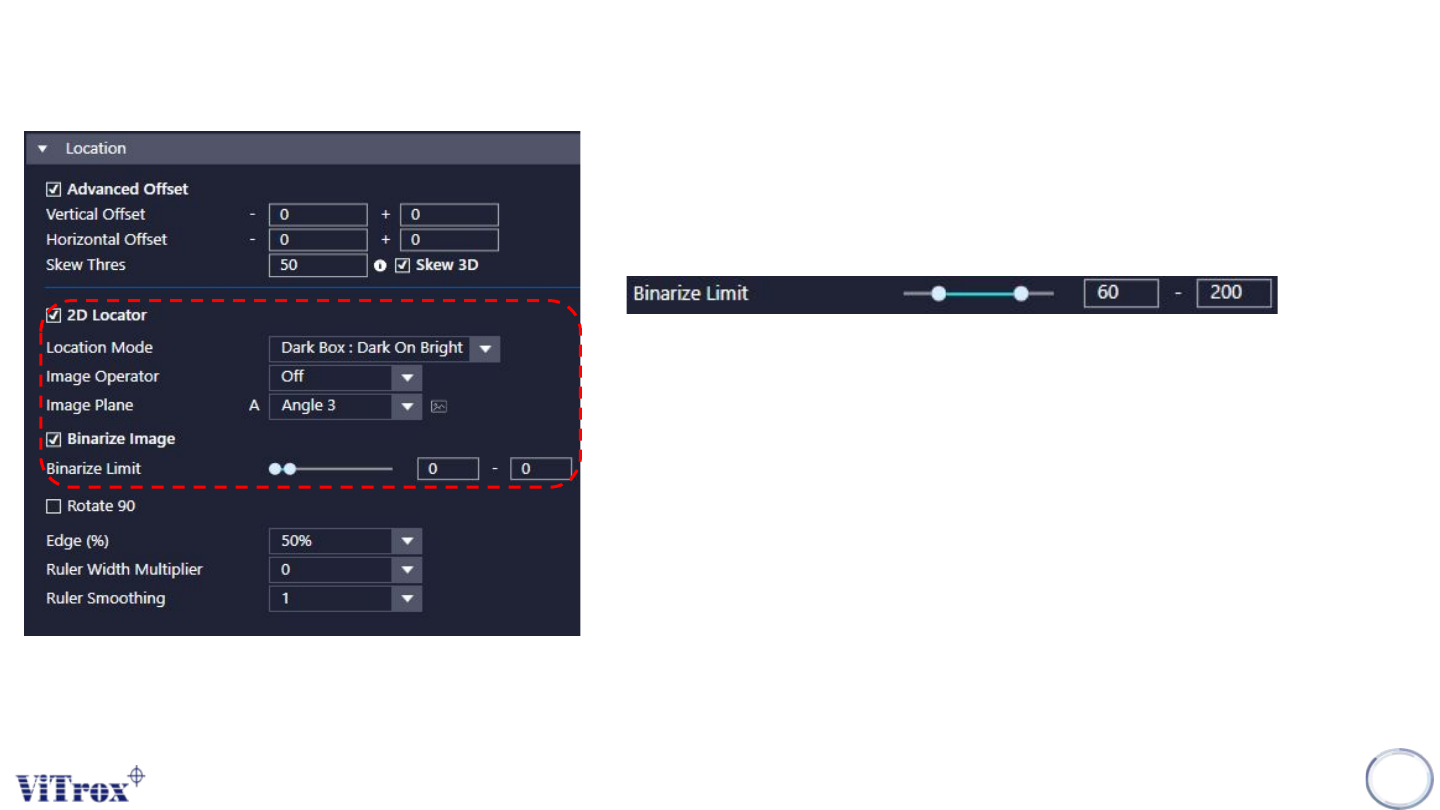

h. Binarize Image

● Tick this to enable binarize image.

i. Binarize Limit

● Grey scale below Binarize Limit turn 255.

● Grey scale above Binarize Limit turn 0.

j. Edge (%)

●

k. Ruler width Multiplier

● To adjust the size for the ruler

l. Ruler Smoothing

● To filter out the noises at the edge

● Enable this when the edges are not clear.

B-type Algorithm - Locator (Location)

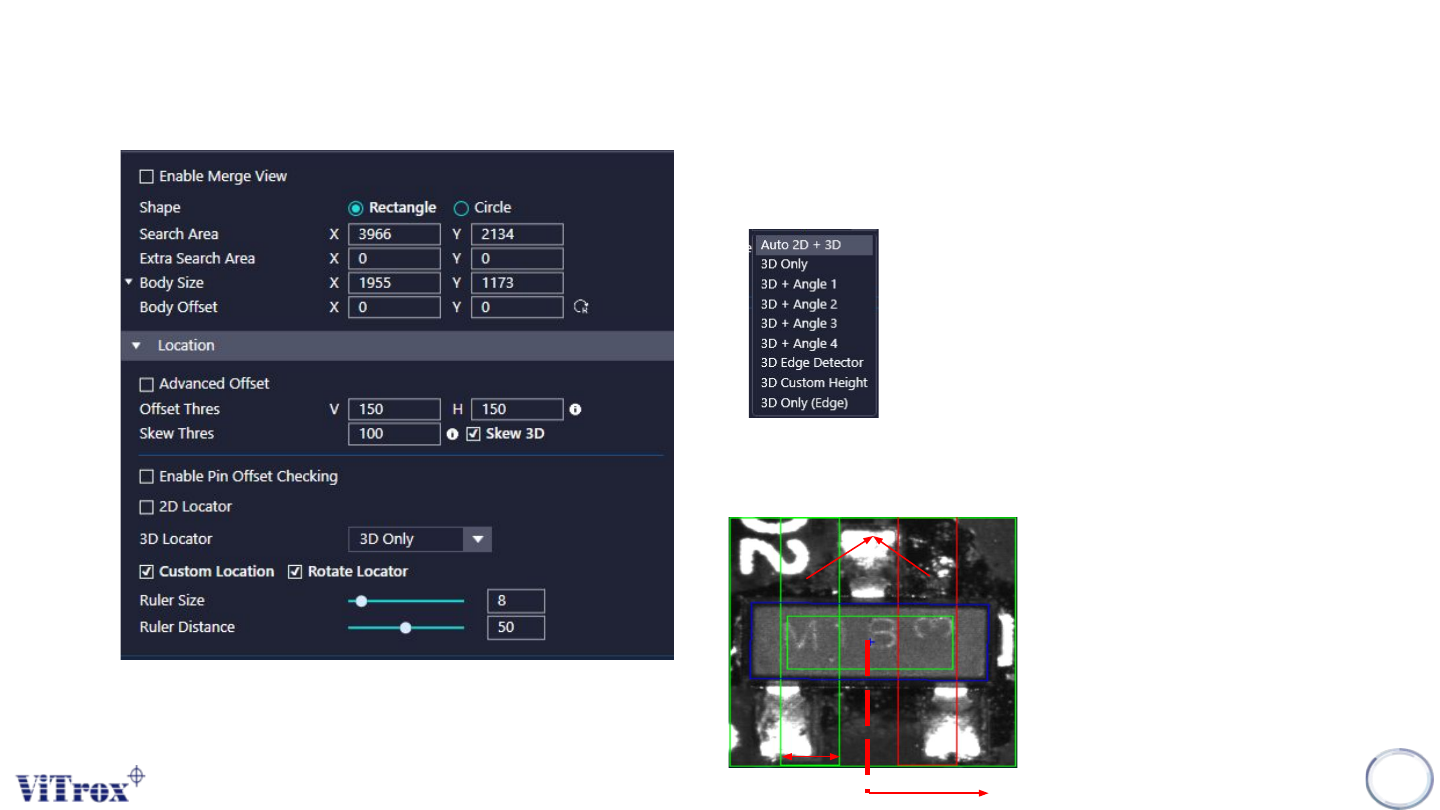

a. 3D Locator

● Able to select 3D only or 3D & 2D to locate.

● There are a few of choices as follow:

b. Custom Location.

● Able to adjust ruler size and ruler distance

Ruler

Ruler Size

Ruler Distance
