U-type Algorithm - 2D Multi Joint
210
a. Geometry Lock
● To enable the box offset into symmetric direction only.
b. Follow Locator
● Tick to enable the joint inspection box follow locator.
c. Pad
● Tick this to define the pad location.
d. Pad Size & Pad Offset
● To adjust the Pad size and pad offset.
e. Direction
f. No of Pins
● To adjust the number of pin.
g. Pitch
● To adjust the distance between the pins.
h. Lead Size and Lead Offset
● To adjust the Lead inspection box size & Lead inspection box offset.
Horizontal
Vertical
Copyright © ViTrox All Rights Reserved.

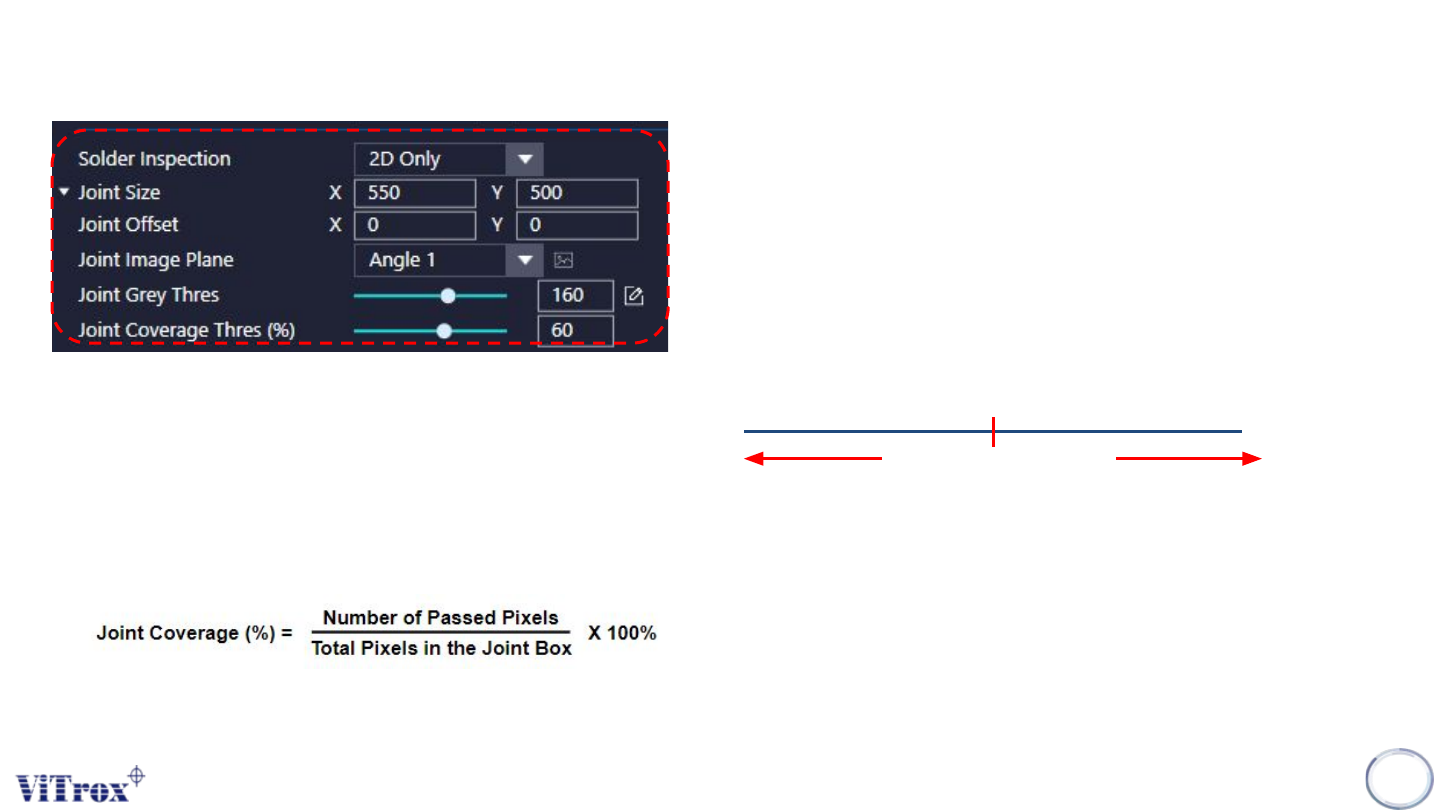

a. Solder Inspection
● To enable the box offset into symmetric direction only.
b. Joint Size & Joint Offset
● To adjust the size of Joint Inspection Box & offset of Joint Inspection
Box.
c. Joint Image Plane
● These are the types of 2D Lighting. Select the one with having
highest contrast among pin region and the background.
d. Joint Grey Thres
e. Joint Coverage Thres
● To set the percentage to pass the joint inspection.
U-type Algorithm - 2D Multi Joint
211
Grey Thres
Measured Grey Thres
PASS FAIL
Pass Criteria for single pixel:
a. Measured Grayscale < Joint Grey Thres
b. Solder Height (%) > Joint Height Thres (%).
The overall pass criteria depends on:
Joint Coverage (%) > Joint Coverage Thres (%)
where,
Copyright © ViTrox All Rights Reserved.
U-type Algorithm - 2D Multi Joint
212

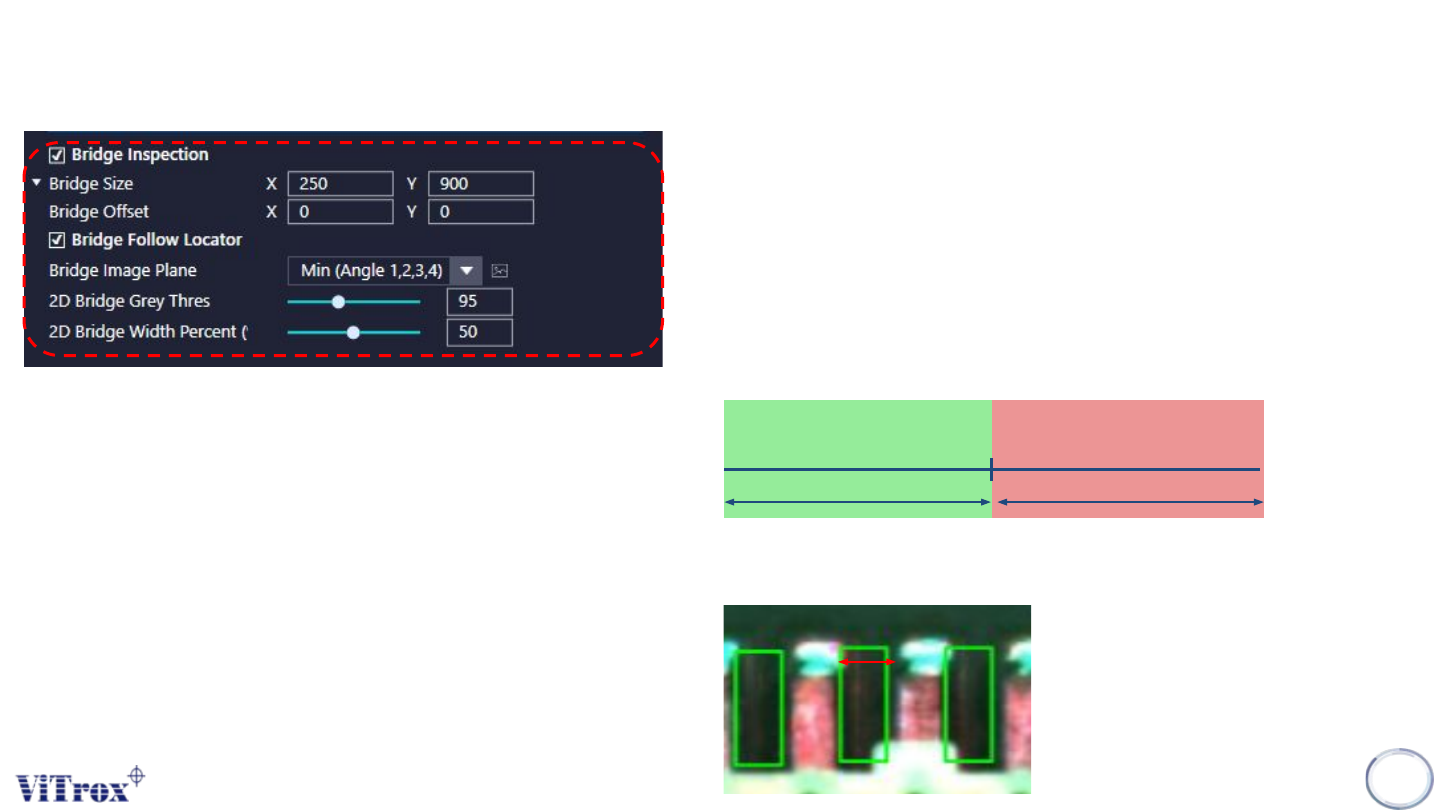

a. Bridge Inspection
● Tick this to enable the Bridge Inspection.
b. Bridge Size & Bridge Offset
● To adjust the size of Bridge Inspection Box & offset of Bridge
Inspection Box
c. Bridge Follow Locator
● Tick this to enable the Bridge Inspection Box to follow the locator.
d. Bridge Image Plane
● These are the types of 2D Lighting. Select the one with having
highest contrast among pin region and the background.
e. 2D Bridge Grey Thres
f. 2D Bridge Width Percent
● To set the width percentage to fail the Bridging Inspection
2D Bridge Gray
Threshold
Pass Fail
Width
