Copyright © ViT rox All Rights Reserved . 81 Joint Bridging Inspection
Copyright © ViTrox All Rights Reserved.
80

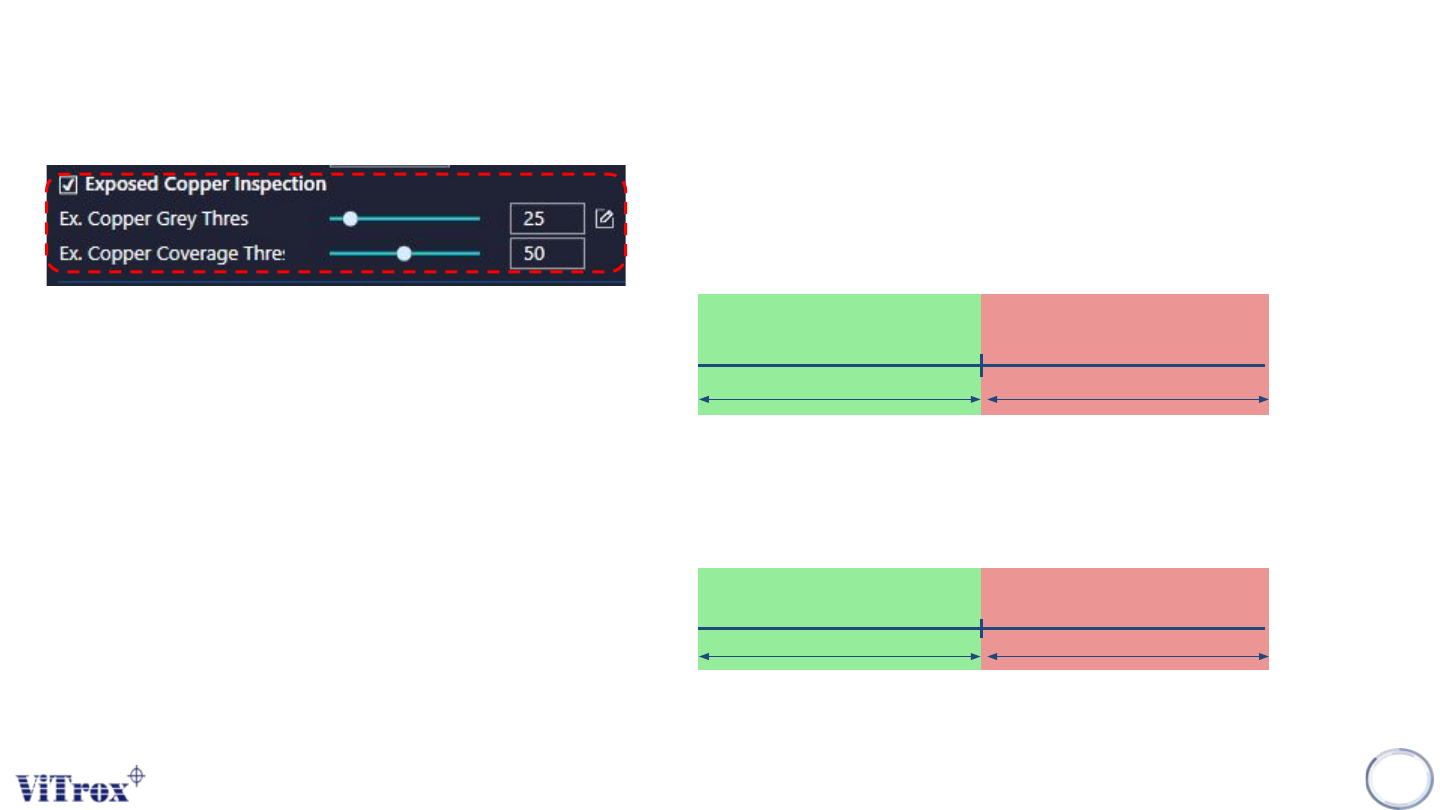

a. Exposed Copper Inspection
● Enable or Disable Exposed Copper Inspection
b. Exposed Copper Grey Threshold
● Grey Treshold for exposed copper
c. Exposed Copper Coverage Threshold (%)
● Threshold to fail exposed copper by Area of Coverage
Exposed Copper Gray
Threshold
Pass Fail
(Exposed Copper)
Exposed Copper
Coverage Threshold
Pass Fail
B-type Algorithm - Joint (Exposed Copper)
Copyright © ViTrox All Rights Reserved.
81
Joint Bridging Inspection
Copyright © ViTrox All Rights Reserved.
B-type Algorithm - Joint (Bridging)
82
a. Bridge Inspection
● Enable or Disable Bridge Inspection
b. Bridge Follow Locator
● To allow the Bridging Inspection boxes follow the locator.
c. Bridge Image Plane
● Used Min (Angle 1,2,3,4)
d. 2D Bridge Grey Thres
e. 2D Width Bridge (%)
● To measure the total horizontal pixel per row in horizontal direction
2D Bridge Gray
Threshold
Pass Fail
Width
