S-type Algorithm - Bridge

151

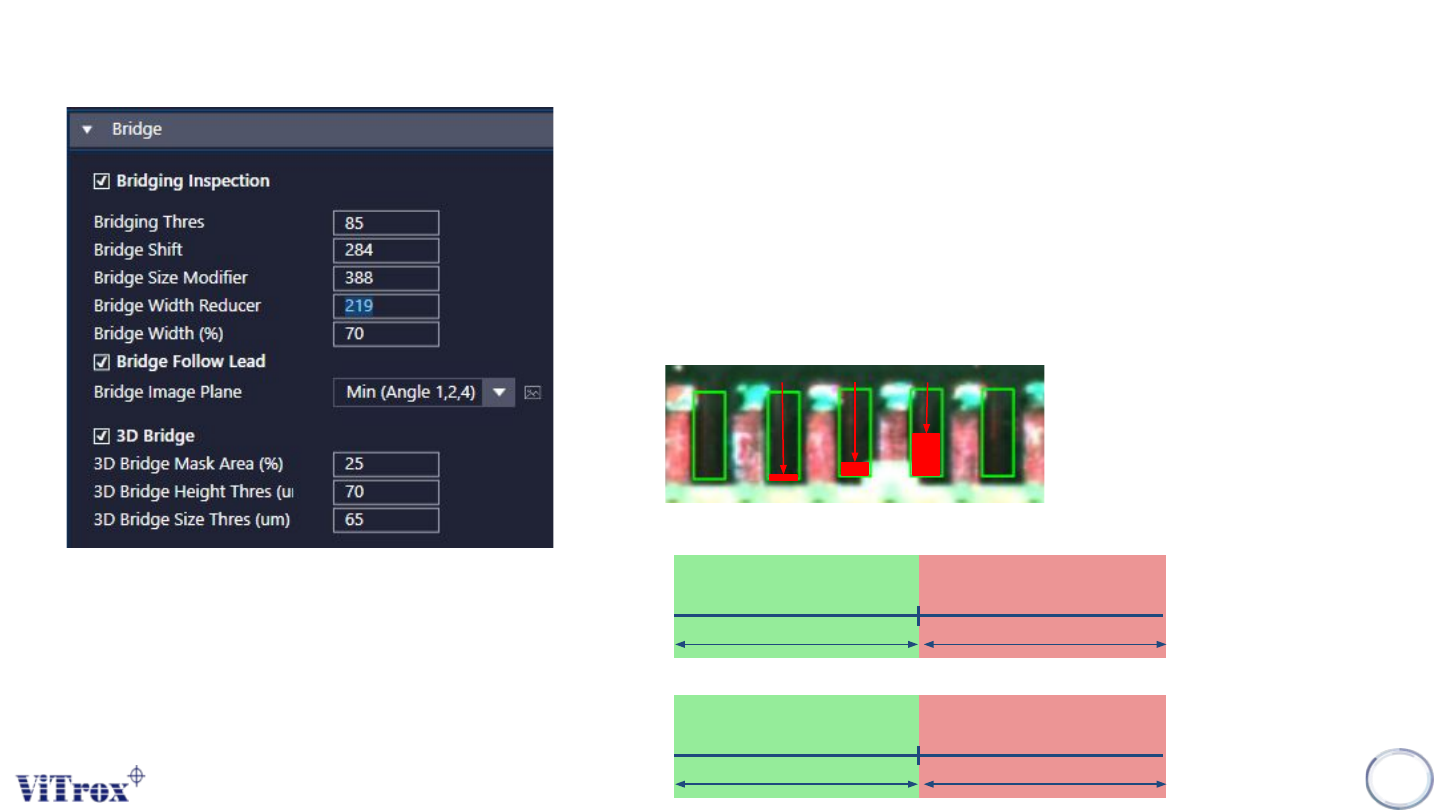

1. Bridging Inspection

● Tick to enable bridging inspection.

2. Bridge Shift

● To adjust the offset of bridging inspection boxes.

● Unit in um.

3. Bridge Size Modifier & Bridge Width Reducer

● To adjust the length & width for bridging inspection boxes.

Bridge

Width

Bridge

size

4. Bridge Width (%)

● To adjust the minimum width of the foreign material to fail as

bridging.

Bridge Width (%)

Pass Fail

S-type Algorithm - Bridge

152

5. Bridge Follow Lead

● To allow the Bridging Inspection boxes follow the lead locator.

6. Bridge Image Plane

● Used Min (Angle 1,2,3,4)

7. 3D Bridge

● Enable or Disable 3D Bridge Inspection

8. 3D Bridge Mask Area (%)

● To adjust the size of Bridging Inspection boxes & Bridge Offset.

Mask

10%

Mask

20%

Mask

50%

9. 3D Bridge Height Thres (um)

10. 3D Bridge Size Thres (um)

3D Height Thres

Pass Fail

3D Size Thres

Pass Fail
