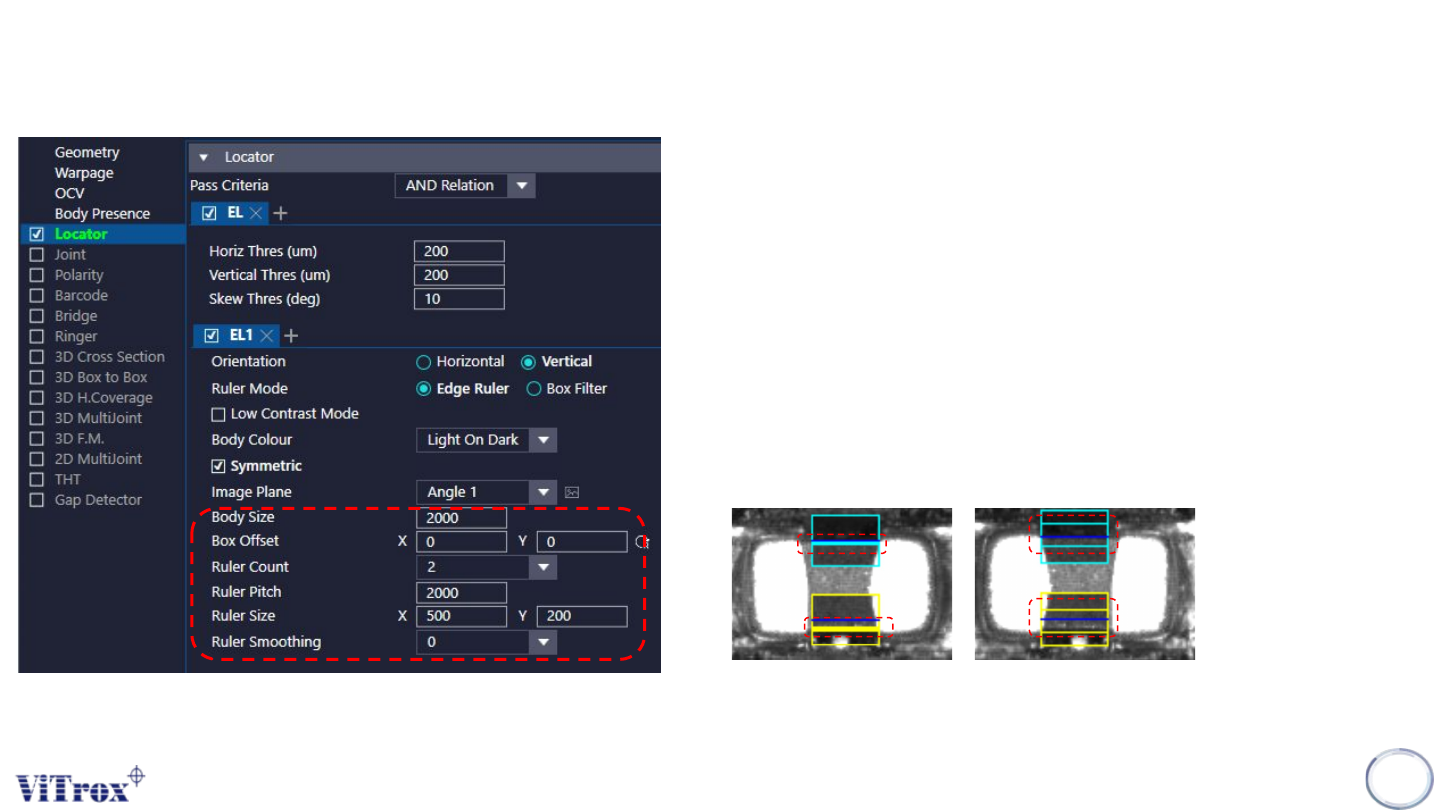

U-type Locator - Edge Locator

168

k. Body Size & Body Offset

● To adjust the body size and body offset.

l. Ruler Count

● To set the number of inspection box (Ruler).

● If “Skew” is one of the inspection criteria, The ruler count must set to

m. Ruler Pitch

● To adjust the distance within two ruler.

n. Ruler Smoothing

● To adjust the size for the ruler.

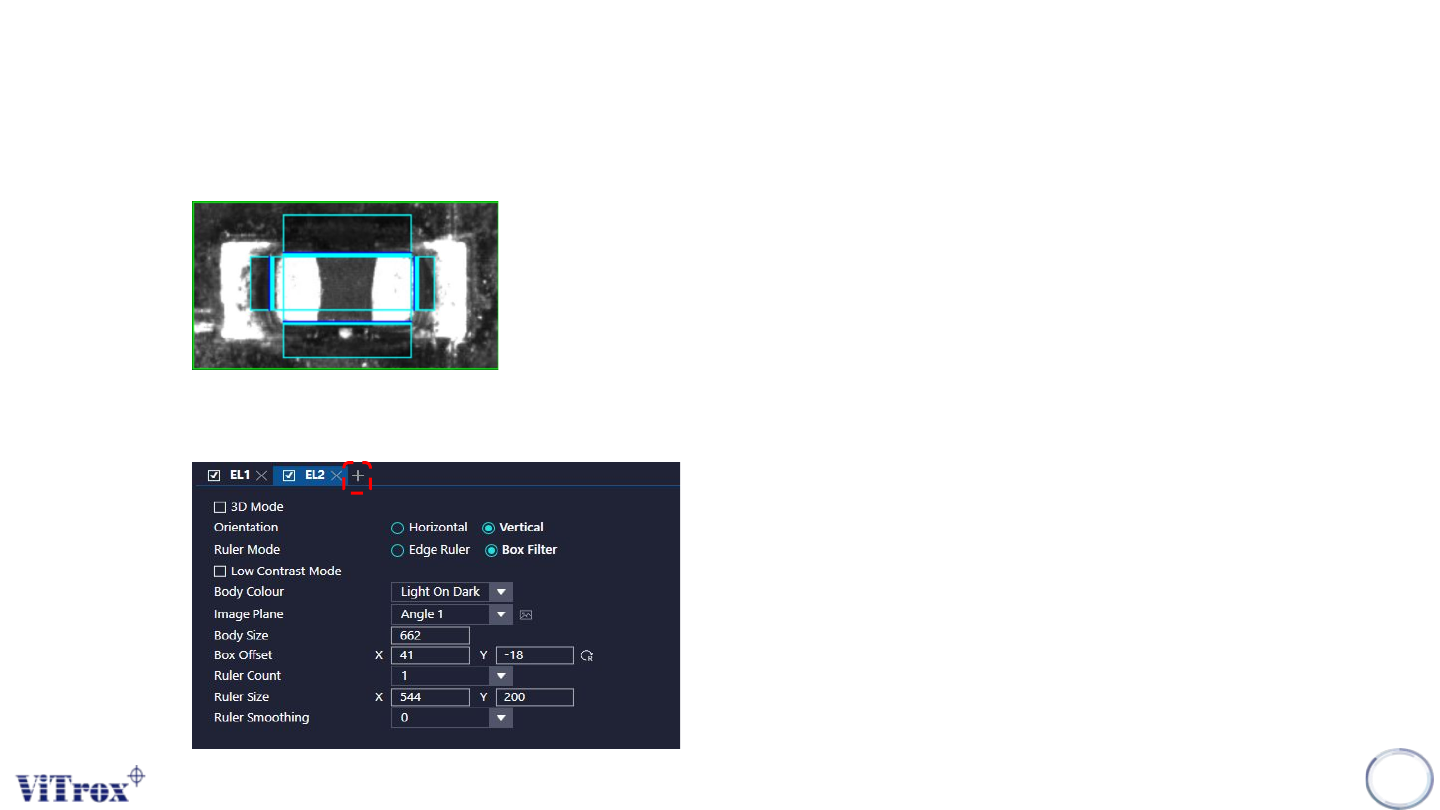

U-type Locator - Edge Locator

169

1. For U-type Edge Locator, Usually Horizontal & Vertical ruler will used together to locate a component.

2. Another Ruler Orientation can be enabled by select the “+” icon shown below.

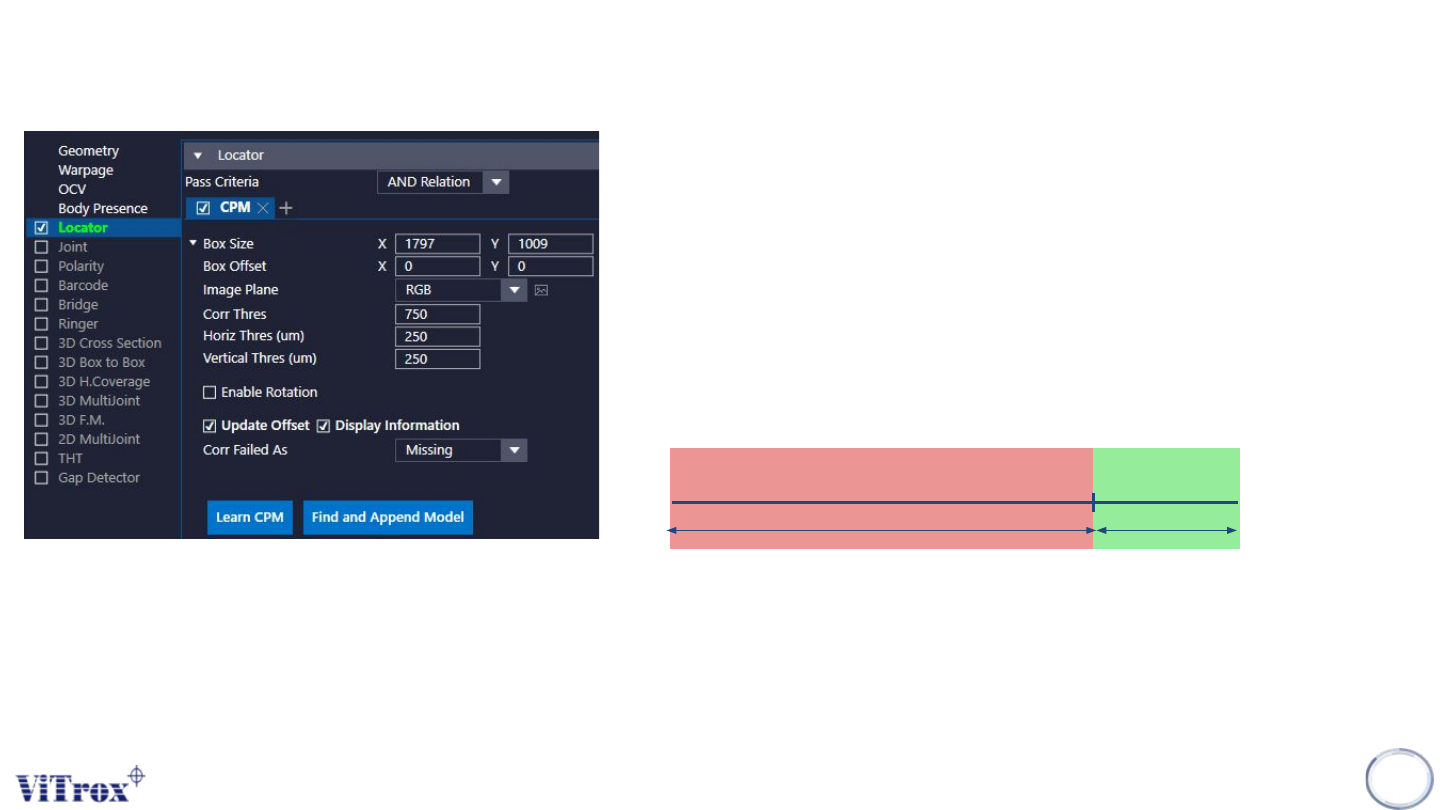

U-type Locator - CPM

170

a. Box Size & Box Offset

● To adjust the body size and body offset.

b. Image Plane

● These are the types of 2D Lighting. Select the one with having

highest contrast among interested inspection region and the

background.

c. Corr Thres

● This is the correlation threshold.

● Correlation also means as similarity score.

● For e.g. Corr thres set to 750

CorrThres

(75%)

PassFail

d. Horizontal & Vertical Threshold (um)

● Fail when the measured Horizontal & Vertical Offset from datum

exceed the Horizontal & Vertical Thres
