1. From the algorithms list, User may select the algorithm based on components category (C,R,B,S,U)

and component sizes.

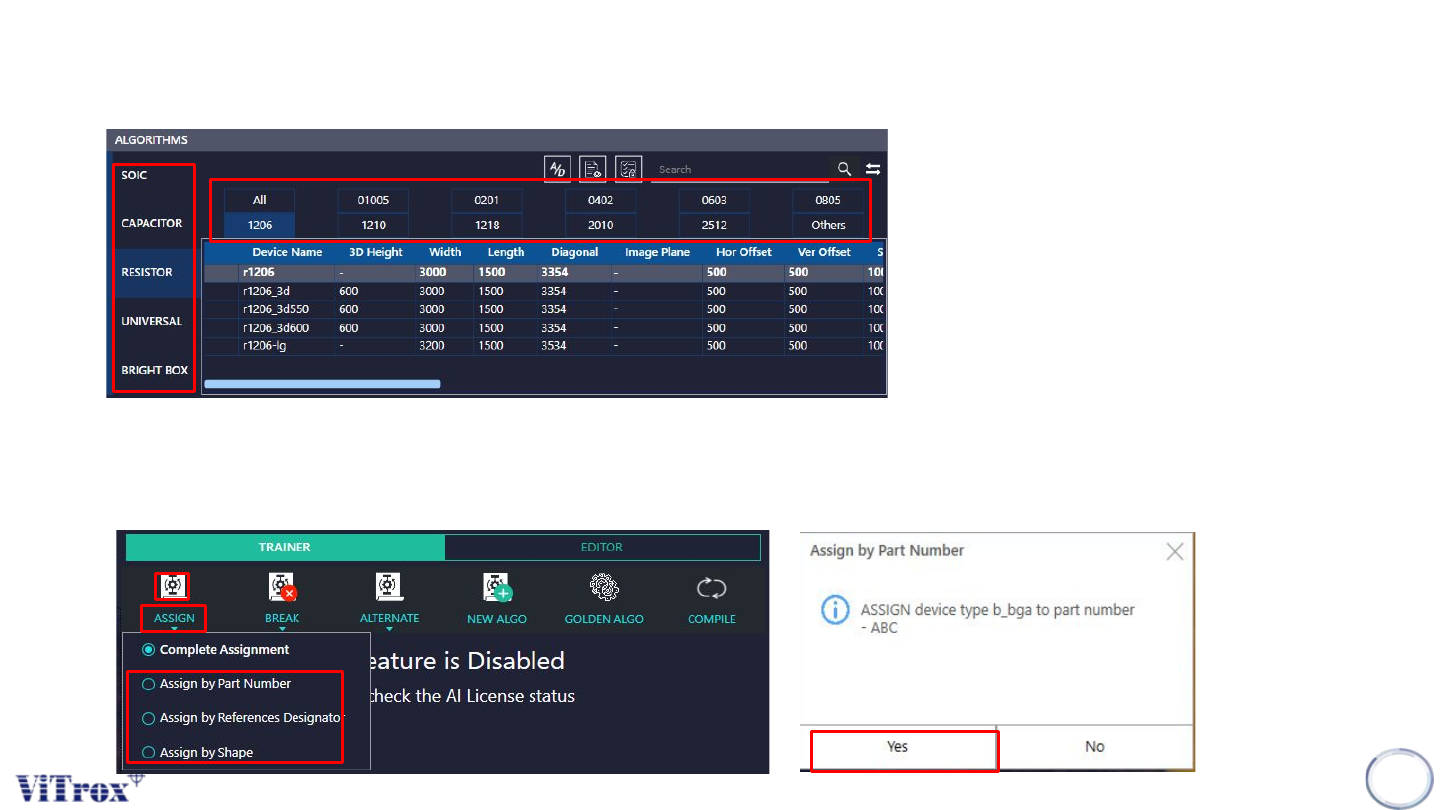

2. Select the algorithm that need to take as a template, place the mouse cursor at the “Assign”, Select

Assign by Part number, Ref Des or shape based on user and press on the icon.After that press on

“Yes.”

323

Assign a copied algorithm from

existing algorithm.

324

1. From the algorithms list, User may select the algorithm based on components category (C,R,B,S,U)

and component sizes.

2. Select the algorithm, place the mouse cursor at the “Assign”, Select Assign by Part number, Ref Des

or shape based on user. After that press on the icon.
