Copyright © ViT rox All Rights Reserved . 43 Polarity Inspection *Refer Common Algorithm in CR, B, S, U Algorithm
Copyright © ViTrox All Rights Reserved.
42

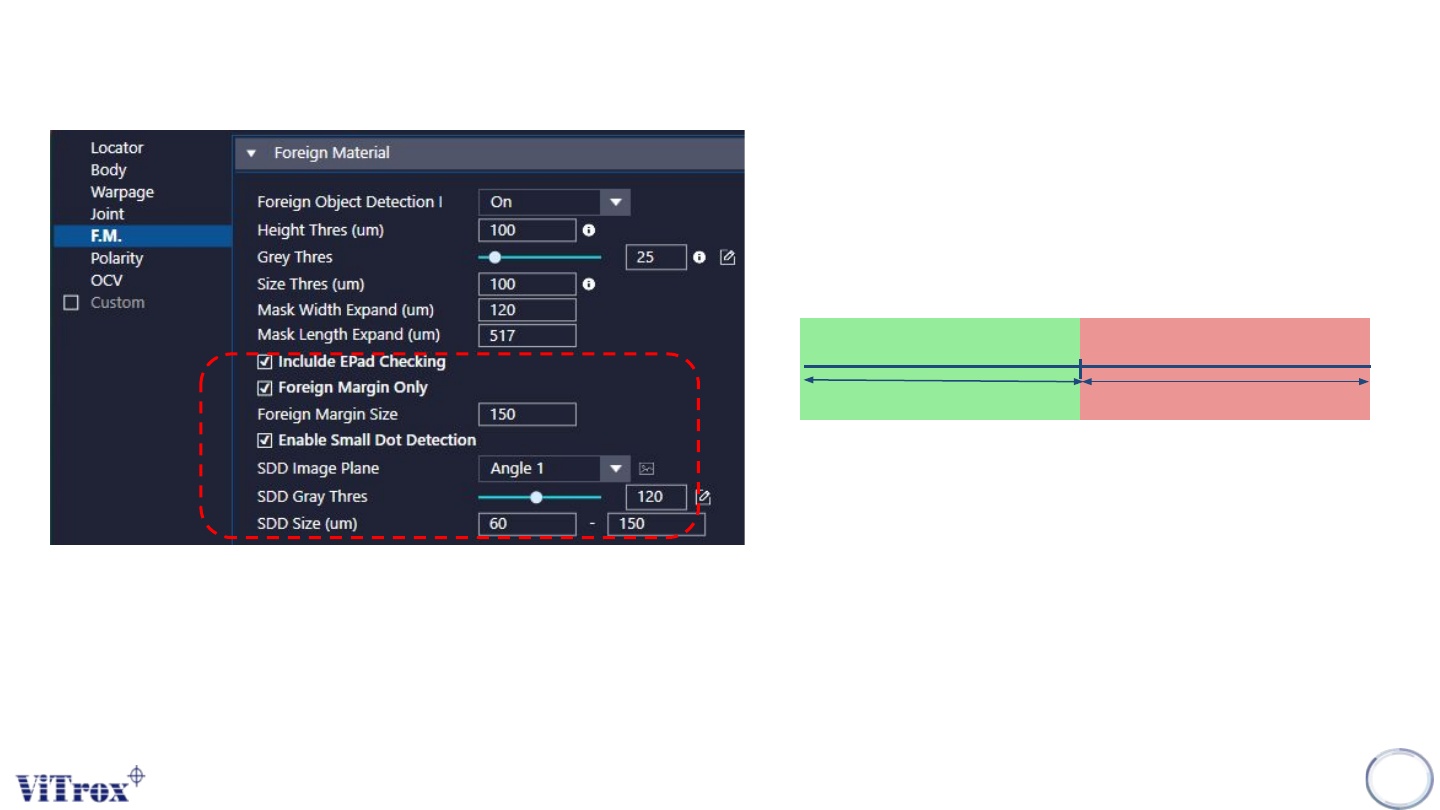

8. Enable Small Dot Detection
a. SDD Image Plane
● Select the one that having best contrast among the Joint Area
and background.
b. SDD Gray Thres
c. SDD Size (um)
● To adjust the minimum size to detect the defect.
Grey Thres
Pass
Fail
CR Type Algorithm - Foreign Material
Copyright © ViTrox All Rights Reserved.
43
Polarity Inspection
*Refer Common Algorithm in CR, B, S, U Algorithm
Copyright © ViTrox All Rights Reserved.
44
Body Marking Inspection (OCV)
*Refer Common Algorithm in CR, B, S, U Algorithm
