Generate Median Stack
Follow Locator
On: Use External Locator (Support CPM and Edge Locator only),
support rotation
Off: Use SDI Internal Locator, not support rotation
Generate Score
Set generate score to append ref des into median stack
In Follow Locator, both method will return a registration (similarity)
score. This can control the reliability of median stack
eg, if score too low it wont be added to the stack (learning)
Remarks:
a. If users select Follow Locator On, the
users must set up at least 1 CPM or Edge
Locator. If multiple locator is set, it will use
the final one
254
Copyright © ViTrox All Rights Reserved.
Learn Modal

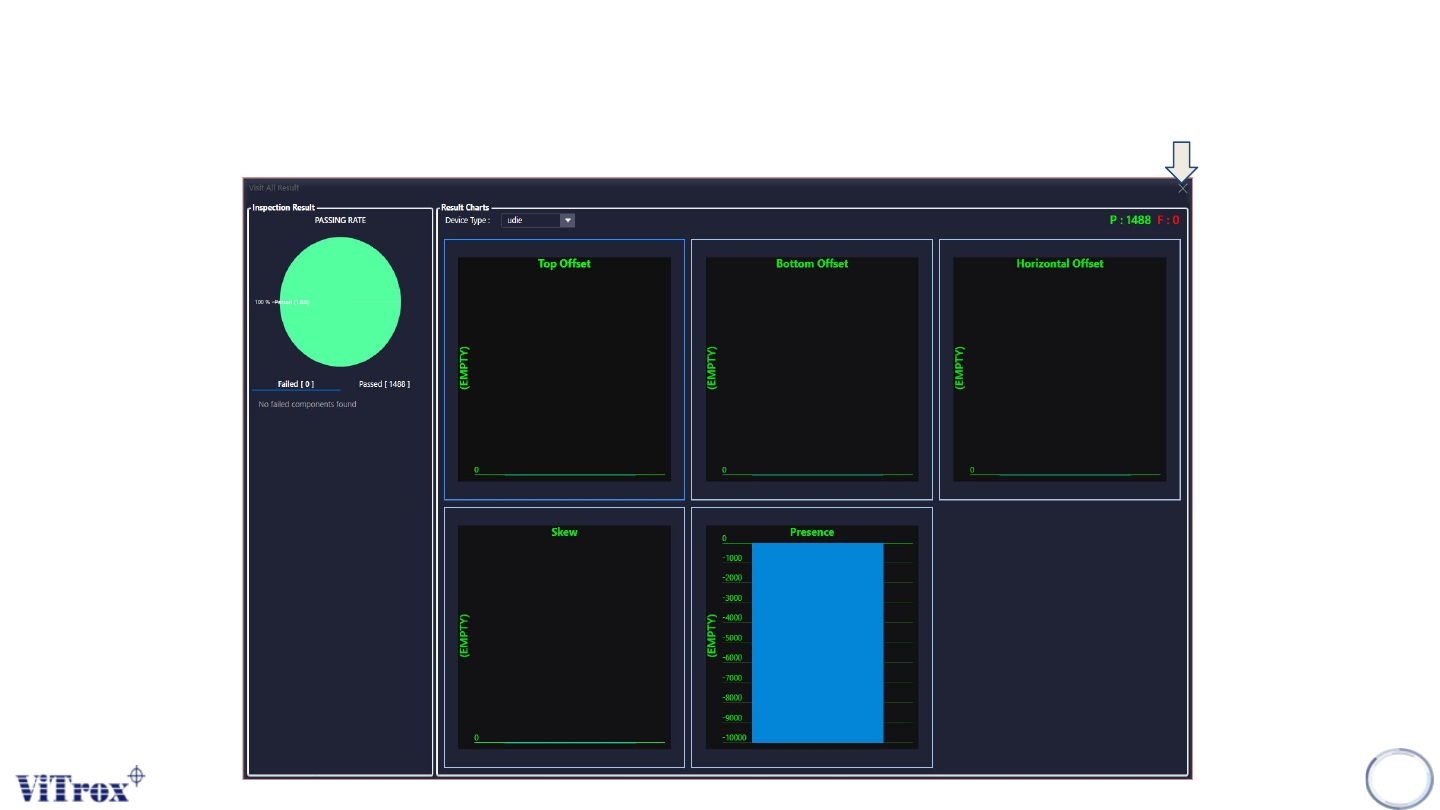

After generate median stack, a visit all window
will be prompt
255
Copyright © ViTrox All Rights Reserved.
Learn Modal
1. Click on “Learn Modal”
2. Prompt SDD GUI
3. Draw and AOI ROI
4. Exit SDD GUI
Remarks:
a. User exit SDD GUI without modifying
ROI will not trigger AOI to re-learn
modal
b. To trigger learn modal in AOI, user
would need to click save, modify ROI
content.
256
