Copyright © ViT rox All Rights Reserved . 150 Joint Bridging Inspection
Copyright © ViTrox All Rights Reserved.
149
1 2 3 4 5 6 7
End LeadsEnd Leads Central Leads
End Lead Thres
Threshold
Ringer
Test Value
Lead
Number
Defect
Defect
Threshold Sense: Low Bad

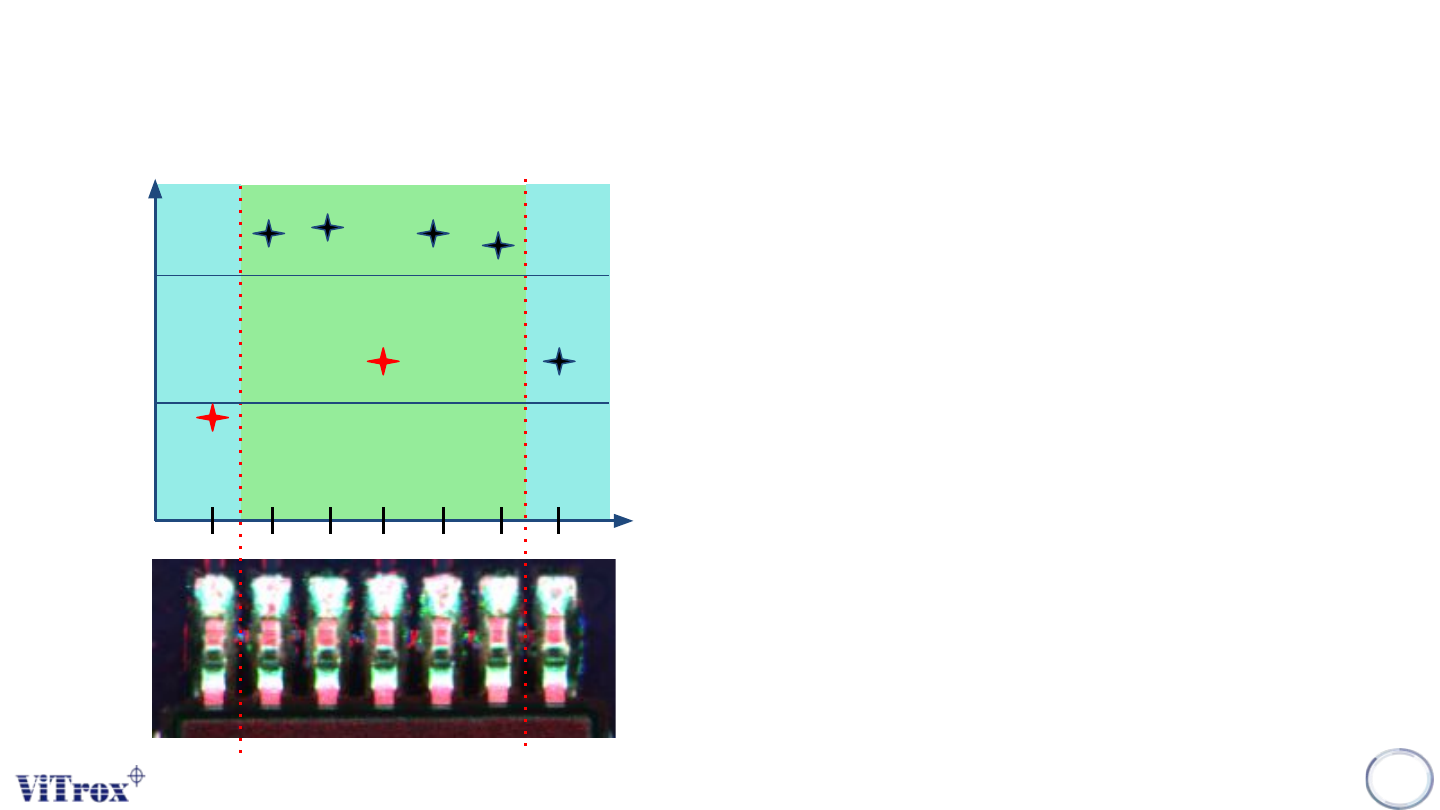

● Lead 7 (End Lead) is not failing although its below the
“Threshold” set. This is because lead 7 using “End Lead
Threshold”.
● Lead 4 (Central Lead) is failing because its below the
“Threshold” set.
● Lead 1 (End Lead) is failing because its below the “End
Lead threshold”.
Lead Ringer - Example for Low Bad Thres Sense
Copyright © ViTrox All Rights Reserved.
150
Joint Bridging Inspection
Copyright © ViTrox All Rights Reserved.

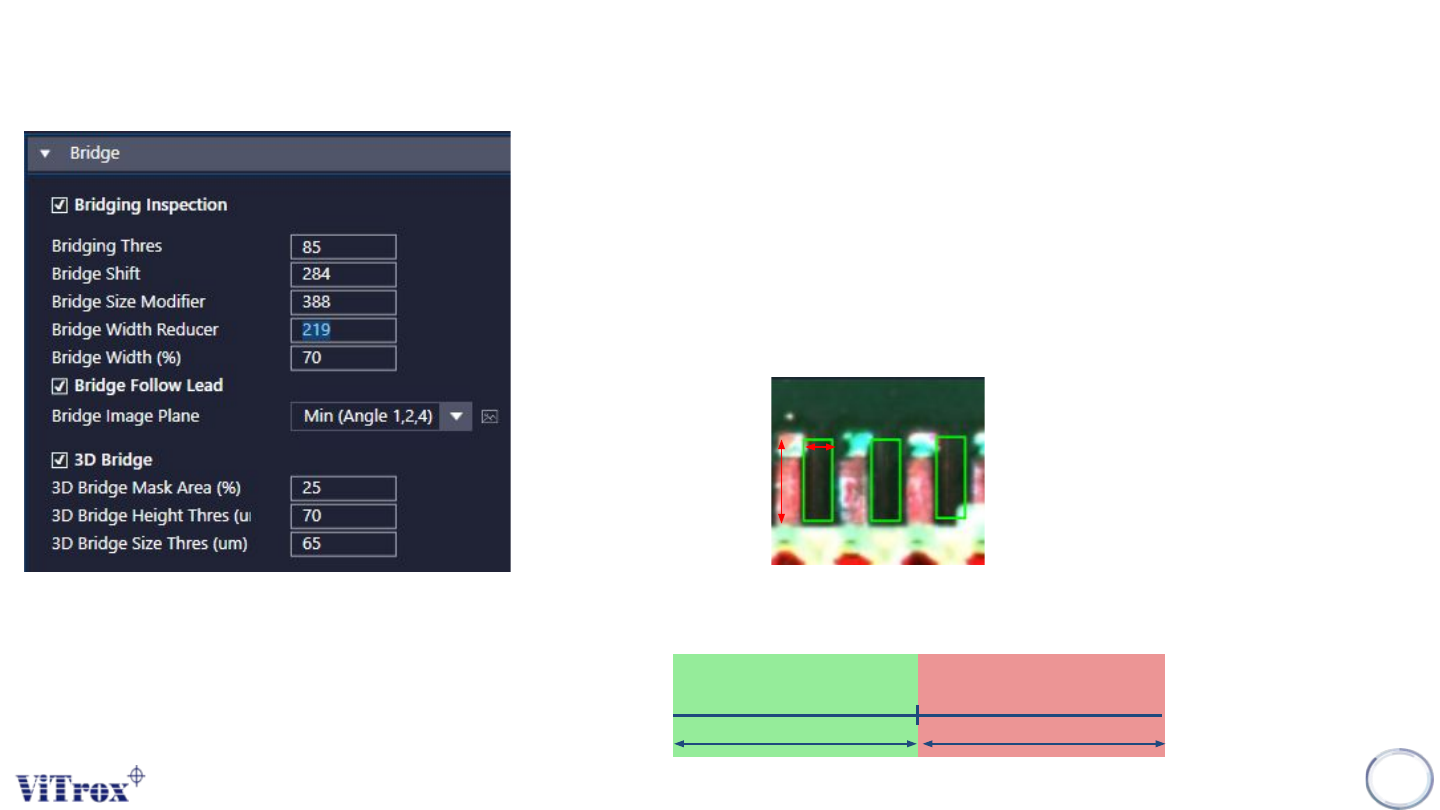

S-type Algorithm - Bridge
151
1. Bridging Inspection
● Tick to enable bridging inspection.
2. Bridge Shift
● To adjust the offset of bridging inspection boxes.
● Unit in um.
3. Bridge Size Modifier & Bridge Width Reducer
● To adjust the length & width for bridging inspection boxes.
Bridge
Width
Bridge
size
4. Bridge Width (%)
● To adjust the minimum width of the foreign material to fail as
bridging.
Bridge Width (%)
Pass Fail
