Copyright © ViT rox All Rights Reserved . 34 Solder Profile Qualification (um) ● Solder Profile analysis are segmented according to height with different criteria & qualifications. CR T ype Algorithm - Joint (Solder …
Copyright © ViTrox All Rights Reserved.
33
CR Type Algorithm - Joint (Solder Profile Inspection)
Copyright © ViTrox All Rights Reserved.
34
Solder Profile Qualification (um)
● Solder Profile analysis are segmented according to height with different criteria & qualifications.
CR Type Algorithm - Joint (Solder Profile Inspection)
Copyright © ViTrox All Rights Reserved.
35
CR Type Algorithm - Joint (Solder Profile Inspection)

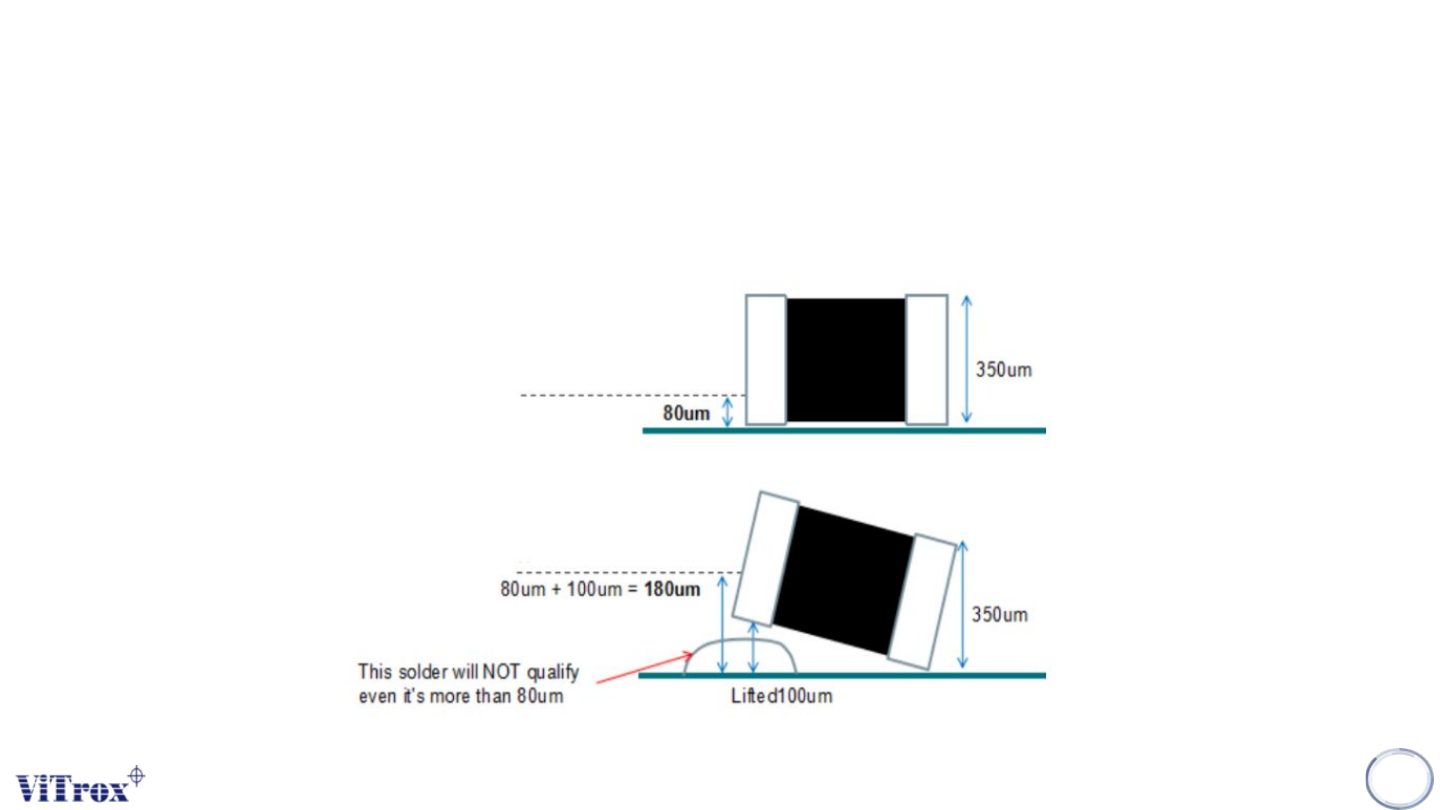

Solder Height Thres (um)
● It’s used to set the minimum height requirement for the solder joint.
● May vary when component body lifted happened.
Solder Height Thres (um)
Solder Height Thres (um)
(At body lifted condition)
