Copyright © ViT rox All Rights Reserved . 328 Algorithm Editor Designed to inspect and fine tune the algorithm t o preven t false c all & escapee.
Copyright © ViTrox All Rights Reserved.
327

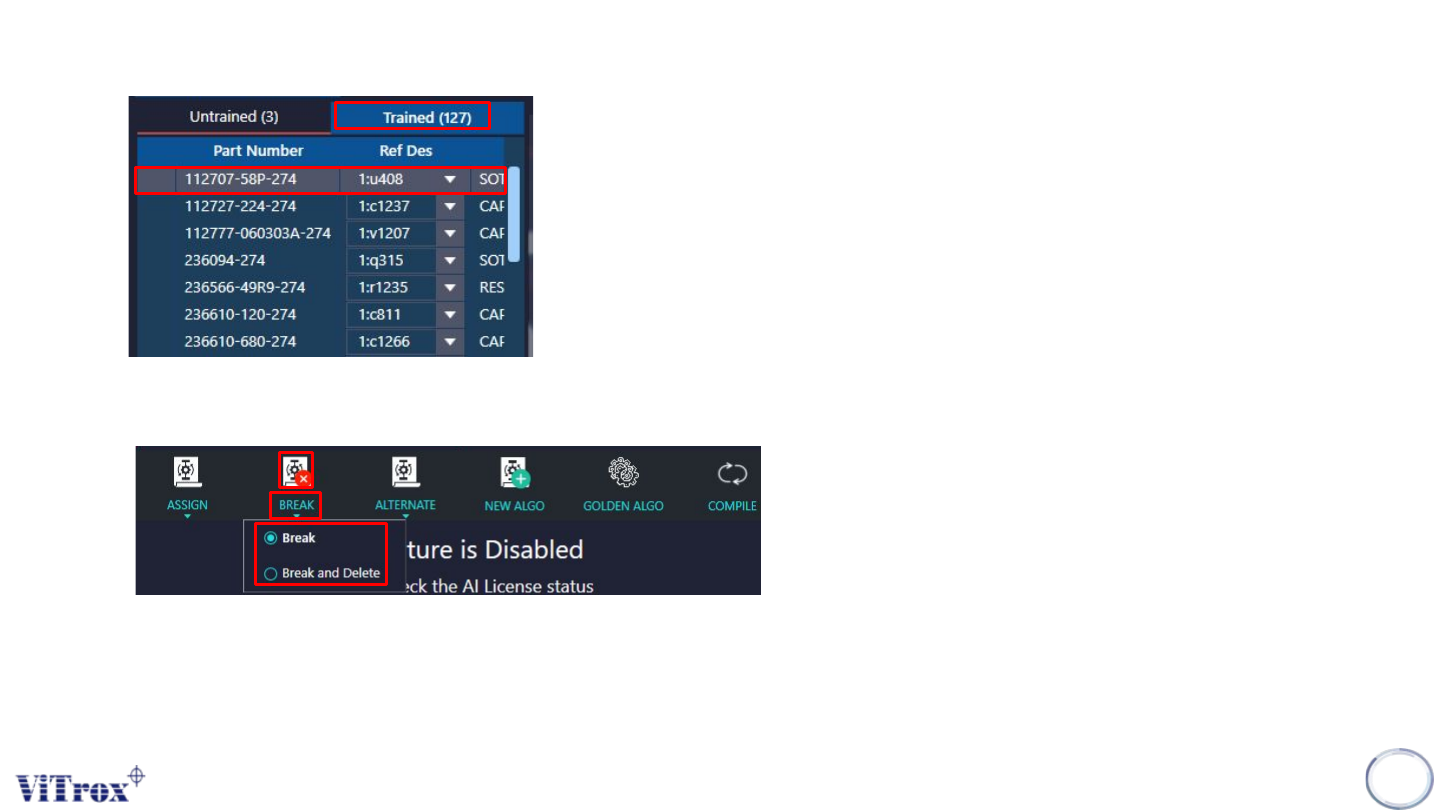

1. From the trained list, User may select the component part number that need to be untrain.
2. Select the part number, place the mouse cursor at the “Break”, Select “Break” or “Break & Delete”
based on user. After that press on the icon.
3
1
2
Copyright © ViTrox All Rights Reserved.
328
Algorithm Editor
Designed to inspect and fine tune the algorithm to prevent false call & escapee.
Copyright © ViTrox All Rights Reserved.
329
ROI ListComponent View
Inspection Result
Algorithm parameters
*ROI : Region of inspection
Editor Tools
