Warpage Compensation Algorithm

*Refer Common Algorithm in CR, B, S, U Algorithm

Joint Inspection Algorithm

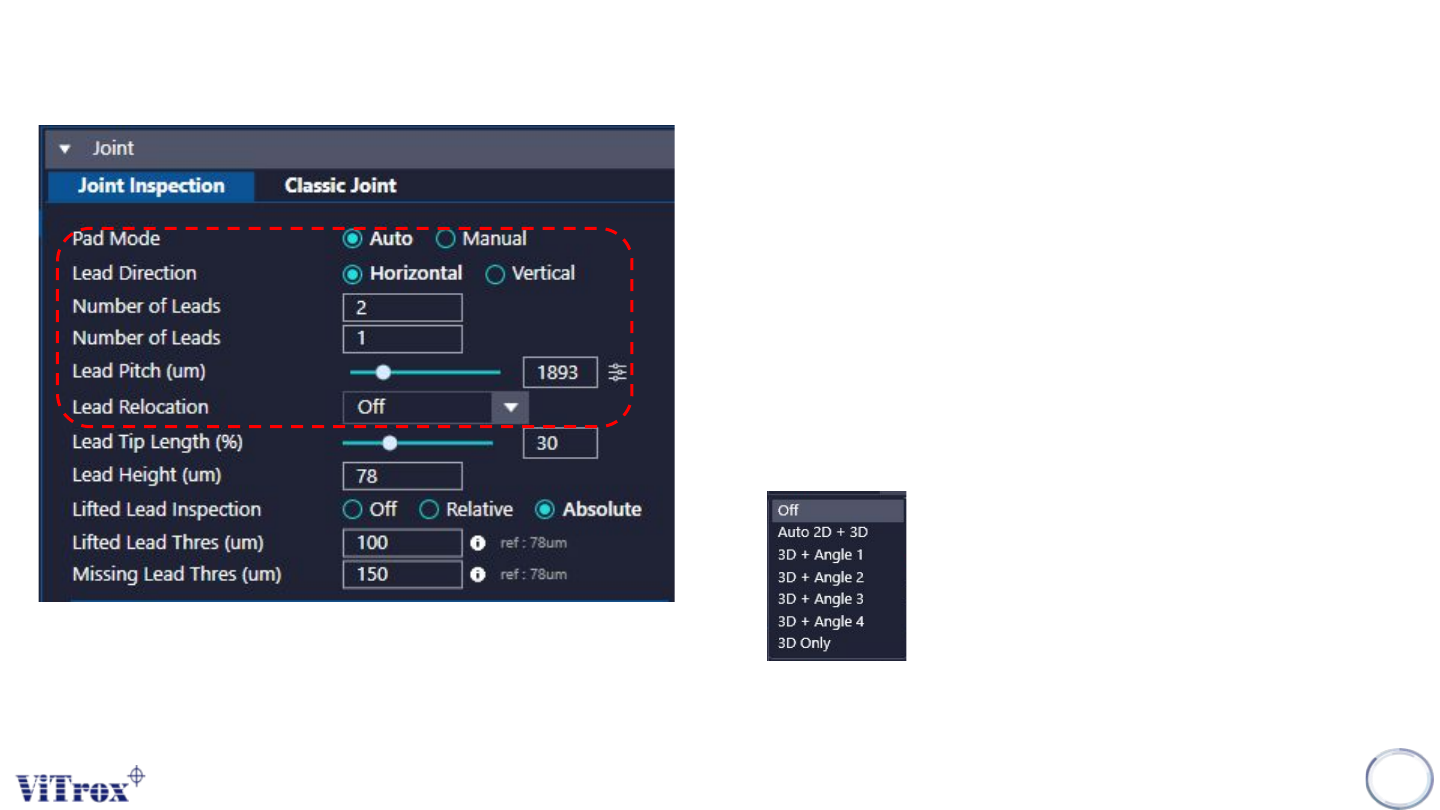

B-type Algorithm - Joint

1. Pad Mode

● Auto: Select this if you have epad & epin informations.

● Manual: Select this to self define the pad location.

2. Lead Direction

● To select the direction for lead .

● Either in horizontal or vertical.

3. Number of Leads

● To define the number of lead.

4. Lead Pitch

● To define the distance between 2 leads.

5. Lead Relocation

● Lead relocation is used to relocate the lead by using lead box

after locate body successfully.

● This feature will increase cycle time..
