3 Technical data and assemblies I nstruction manual SIPLACE SX1/S X2 Edition V2 and V3 3.5 Dimensions and weight From so ftware version SC.713.1 Edition 12/2020 112 3.5.3 Height of the fol ded up protective cover 3 Fig. …
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.5 Dimensions and weight
111
3.5.2 Dimensions
3.5.2.1 Dimensions of SX1/SX2 placement machine
3
Fig. 3.5 - 1 Dimensions of SX1/SX2 placement machine (1 component trolley inside, 1 component trolley outside)
3 Technical data and assemblies Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
3.5 Dimensions and weight From software version SC.713.1 Edition 12/2020
112
3.5.3 Height of the folded up protective cover
3

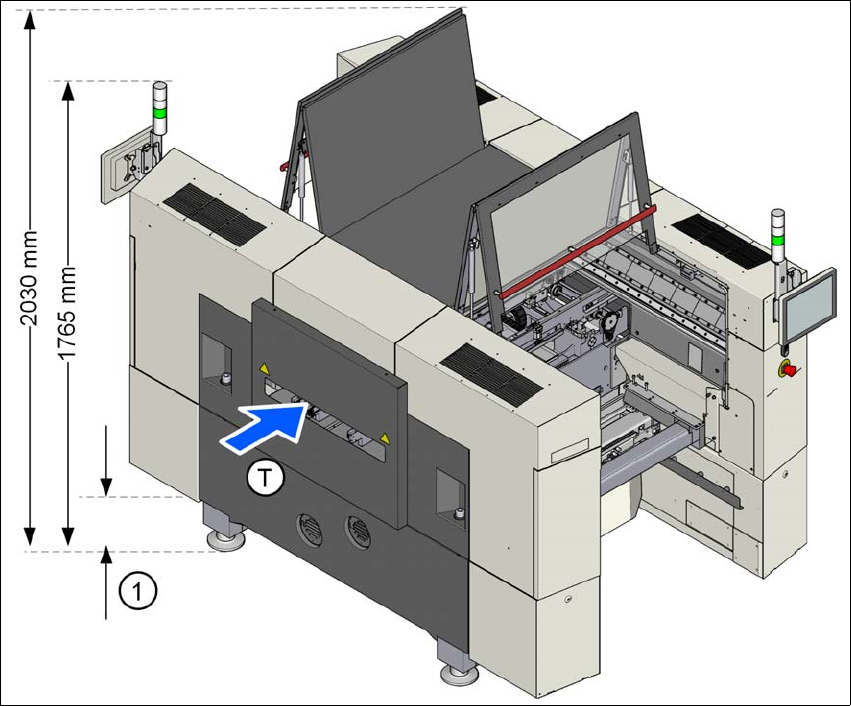

Fig. 3.5 - 2 Height of the folded-up protective cover - dimensions in millimeters
The specified dimensions refer to the max. PCB conveyor height of 950 mm.
(1) The height varies according to the set PCB conveyor height
– for PCB conveyor height 900 mm = 120 mm ± 15 mm
– for PCB conveyor height 930 mm = 150 mm ± 15 mm
– for PCB conveyor height 950 mm = 170 mm ± 15 mm
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.5 Dimensions and weight
113
3.5.4 Maneuvering distance for the component trolley on SIPLACE SX1/SX2
3

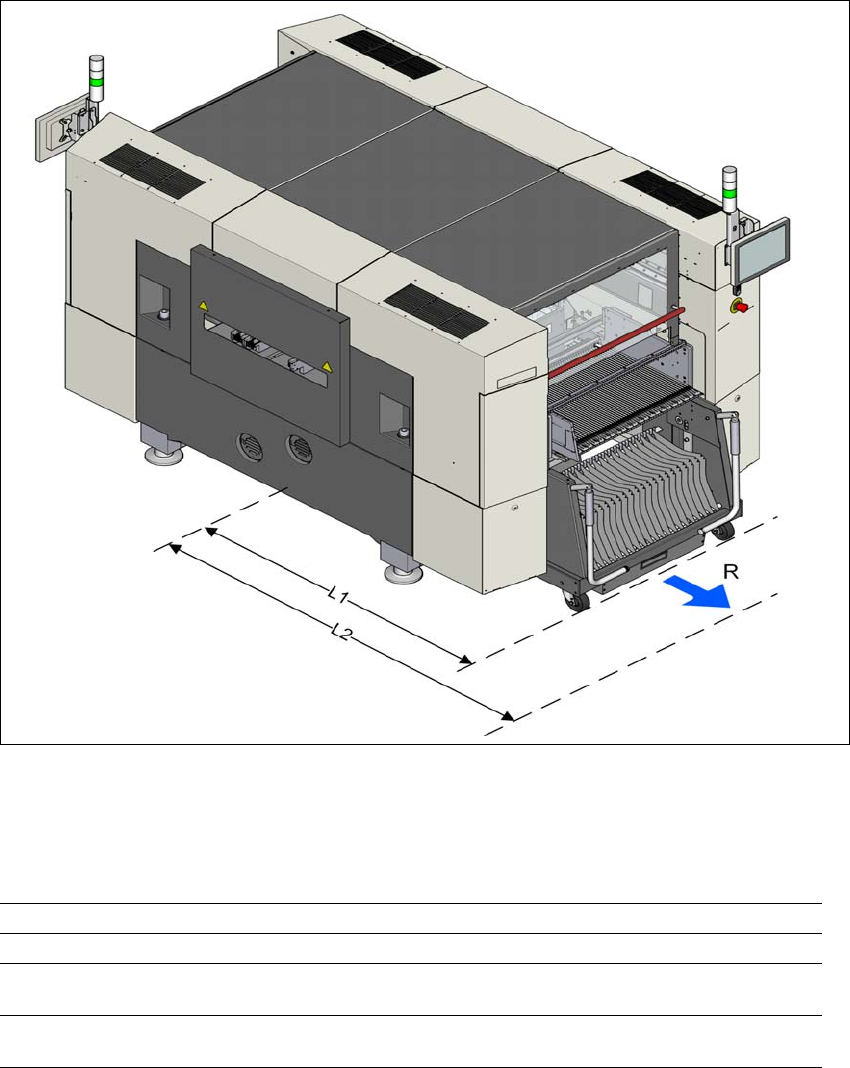

Fig. 3.5 - 3 Maneuvering distance for the component trolley on SX1/SX2 placement machines
The maneuvering radii "R" for the component trolley in SX1/SX2 placement machines is:
3
3
Location 1 (outside) Location 2 (inside)
Maneuvering radius R 760 mm 760 mm
Distance L1: Machine center to
outer edge of component trolley
1300 mm 1175 mm
Distance L2: Machine center to
wall
2060 mm 1935 mm
