Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies From software version SC.713.1 Edition 12/2020 3.7 Placement head 129 3 Fig. 3.7 - 6 SIPLACE MultiSt ar C PP - front view , function gr…
3 Technical data and assemblies Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
3.7 Placement head From software version SC.713.1 Edition 12/2020
128
3.7.5 SIPLACE MultiStar CPP
3
3
Fig. 3.7 - 5 SIPLACE MultiStar CPP - front view, function groups part 1
(1) Handle
(2) Star with 12 segments
(3) Segment with integrated DP drive
CAUTION
Always take hold of the handle to push the placement head
The placement head may only be moved by pushing manually against the handle provid-
ed.
(2)
(3)
(1)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 3 Technical data and assemblies
From software version SC.713.1 Edition 12/2020 3.7 Placement head
129
3
Fig. 3.7 - 6 SIPLACE MultiStar CPP - front view, function groups part 2
(1) Component camera C&P, type 30 GigE
(2) Torque motor for star drive
(3) Z drive (linear motor)
(4) Return cylinder
(5) Pressure control valve
(1)
(2)
(3)
(4)
(5)
3 Technical data and assemblies Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
3.7 Placement head From software version SC.713.1 Edition 12/2020
130
3

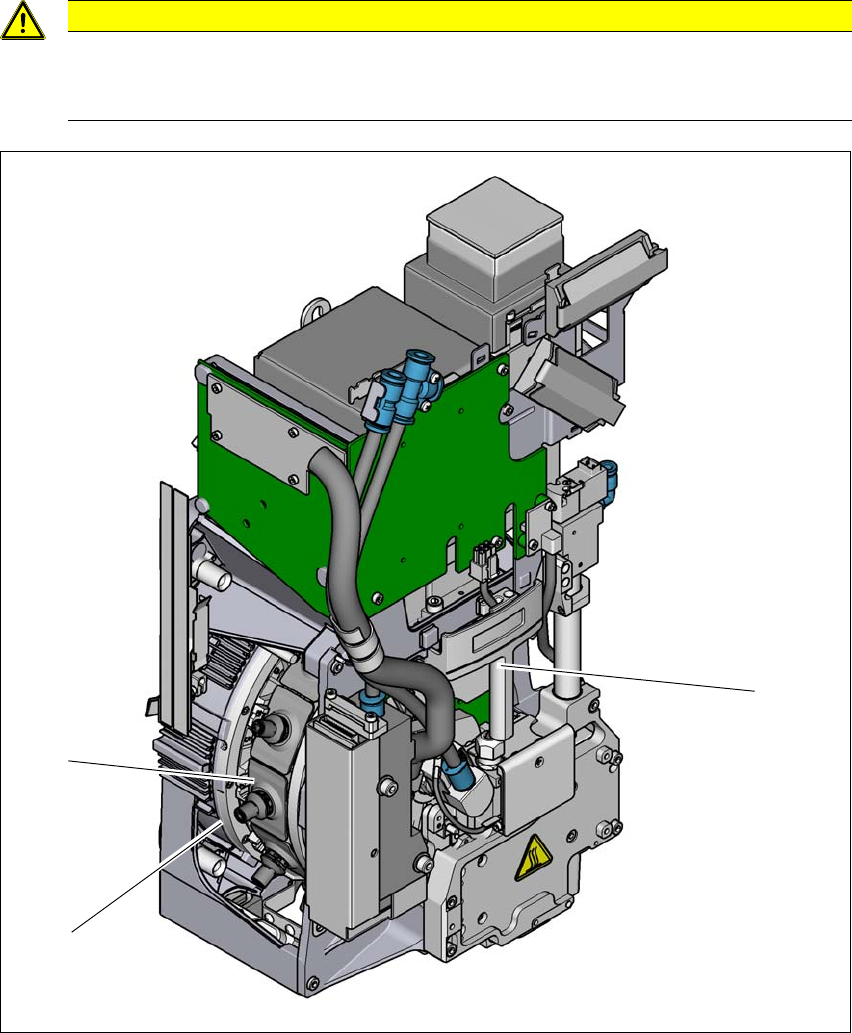

Fig. 3.7 - 7 SIPLACE MultiStar CPP - back view, function groups part 3
(1) Component sensor
(2) Assembly position for component height of up to 15,5 mm
(3) Assembly position for component height of up to 6 mm
(3)
(2)
(1)
