6.1.3.4 Nozzle changer "row 2" for the SIPLACE MultiStar
Item no. 00519842-xx Nozzle changer CPP for row 2 , SX
The "row 2" nozzle changer may be installed at the following locations:
SX placement machine: Locations 1 and 2
The retrofit package contains an assembly kit.
6

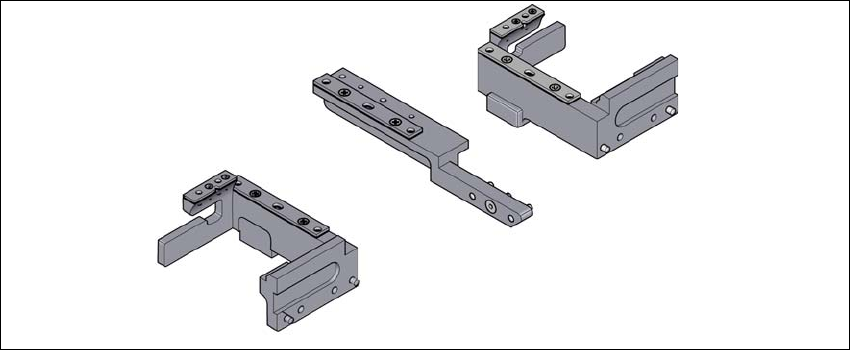

Fig. 6.1 - 9 Assembly kit for the "row 2" nozzle changer
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.1 Nozzle changer From software version SC.713.1 Edition 12/2020
302
6.1.4 Nozzle changer for the SIPLACE TwinStar
Item no. 03005191-xx Magazine for 2 nozzles
Item no. 03001807-xx Magazine for 1 nozzle
6

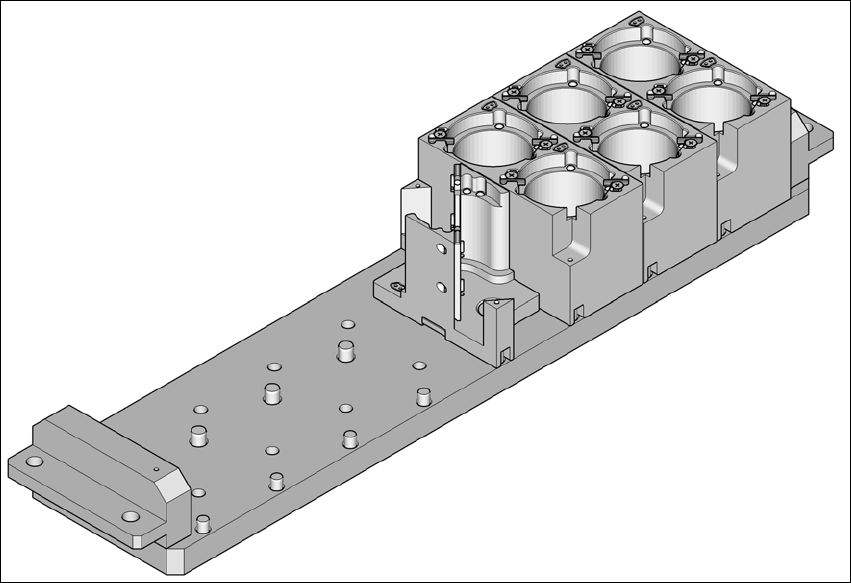

Fig. 6.1 - 10 Nozzle changer for the SIPLACE TwinStar
6.1.4.1 Description
This nozzle changer can accommodate up to 12 nozzle magazines. There are two different mag-
azine types available: standard magazines and magazines for special nozzles or grippers. The
magazines are seated on a common support. They are centered with two parallel pins and fixed
in place with two countersunk screws.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.1 Nozzle changer
303
6.1.4.2 Technical data
6
6
Nozzle changer for the SIPLACE TwinStar
Number of magazines Max. 8 magazines for 16 nozzle garages
Number of nozzle holders may be freely configured
Standard configuration 3 magazines with two nozzle garages each
1 magazine with one nozzle garage
Nozzle types 4 xx with adapter
5xx (standard)
9 xx with adapter
Special nozzle, gripper
