2.3 Classification of camera systems
2.3.1 Classification of the whole machine
2
2.3.1.1 Laser classification
The following modules are assigned to risk class 2:
2
The following modules are assigned to laser class 3B:
2
The ready-for-operation placement machine is assigned to risk class 2.
The risk classes are determined according to IEC 60825-1:2014.
Assembly Data
Component sensor on SpeedStar Maximum optical output power: < 1 mW
Wavelength: 635 nm
Component sensor on MultiStar CPP Maximum optical output power: < 1 mW
Wavelength: 635 nm
Laser light barrier on PCB conveyor Maximum optical output power: < 1 mW
Wavelength: 650 nm
1D board barcode reader
(Datalogic DS1500)
Maximum optical output power: --
Wavelength: 658 nm
Assembly Data
3D coplanarity laser module Maximum optical output power: 60 mW
Wavelength: 670 nm
See also section 6.7
3D coplanarity laser module,
page 322
.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.3 Classification of camera systems
65
2.3.2 Classification of the camera systems
2.3.2.1 Camera types with bright LEDs - risk group 1
The bright LEDs are fitted in the following cameras. These are classified as risk group 1, according
to IEC 62741:.
– Component camera types 30 and 45 for SIPLACE MultiStar (CPP)
– Component camera types 23 and 41 for SIPLACE SpeedStar (C&P20 P)
– Stationary camera types 25 and 33 for SIPLACE MultiStar (CPP) and SIPLACE TwinStar
– PCB camera, type 28
2
2.3.2.2 Camera types with blue LEDs - risk group 2
The ultra-bright blue LEDs are fitted in the following cameras. These are classified as risk group
2, according to IEC 62741:.
– Component camera type 48 for SIPLACE SpeedStar (C&P20 P2)
2
PLEASE NOTE
Risk group 1
Do not look into the beam of the ready-for-operation camera!
2
Risk group 2
The beam from cameras with
ultra-bright blue LEDs can be a haz-
ard.
Do not look into the beam of the ready-for-operation camera!
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.4 Safety instructions for transporting the placement machine From software version SC.713.1 Edition 12/2020
66
2.4 Safety instructions for transporting the placement
machine
2

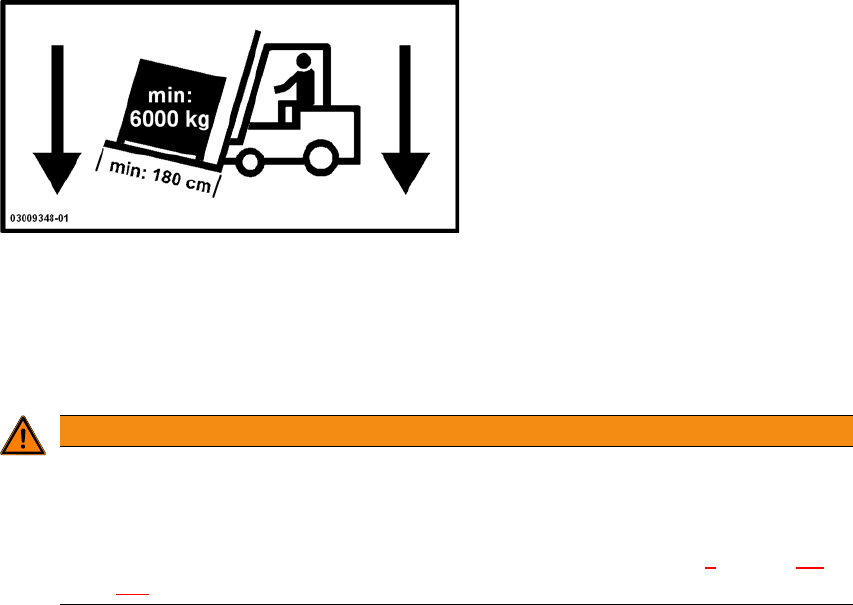

Use a fork-lift truck with the following specification to carry the placement machine:
Fork length: Min. 1800 mm
Carrying power: Min. 6,000 kg
Clear width between forks: Min. 350 mm
2
2
WARNING
Risk of tilting!
Risk of tilting, if the required specifications for the fork-lift truck are not observed.
Only use the specified fork-lift for transportation.
Correct transportation of the placement machine is described in chapter 4
, section 4.1,
page 183
.
