Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operation al safety From software version SC.713 .1 Edition 12/2020 2.2 Warning labels 41 Fig. 2.2 - 2 Warning labels on the placement machine - location 2 Item W 02…
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
40
2.2.1 Warning labels on the placement machine (default label)
Fig. 2.2 - 1 Warning labels on the placement machine - location 1
Item W 002, item no. 03155798-01
Item W 024, item no. 03155346-01
Item W 210, item no. 03233439-01
Item W 012, item no. 03155378-01
Item W laser class 2, item no. 03155298-01
(T) Direction of PCB transport
W 210
W 024
M 002
W 012
W 024
W laser class 2
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 2 Operational safety
From software version SC.713.1 Edition 12/2020 2.2 Warning labels
41

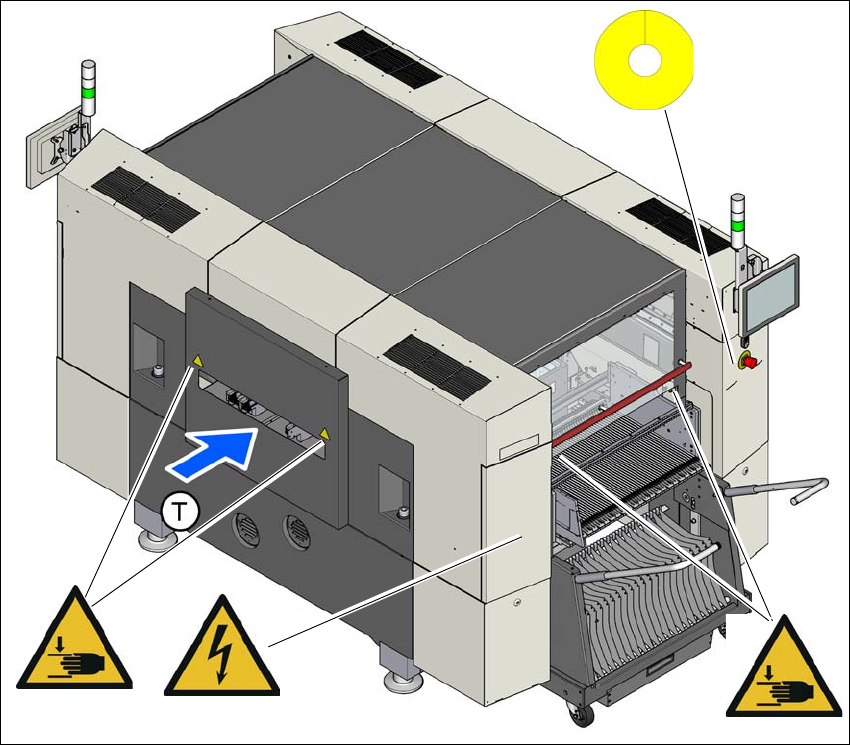

Fig. 2.2 - 2 Warning labels on the placement machine - location 2
Item W 024, item no. 03155346-01
Item W 210, item no. 03233439-01
Item W 012, item no. 03155378-01
(T) Direction of PCB transport
W 024
W 210
W 024
W 012
2 Operational safety Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
2.2 Warning labels From software version SC.713.1 Edition 12/2020
42
2.2.2 Meaning and description of warning labels (default labeling)
2.2.2.1 Information sign M002
2
Item M 002 in fig. 2.2 - 1, page 40, item no. 3155798-01 or
Item M 002 in fig. 2.2 - 3
, page 44, item no. 3155798-01
(Quantity per placement machine: 1)
2.2.2.2 Warning label laser class 2
2
Item W Laser class 2 in fig. 2.2 - 1, page 40, item no. 03155298-01
(Quantity per placement machine: 1)
2
2
2
2
2
2
2
2
Safe operation of placement machine
Safe operation of the placement machine depends absolutely on
the operator being familiar with the instruction manual and safety
instructions and putting them into effect.
2
2
2
LASER RADIATION
Laser class 2
Acc. to IEC 60825-1:2014
Do not look into beam!
