5 Tasks at the placement machine Instruction manual SIPLACE SX1/ SX2 Edition V2 and V3 5.10 Setting up the feeder modules From software version SC.713. 1 Edition 12/2020 274 Pull the cover foil at the side o f the pick…
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.10 Setting up the feeder modules
273
5

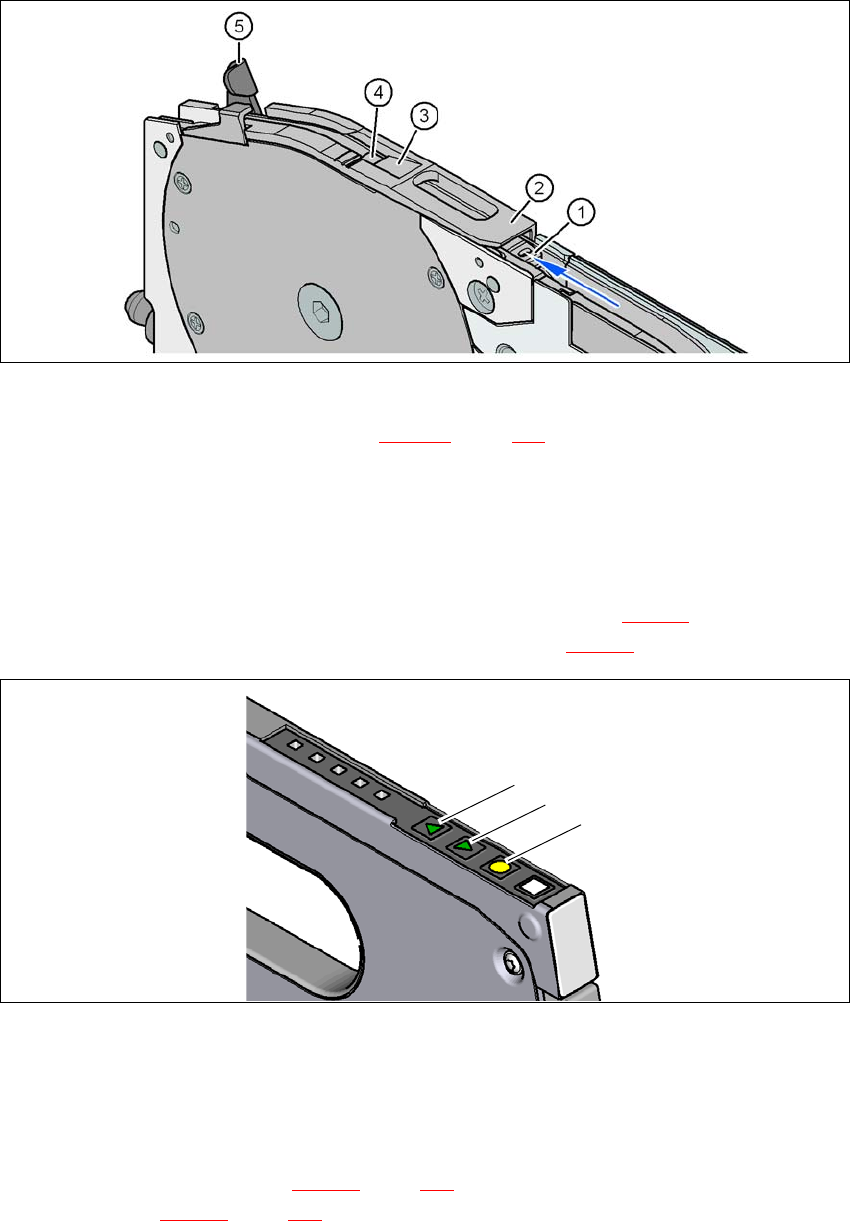

Fig. 5.10 - 5 Pickup window on the tape feeder module
(1) Tape support, removable (see section 5.10.4.4, page 275)
(2) Pickup window
(3) Removal edge for the cover foil
(4) Component pickup area
(5) Lever for raising and latching the pick-up window
On the operator panel, press the FORWARD button (item 1 in fig. 5.10 - 6) until the bend of
the cover foil is in the component pickup area (item 4 in fig. 5.10 - 5
).
5
Fig. 5.10 - 6 Operating panel with LED display
(1) FORWARD button for moving the component tape forward
(2) BACK button for moving the component tape back
(3) FOIL button for tensioning the cover foil
Push the lever (item 5 in fig. 5.10 - 5, page 273) forward in order to raise the pickup window
(item 2 in fig. 5.10 - 5
, page 273) into the first latching position.
(1)
(2)
(3)
5 Tasks at the placement machine Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
5.10 Setting up the feeder modules From software version SC.713.1 Edition 12/2020
274
Pull the cover foil at the side of the pick-up window forward and out underneath the pick-up
window.
Fold the cover foil back until it lies against the pull-off edge (item 3 in fig. 5.10 - 5, page 273).
5
Push the lever (item 5 in fig. 5.10 - 5, page 273) back to lower the pickup window.
Guide the cover foil over the cover foil rocker (item 2 in fig. 5.10 - 7) until it reaches the foil
packing wheels (item 1 in fig. 5.10 - 7
).
5
Fig. 5.10 - 7 Guiding the cover foil to the foil packing wheels
(1) Cover foil packing wheels
(2) Cover foil
5
On the operator panel, press the FOIL button (item 3 in fig. 5.10 - 6, page 273) until the cover
foil is tensioned. The cover foil rocker points down and stops the drive motor.
Cut the component tape flush with the front end of the feeder module.
PLEASE NOTE
Do not lower the pick-up window until the cover foil is lying against the pull-off edge.
(1)
(2)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 5 Tasks at the placement machine
From software version SC.713.1 Edition 12/2020 5.10 Setting up the feeder modules
275
5.10.4.4 Splice sensors
Splice sensors can be retrofitted to the SIPLACE SmartFeeder.
SIPLACE SmartFeeders with a splice sensor already installed can also be supplied (see section
3.10
, from page 155).
5.10.5 Configuring components on the SIPLACE Smart Feeder
The operation and setting up is described in the SIPLACE SmartFeeder X /Xi job guides.
