Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning From software version SC.713.1 Edition 12/2020 4.2 Infrastructure at the in stallation location 199 4.2.3.5 Mains connection - mains con…
4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
4.2 Infrastructure at the installation location From software version SC.713.1 Edition 12/2020
198
Run the mains power cable through the cable fixture (item 2) to the connection terminal X94
(
item 1). 4.2 - 4, page 197.
Make sure that the bending radius is adequate. The wires must not be kinked.
Crimp a ferrule onto each end of the mains connection cable.
Connect L1,L2, L3, N and PE to the mains connection terminals X94 (item 1) in fig. 4.2 - 4,
page 197
. Make sure that the connection terminal is not damaged when you insert the wire
into it.
4
Hand-tighten the cable fixture (item 2) in fig. 4.2 - 4, page197.
Make sure that the wires and the cable can not rub against anything or get trapped. Fix the
wires and cables into place with cable ties, if needed.
CAUTION
Pay attention to correct phase sequence!
Pay attention to correct phase sequence. Incorrect phase sequence could lead to mal-
functions and cause damage to the vacuum pump! Check the vacuum pump (s) for cor-
rect direction of running when putting the placement machine into action.
Check the PE connection on the placement machine for correct function.
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 4 Setting up and commissioning
From software version SC.713.1 Edition 12/2020 4.2 Infrastructure at the installation location
199
4.2.3.5 Mains connection - mains connection cable WITH plug (configuration 2)
The placement machine is supplied with an approx. 5 m mains connection cable WITH a CEE
plug, red 16 A (in accordance with IEC 60309).
4
4

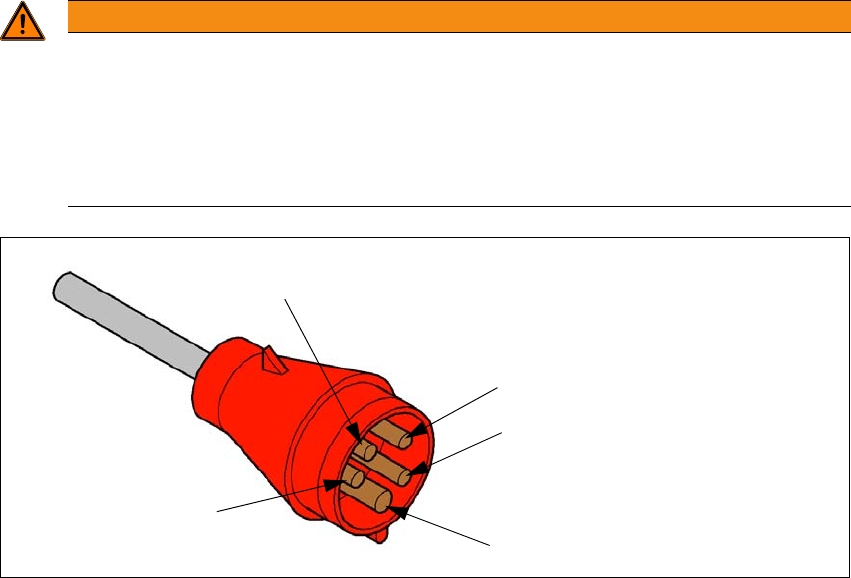

Fig. 4.2 - 5 Assignment in the CEE plug
WARNING
The mains connection cable may only be connected by a qualified electrician.
The mains connection cable may only be connected by a qualified electrician. A qualified
electrician is a person with suitable professional qualifications, knowledge and experi-
ence, who is able to recognize hazards caused by electrical power and also prevent
these hazards from arising.
The regulations of the country in which the placement machine is operated apply.
PE
L1
L2
L3
N
4 Setting up and commissioning Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
4.2 Infrastructure at the installation location From software version SC.713.1 Edition 12/2020
200
4.2.3.6 Mains connection - mains connection cable WITHOUT plug (configuration 3)
The placement machine is supplied with an approx. 5m mains connection cable WITHOUT plug.
4
4
Fig. 4.2 - 6 Description of wires in the mains power cable
WARNING
The mains connection cable may only be connected by a qualified electrician.
The mains connection cable may only be connected by a qualified electrician. A qualified
electrician is a person with suitable professional qualifications, knowledge and experi-
ence, who is able to recognize hazards caused by electrical power and also prevent
these hazards from arising.
The regulations of the country in which the placement machine is operated apply.
1 = (L1): three-phase
2 = (L2): three-phase
3 = (L3): three-phase
4 = (N): neutral conductor
green/yellow = (PE): conductor
