6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.4 Waffle pack changer (WPC5/WPC6) From software version SC.713.1 Edition 12/2020
312
6.4.5.2 Electrical ratings
6
6.4.5.3 Permitted environmental factors
6
Supply voltage 3 x 200 V~ ± 5 %; 50/60 Hz (Japan)
3 x 208 V~ ± 5 %; 50/60 Hz (U.S.A)
3 x 230 V~ ± 5 %; 50/60 Hz
3 x 380 V~ ± 5 %; 50/60 Hz
3 x 400 V~ ± 5 %; 50/60 Hz (Europe)
3 x 415 V~ ± 5 %; 50/60 Hz
Nominal apparent power 1.5 kVA
Nominal active power 1.0 kW
Room temperature Between 15°C and 35°C
Atmospheric humidity 30 - 75%
(no higher than 45% on average to prevent any possibility
of condensation on the waffle pack changer.)
Instruction manual SIPLACE SX1/SX2 Edition V2 and V3 6 Station extensions
From software version SC.713.1 Edition 12/2020 6.4 Waffle pack changer (WPC5/WPC6)
313
6.4.6 Maneuvering radii for WPC5/WPC6
6

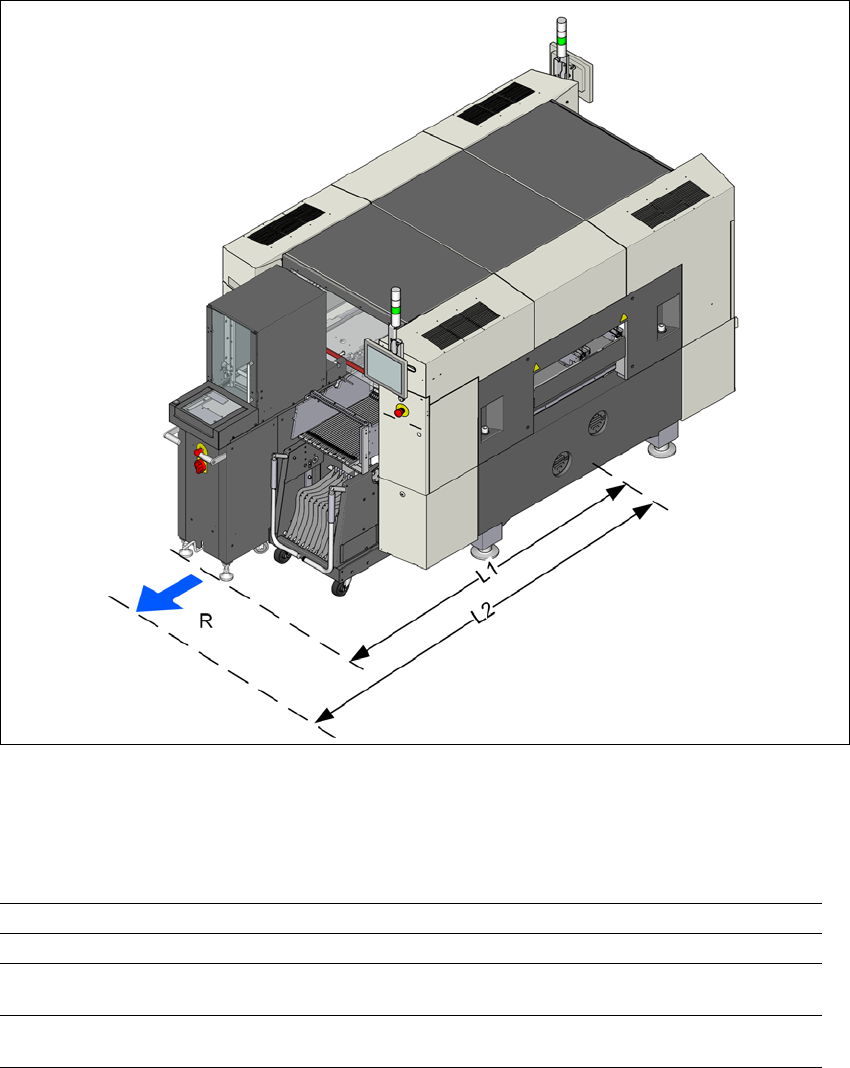

Fig. 6.4 - 2 Maneuvering radii for WPC5/WPC6 on SX1/SX2 placement machines
The maneuvering radii R for the WPC5/WPC6 on SX1/SX2 placement machines are:
6
Location 1 Location 2
Maneuvering radius R 750 mm 750 mm
Distance L1: Machine center to
WPC outer edge
1860 mm 1860 mm
Distance L2: Machine center to
wall
2610 mm 2610 mm
6 Station extensions Instruction manual SIPLACE SX1/SX2 Edition V2 and V3
6.4 Waffle pack changer (WPC5/WPC6) From software version SC.713.1 Edition 12/2020
314
6.4.7 Installation notes for WPC5/WPC6
The WPC5/WPC6 can be docked onto the left side (at location 1 or location 2) of the SX placement
machine.
6.4.8 Dimensions with WPC5/WPC6
6

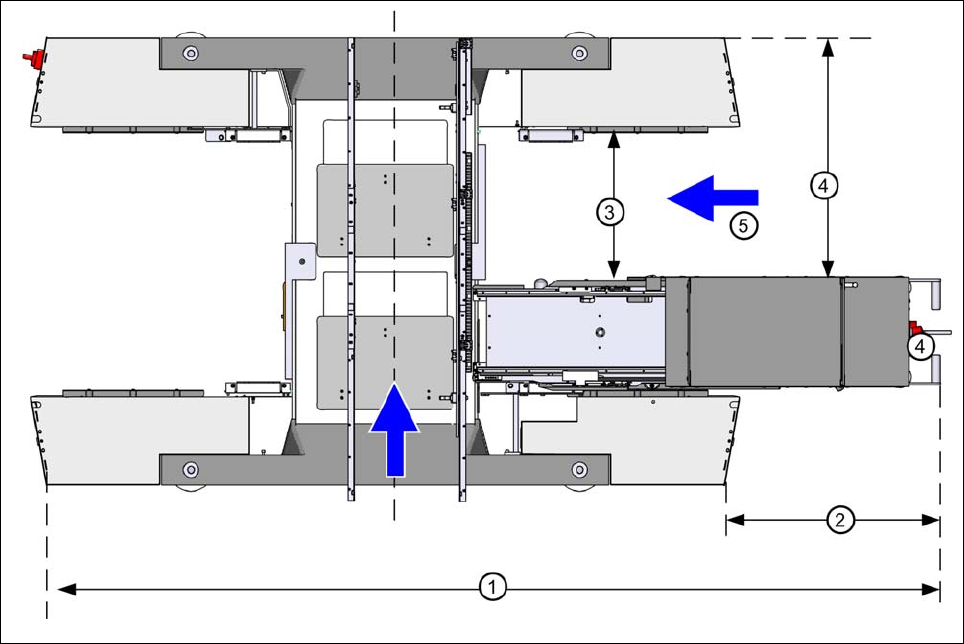

Fig. 6.4 - 3 Dimensions of SX placement machine with WPC5/WPC6
(1) 3000 mm
(2) 700 mm
(3) 445 mm
(4) 769 mm
(5) Location for component trolley with 30 tracks
